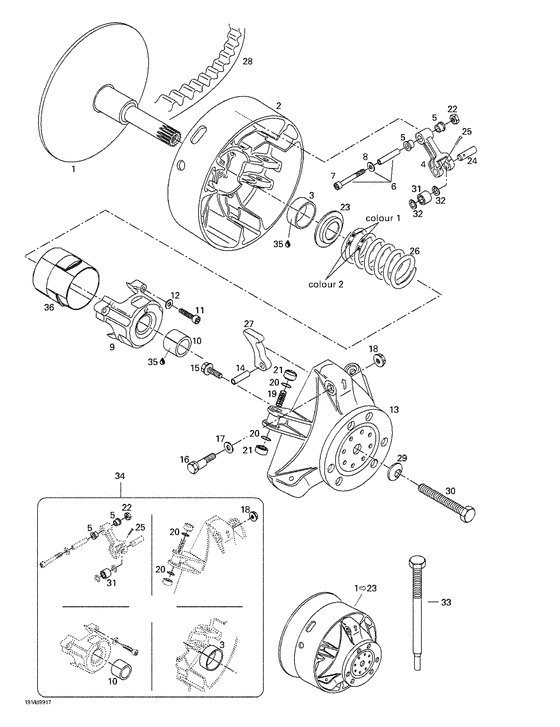

05- drive pulley Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
417222154
Poulie motrice *pulley-drive
MXZ 600.; |
417222154 |
— | ||
|
|
415015300 Ressort *springMXZ 600.; |
415015300 |
US $47.75 |
||
|
|
417222160
Flasque fixe us*flange-fix.ma.
MXZ 600.; |
417222160 |
— | ||
| replacement | |||||
|
|
417222411 Flasque fixe us*flange-fix.ma.MXZ 600.; |
417222411 |
from US $495.69 |
||
|
|
417005281
Rampe 281 *ramp-281
MXZ 600.; |
417005281 |
— | ||
|
|
417222049
Flasque coul.as*flange-slid.as
MXZ 600.; |
417222049 |
— | ||
| replacement | |||||
|
|
417222241
Flasque coul.as*flange-slid.as
MXZ 600.; |
417222241 |
— | ||
|
|
417005800
Glissiere *shoe-slider
MXZ 600.; |
417005800 |
— | ||
| replacement | |||||
|
|
417223021 Glissiere *shoe-sliderMXZ 600.; |
417223021 |
from US $7.96 |
||
|
|
417004700
Cuvette regul.a*govern.cup assy.
MXZ 600.; |
417004700 |
— | ||
| replacement | |||||
|
|
417222081 Cuvette regul.a*govern.cup assy.MXZ 600.; |
417222081 |
US $463.05 |
||
|
|
417004308 Goupille *pinMXZ 600.; |
417004308 |
US $45.81 |
||
|
1
|
1
417222156
Poulie motrice *pulley-drive
Includes 1 - 23. MXZ X 440 LC.; |
417222156 |
— | ||
|
1
|
1
417003511
Flasque fixe
MXZ X 440 LC.; |
417003511 |
— | ||
|
2
|
2
417222116
Flasque coul.as*flange-slid.as
Includes 2 - 3. MXZ X 440 LC.; |
417222116 |
— | ||
| replacement | |||||
|
2
|
2
417222393
Flasque coul.as*flange-slid.assy
Includes 2 - 3. MXZ X 440 LC.; |
417222393 |
— | ||
|
3
|
3
417004201 Douille *bushing |
417004201 |
US $29.29 |
||
|
4
|
4
417003801
Levier ass. *lever-assy
Includes 4 - 5.; |
417003801 |
— | ||
| replacement | |||||
|
4
|
4
417222383 Levier ass. *lever-assyIncludes 4 - 5.; |
417222383 |
US $99.47 |
||
|
5
|
5
417004305 Douille *bushing |
417004305 |
US $10.71 |
||
|
6
|
6
417004800 Vis assemble *screw-ass yIncludes 6 - 8.; |
417004800 |
US $32.62 |
||
|
7
|
7
222965065
Screw-socket hd.din.912
|
222965065 |
— | ||
| replacement | |||||
|
7
|
7
205065044 Screw-socket hd.din.912 |
205065044 |
US $18.40 |
||
|
8
|
8
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
9
|
9
417222157
Couv.ressort as*cover-spring assy.
Includes 9 - 10.; |
417222157 |
— | ||
| replacement | |||||
|
9
|
9
417222304
Couv.ressort as*cover-spring assy
Includes 9 - 10.; |
417222304 |
— | ||
|
10
|
10
417004501 Douille *bushing |
417004501 |
US $22.39 |
||
|
11
|
11
222964066
Screw-socket hd.din.912 gm6174m
|
222964066 |
— | ||
| replacement | |||||
|
11
|
11
205064086 Screw-socket hd.din.912 gm6174m |
205064086 |
US $14.20 |
||
|
12
|
12
420245370 Rondelle *washer |
420245370 |
US $7.10 |
||
|
13
|
13
417004702
Cuvette regul.a*govern.cup assy.
MXZ X 440 LC.; |
417004702 |
— | ||
| replacement | |||||
|
13
|
13
417222235
Cuvette regul.a*govern.cup as
MXZ X 440 LC.; |
417222235 |
— | ||
|
14
|
14
732804009
Pin-rolled din.1481 m8 x 24
|
732804009 |
— | ||
|
15
|
15
210361890 Screw-forming hex.hd.black oxide |
210361890 |
US $41.30 |
||
|
16
|
16
417005500
Vis calibration*screw-calib.
|
417005500 |
— | ||
|
17
|
17
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
18
|
18
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
19
|
19
417005700 Ressort *spring |
417005700 |
US $5.25 |
||
|
20
|
20
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
21
|
21
417222107
Glissiere *shoe-slider
MXZ X 440 LC.; |
417222107 |
— | ||
| replacement | |||||
|
21
|
21
417223021 Glissiere *shoe-sliderMXZ X 440 LC.; |
417223021 |
from US $7.96 |
||
|
22
|
22
228561045
Nut-stop elastic din.985
|
228561045 |
— | ||
| replacement | |||||
|
22
|
22
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
23
|
23
417222044
Siege ressort *seat-spring
|
417222044 |
— | ||
|
24
|
24
504151700
Goupille *pin
MXZ X 440 LC.; |
504151700 |
— | ||
|
25
|
25
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
26
|
26
417222164 Ressort bl /ar *spring-wh/arMXZ X 440 LC.; |
417222164 |
US $35.65 |
||
|
27
|
27
417005296
Rampe 296 *ramp-296
MXZ X 440 LC.; |
417005296 |
— | ||
|
28
|
28
414860700 Courroie *belt-drive |
414860700 |
US $117.27 |
||
|
29
|
29
234271414
Washer-spring conical din.6796
|
234271414 |
— | ||
| replacement | |||||
|
29
|
29
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
30
|
30
417120000 Boulon *bolt-pulley drive |
417120000 |
US $72.30 |
||
|
31
|
31
417003900
Rouleau ass. *roller-ass.
|
417003900 |
— | ||
| replacement | |||||
|
31
|
31
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
32
|
32
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
33
|
33
529022400 Extrac.poulie *puller-drive |
529022400 |
US $96.87 |
||
|
34
|
34
417006100 Ens.rep.emb. *kit-clutch rep |
417006100 |
US $152.95 |
||
|
35
|
35
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
36
|
36
417222176
Protecteur *guard
MXZ 600.; |
417222176 |
— | ||
