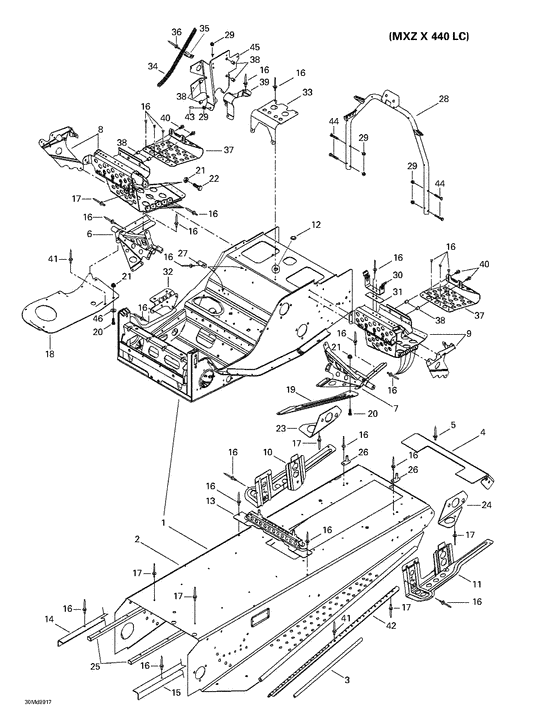

09- frame and accessories (MX Z X 440 LC) Diagram Bombardier MX Z
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518321635
Chassis *frame
MXZ X 440 LC.; |
518321635 |
— | ||
|
2
|
2
518321664
Tunnel *frame-forming
Includes 2 - 5. MXZ X 440 LC.; |
518321664 |
— | ||
| replacement | |||||
|
2
|
2
518322534
Tunnel forme *frame-forming
Includes 2 - 5. MXZ X 440 LC.; |
518322534 |
— | ||
|
3
|
3
518304746 Renf.marche-pie*reinf.-foot.MXZ X 440 LC.; |
518304746 |
US $31.59 |
||
|
4
|
4
518321620
Capuchon arr.re*cap-rear rew.
MXZ X 440 LC.; |
518321620 |
— | ||
|
5
|
5
390402200 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390402200 |
US $22 |
||
|
6
|
6
518320506
Support droit *rh.support
MXZ X 440 LC.; |
518320506 |
— | ||
|
7
|
7
518320507 Support gauche *lh.supportMXZ X 440 LC.; |
518320507 |
US $138.69 |
||
|
8
|
8
518321454
Rep.pied dr.ass*footrest-rh assy
MXZ X 440 LC.; |
518321454 |
— | ||
|
9
|
9
518321455
Rep.pied ga.ass*footrest-lh assy
MXZ X 440 LC.; |
518321455 |
— | ||
|
10
|
10
518319742 Attache susp.dr*brkt-slide rhMXZ X 440 LC.; |
518319742 |
US $59.13 |
||
|
11
|
11
518319743
Attache susp.ga*bracket-slide lh
MXZ X 440 LC.; |
518319743 |
— | ||
|
12
|
12
414859400 Bouchon *capMXZ X 440 LC.; |
414859400 |
US $30.10 |
||
|
13
|
13
518321510 Att.reserv.p. *brkt-tank paintMXZ X 440 LC.; |
518321510 |
US $23.41 |
||
|
14
|
14
518321674
Renf.tunnel dr.*reinf-frame rh
MXZ X 440 LC.; |
518321674 |
— | ||
|
15
|
15
518321675
Renf.tunnel ga.*reinf-frame lh
MXZ X 440 LC.; |
518321675 |
— | ||
|
16
|
16
390402200 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390402200 |
US $22 |
||
|
17
|
17
390402400 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390402400 |
US $22 |
||
|
18
|
18
518319760
Plaque coque dr*plate-pan bott.rh
MXZ X 440 LC.; |
518319760 |
— | ||
|
19
|
19
518316710
Plaque renf.ga.*plate-reinf.lh
MXZ X 440 LC.; |
518316710 |
— | ||
| replacement | |||||
|
19
|
19
518321959
Plaque renf.ga.*plate-reinf.lh
MXZ X 440 LC.; |
518321959 |
— | ||
|
20
|
20
207152044 Screw-hex.cap din.933MXZ X 440 LC.; |
207152044 |
US $11.70 |
||
|
21
|
21
228751045
Nut-flange elastic din.6926
MXZ X 440 LC.; |
228751045 |
— | ||
| replacement | |||||
|
21
|
21
233251414 Nut-flange elastic din.6926MXZ X 440 LC.; |
233251414 |
US $5.36 |
||
|
22
|
22
732600030
Screw-forming
MXZ X 440 LC.; |
732600030 |
— | ||
|
23
|
23
518321472
Renfort arr.dr.*reinf-rear rh
MXZ X 440 LC.; |
518321472 |
— | ||
|
24
|
24
518321473
Renfort arr.ga.*reinf-rear lh
MXZ X 440 LC.; |
518321473 |
— | ||
|
25
|
25
518321609
Prot. tunnel so*protect.-frame weld
MXZ X 440 LC.; |
518321609 |
— | ||
|
26
|
26
518319730
Attache siege s*brkt-seat weld
MXZ X 440 LC.; |
518319730 |
— | ||
| replacement | |||||
|
26
|
26
518323321 Attache siege s*seat bracke weldMXZ X 440 LC.; |
518323321 |
US $11.49 |
||
|
27
|
27
518319728
Attache doub.so*bracket double weld
MXZ X 440 LC.; |
518319728 |
— | ||
|
28
|
28
518319710
Supp.guidon sou*supp-handle weld.
MXZ X 440 LC.; |
518319710 |
— | ||
| replacement | |||||
|
28
|
28
518322755
Supp.guidon sou*supp-handle weld.
MXZ X 440 LC.; |
518322755 |
— | ||
|
29
|
29
233261414 Nut-flange elastic din.6926MXZ X 440 LC.; |
233261414 |
US $18.40 |
||
|
30
|
30
518202100 Attache gard.co*brkt-guard beltMXZ X 440 LC.; |
518202100 |
US $15.73 |
||
|
31
|
31
518207500 Renfort *reinforcementMXZ X 440 LC.; |
518207500 |
US $8.38 |
||
|
32
|
32
518206300
Support silenc.*support-muffler
MXZ X 440 LC.; |
518206300 |
— | ||
| replacement | |||||
|
32
|
32
518322635
Support silenc.*support-muffler
MXZ X 440 LC.; |
518322635 |
— | ||
|
33
|
33
518310400 Supp.silenc.adm*supp-air intakeMXZ X 440 LC.; |
518310400 |
US $13.21 |
||
|
34
|
34
518321569 Guide corde *guide-ropeMXZ X 440 LC.; |
518321569 |
US $11.49 |
||
|
35
|
35
518321570 Attache collier*open clampMXZ X 440 LC.; |
518321570 |
US $9.61 |
||
|
36
|
36
390406500 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390406500 |
US $58.50 |
||
|
37
|
37
518321602
Accroche-pied *toe-hold
MXZ X 440 LC.; |
518321602 |
— | ||
|
38
|
38
415107300
Ajout *insert
MXZ X 440 LC.; |
415107300 |
— | ||
|
39
|
39
518319762
Support boyaux *support-hose
MXZ X 440 LC.; |
518319762 |
— | ||
| replacement | |||||
|
39
|
39
518322699
Support boyaux *support-hose
MXZ X 440 LC.; |
518322699 |
— | ||
|
40
|
40
207661644 Screw-hex.flange din.6921MXZ X 440 LC.; |
207661644 |
US $23.75 |
||
|
41
|
41
390402300 Rivet-pop 3/16 *rivet-pop 3/16MXZ X 440 LC.; |
390402300 |
US $50 |
||
|
42
|
42
518321627
Bande *strip
MXZ X 440 LC.; |
518321627 |
— | ||
|
43
|
43
293000025 Capuchon court *cap-shortMXZ X 440 LC.; |
293000025 |
US $1.96 |
||
|
44
|
44
207663544 Screw-hex.flange din.6921MXZ X 440 LC.; |
207663544 |
US $29.25 |
||
|
45
|
45
518321678
Sup.module elec*supp-module elect.
MXZ X 440 LC.; |
518321678 |
— | ||
|
46
|
46
517225900 Washer - flatMXZ X 440 LC.; |
517225900 |
US $2.40 |
||
