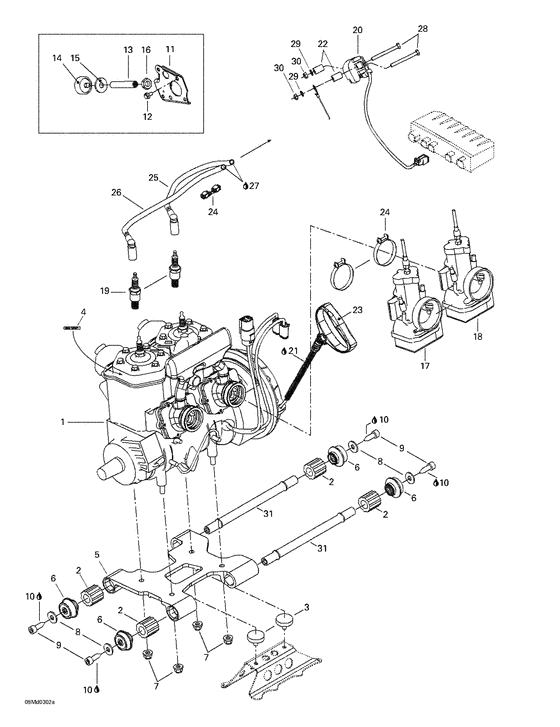

01- engine 1 Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
400409419
<<453>> engine
|
400409419 |
— | ||
|
2
|
2
512059781
Amort.caoutc. *damper
|
512059781 |
— | ||
|
3
|
3
512059738 Butee *stopper |
512059738 |
US $21.39 |
||
|
4
|
4
516000986
Decalque bougie*decal-spark plug
|
516000986 |
— | ||
|
5
|
5
512059754
Socle *engine support
|
512059754 |
— | ||
|
6
|
6
512059777 Tampon ancrage *rubber mount |
512059777 |
US $51.97 |
||
|
7
|
7
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
8
|
8
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
9
|
9
250000131
Screw-socket din.912 nylon patch
|
250000131 |
— | ||
|
10
|
10
413703400 Loctite 222ms *loctite-222ms |
413703400 |
US $19.33 |
||
|
11
|
11
512059747
Plaque app.soud*plate-weld.
|
512059747 |
— | ||
| replacement | |||||
|
11
|
11
512059840 Plaque app.pein*plate-paint |
512059840 |
US $39.73 |
||
|
12
|
12
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
13
|
13
250500007 Vis d arret *screw-stopper |
250500007 |
US $27.49 |
||
|
14
|
14
512059741
Butee *stopper
|
512059741 |
— | ||
|
15
|
15
512059775
Rondelle *washer
|
512059775 |
— | ||
|
16
|
16
232170411 Nut-jam hexagonal din.439b |
232170411 |
US $9.60 |
||
|
17
|
17
403138737
Carb.tmx-34 pto*carb-tmx-34 pto
|
403138737 |
— | ||
|
18
|
18
403138738
Carb.tmx-34 mag*carb-tmx-34 mag
|
403138738 |
— | ||
|
18
|
18
512059305
Bride *clamp
|
512059305 |
— | ||
| replacement | |||||
|
18
|
18
512059835 Bride *clamp |
512059835 |
US $11.90 |
||
|
19
|
19
414961100
Bougie br9es *plug-spark br9es
|
414961100 |
— | ||
| replacement | |||||
|
19
|
19
219703120 SPARK PLUG, NGK BR9ES |
219703120 |
US $21.84 |
||
|
20
|
20
512059564 Bobine allumage*coil-ignition |
512059564 |
US $97.89 |
||
|
21
|
21
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
|
22
|
22
517203200 Entretoise *spacer |
517203200 |
US $181.20 |
||
|
23
|
23
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
24
|
24
512059403
Bride *clamp
|
512059403 |
— | ||
| replacement | |||||
|
24
|
24
512059834 Bride *clamp |
512059834 |
US $11.90 |
||
|
25
|
25
512059695 Cable ass.300mm*cable-assy 300mm |
512059695 |
US $53.01 |
||
|
26
|
26
512059696 Cable ass.375mm*cable-assy 375mm |
512059696 |
US $80.55 |
||
|
27
|
27
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
28
|
28
207066044 Screw-hex.cap din.931 |
207066044 |
US $21.75 |
||
|
29
|
29
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
30
|
30
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
31
|
31
512059776 Tige filete *rod threaded |
512059776 |
US $35.65 |
||
