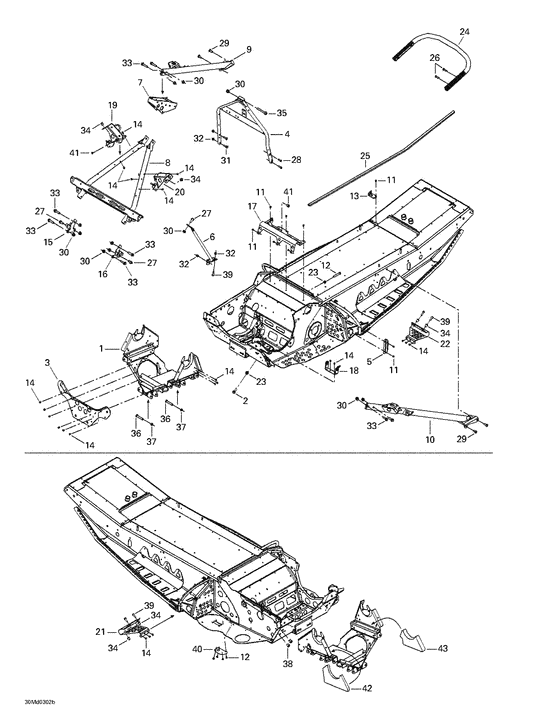

09- frame - front and rear Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
518323579
Traverse av.sou*front cross memb. weld
|
518323579 |
— | ||
| replacement | |||||
|
1
|
1
518325438 Traverse avant *cross member |
518325438 |
US $472.23 |
||
|
2
|
2
207151644 Screw-hex.cap din.933 |
207151644 |
US $11.70 |
||
|
3
|
3
518322166
Plaque avant *plate-front
|
518322166 |
— | ||
|
4
|
4
518323394
Supp.guidon sou*handle support weld.
|
518323394 |
— | ||
|
6
|
6
518323472 Croisillon soud*brace-weld |
518323472 |
US $24.45 |
||
|
7
|
7
518322546
Bloc attache *block-bracket
|
518322546 |
— | ||
|
8
|
8
518323342
Traverse sup.so*cross memb.upp.weld
|
518323342 |
— | ||
| replacement | |||||
|
8
|
8
518324574 Traverse sup.so*cross memb.upp.weld |
518324574 |
US $283.53 |
||
|
9
|
9
518323352 Membrure dr.sou*member-rh weld. |
518323352 |
US $101.97 |
||
|
10
|
10
518323354 Membrure ga.sou*member-lh weld. |
518323354 |
US $100.93 |
||
|
11
|
11
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
12
|
12
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
13
|
13
518323274
Attache coffre *bracket trunk
|
518323274 |
— | ||
|
14
|
14
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
15
|
15
518322461 Attache amorti.*bracket-shock rh |
518322461 |
US $11.17 |
||
|
16
|
16
518322462 Attache amorti.*bracket-shock lh |
518322462 |
US $11.17 |
||
|
17
|
17
518323463
Supp.silenc.adm*sup-intake air
|
518323463 |
— | ||
|
18
|
18
518322726 Attache gard.co*brkt-guard belt |
518322726 |
US $15.73 |
||
|
19
|
19
518323535
Supp.console d*support-console rh
|
518323535 |
— | ||
|
20
|
20
518323536
Supp.console g *support-console lh
|
518323536 |
— | ||
|
21
|
21
518323377
Accroche pied d*toe hold rh
|
518323377 |
— | ||
| replacement | |||||
|
21
|
21
518324391 Accroche pied d*toe hold rh |
518324391 |
US $16.29 |
||
|
22
|
22
518323378
Accroche-pied g*toe-hold lh
|
518323378 |
— | ||
| replacement | |||||
|
22
|
22
518324392 Accroche-pied g*toe-hold lh |
518324392 |
US $17.82 |
||
|
23
|
23
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
24
|
24
518322708 Pare-chocs arr.*bumper-rear |
518322708 |
US $97.89 |
||
|
25
|
25
518322344
Protecteur rad.*protector-rad.
|
518322344 |
— | ||
|
26
|
26
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
27
|
27
207682044 Screw-hex.flange din.6921 |
207682044 |
US $14.80 |
||
|
28
|
28
205862044 Screw-socket ctsk.din.7991 s.grip |
205862044 |
US $21.28 |
||
|
29
|
29
250000117 Screw-pan hd.torx black scotch grip |
250000117 |
US $1.96 |
||
|
30
|
30
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
31
|
31
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
32
|
32
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
33
|
33
207683544 Screw-hex.flange din.6921 |
207683544 |
US $21.80 |
||
|
34
|
34
415107300
Ajout *insert
|
415107300 |
— | ||
|
35
|
35
207687044 Screw-hex.flange din.6921 |
207687044 |
US $9.45 |
||
|
36
|
36
207085044 Screw-hex.cap din.931 |
207085044 |
US $19.20 |
||
|
37
|
37
232581414 Nut-stop elastic din.985 |
232581414 |
US $7.30 |
||
|
38
|
38
293450166 Ajout *insert |
293450166 |
US $5.71 |
||
|
39
|
39
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
40
|
40
518323506
Plaque *plate
|
518323506 |
— | ||
|
41
|
41
293450232 Ajout *insert |
293450232 |
US $4.05 |
||
|
42
|
42
518323453 Mousse *foam |
518323453 |
US $11.49 |
||
|
43
|
43
518323007 Mousse *foam |
518323007 |
US $11.49 |
||
