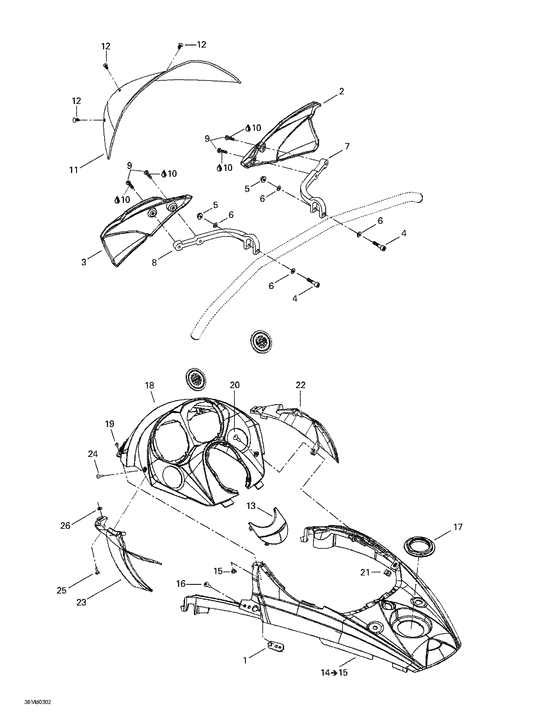

09- windshield and console Diagram Bombardier MX Z
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517302616 Loquet capot *latch-hood |
517302616 |
US $8.38 |
||
|
2
|
2
517302677
Deflect. air dr*air deflector rh
|
517302677 |
— | ||
|
3
|
3
517302678
Deflect. air ga*air deflector lh
|
517302678 |
— | ||
|
4
|
4
205065060 Screw-socket hd.din.912a2 |
205065060 |
US $19.60 |
||
|
5
|
5
232561600 Nut-stop elastic din.985-a2 |
232561600 |
US $7.40 |
||
|
6
|
6
234061600 Washer-flat din.125a-a2 |
234061600 |
US $10.25 |
||
|
7
|
7
517302929
Supp.deflecteur*support-deflector
|
517302929 |
— | ||
|
8
|
8
517302931
Supp.deflecteur*support-deflector
|
517302931 |
— | ||
|
9
|
9
211000121 Phil-truss m/s gm6047m |
211000121 |
US $27.70 |
||
|
10
|
10
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
11
|
11
517302617
Pare-brise *windshield
|
517302617 |
— | ||
| replacement | |||||
|
11
|
11
517303638 Pare-brise *windshield |
517303638 |
US $79.53 |
||
|
12
|
12
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
13
|
13
517302592
Capuchon consol*cap-console
|
517302592 |
— | ||
|
14
|
14
517302809 Console cent. *center consoleIncludes 14 - 15.; |
517302809 |
US $188.67 |
||
|
15
|
15
250100030 Flange nut "t" type m4 |
250100030 |
US $41.90 |
||
|
16
|
16
250000122 Phil-truss m/s-gm6047m nylon patch |
250000122 |
US $3.83 |
||
|
17
|
17
517302575 Ecrou console *nut-console |
517302575 |
US $10.17 |
||
|
18
|
18
517302935
Support ind. *indicator support
|
517302935 |
— | ||
|
19
|
19
250000121
Phil-truss m/s-gm6047m nylon patch
|
250000121 |
— | ||
|
20
|
20
250000124 Phil-truss m/s-gm6047m nylon patch |
250000124 |
US $3.83 |
||
|
21
|
21
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
22
|
22
517302546 Deflecteur air *deflector-air rh |
517302546 |
US $22.39 |
||
|
23
|
23
517302547 Deflecteur air *deflector-air lh |
517302547 |
US $22.39 |
||
|
24
|
24
250000084
Phil-truss pt gm6047m k40 x 16
|
250000084 |
— | ||
|
25
|
25
250000113
Screw plastite type k-40 m4 x 16
|
250000113 |
— | ||
|
26
|
26
234042600 Washer-flat din.9021b-a2 |
234042600 |
US $7.40 |
||
