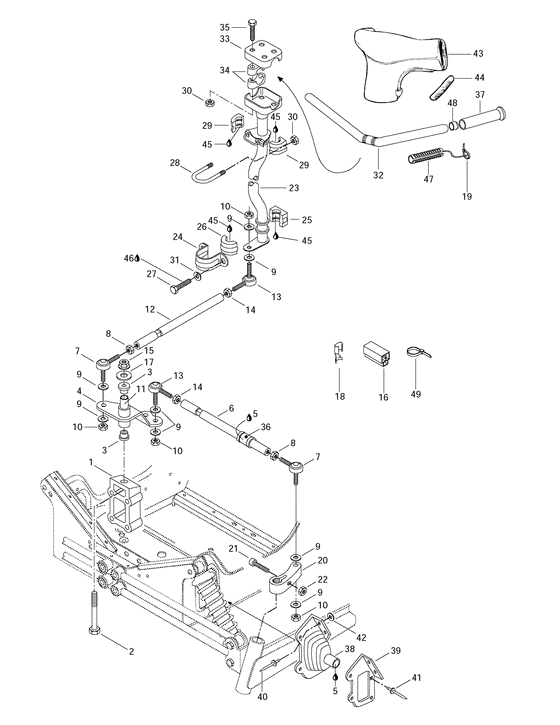

07- steering system (MX Z 440 LC) Diagram Bombardier MX Z
- Year
- 1997
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
506130600
Bras de direction gauche
MX Z 440 LC.; |
506130600 |
— | ||
|
|
517241300 Plaque cap.ga. *plate-cap.lhMX Z 440 LC.; |
517241300 |
US $11.17 |
||
|
|
570024900
Cap.timon.ga. *cap-rod tie lh
MX Z 440 LC.; |
570024900 |
— | ||
|
1
|
1
506121400
Bloc attache us*block-mach.
MX Z 440 LC.; |
506121400 |
— | ||
|
2
|
2
222028565
Screw-hex.cap iso.4014
MX Z 440 LC.; |
222028565 |
— | ||
| replacement | |||||
|
2
|
2
207028544
Screw-hex.cap iso.4014
MX Z 440 LC.; |
207028544 |
— | ||
|
3
|
3
415041100
Coussinet *cushion
MX Z 440 LC.; |
415041100 |
— | ||
|
4
|
4
506133800
Bras pivot soud*arm-pivot weld
MX Z 440 LC.; |
506133800 |
— | ||
|
5
|
5
293550014
Graisse *grease
MX Z 440 LC.; |
293550014 |
— | ||
| replacement | |||||
|
5
|
5
293550030 Graisse *greaseMX Z 440 LC.; |
293550030 |
US $36.06 |
||
|
6
|
6
506130200
Barre accoupl. *rod-tie
MX Z 440 LC.; |
506130200 |
— | ||
|
7
|
7
414768000
Joint rotule dr*joint-ball rh
MX Z 440 LC.; |
414768000 |
— | ||
| replacement | |||||
|
7
|
7
506151492 Joint rotule dr*joint-ball rhMX Z 440 LC.; |
506151492 |
US $53.13 |
||
|
8
|
8
732610010 Nut-jam hexagonal rh.MX Z 440 LC.; |
732610010 |
US $9.50 |
||
|
9
|
9
503125900 Rondelle trempe*washer-hardMX Z 440 LC.; |
503125900 |
US $38.90 |
||
|
10
|
10
732610042
Nut-stop elastic din.985
MX Z 440 LC.; |
732610042 |
— | ||
| replacement | |||||
|
10
|
10
232501416 Nut-stop elastic din.985MX Z 440 LC.; |
232501416 |
US $9.60 |
||
|
11
|
11
415038000
Pivot *pivot
MX Z 440 LC.; |
415038000 |
— | ||
|
12
|
12
506110800
Barre accoupl. *rod-tie
MX Z 440 LC.; |
506110800 |
— | ||
|
13
|
13
414768100
Joint rotule ga*joint-ball lh
MX Z 440 LC.; |
414768100 |
— | ||
| replacement | |||||
|
13
|
13
506151845 Joint rotule ga*ball joint lhMX Z 440 LC.; |
506151845 |
US $46.10 |
||
|
14
|
14
732610011
Nut-jam hexagonal lh.
MX Z 440 LC.; |
732610011 |
— | ||
| replacement | |||||
|
14
|
14
250100016 Nut-jam hexagonal lh.MX Z 440 LC.; |
250100016 |
US $9.50 |
||
|
15
|
15
228521045
Nut-stop elastic din.985
MX Z 440 LC.; |
228521045 |
— | ||
| replacement | |||||
|
15
|
15
232521414 Nut-stop elastic din.985MX Z 440 LC.; |
232521414 |
US $13.95 |
||
|
16
|
16
409204300
Logement femel.*housing-female
MX Z 440 LC.; |
409204300 |
— | ||
|
17
|
17
506136400 Rondelle *washerMX Z 440 LC.; |
506136400 |
US $30.10 |
||
|
18
|
18
561503100 Cosse femelle *terminal-femal.MX Z 440 LC.; |
561503100 |
US $52 |
||
|
19
|
19
293750001 Tie rap 94mm *tie-rap 94mmMX Z 440 LC.; |
293750001 |
US $66.50 |
||
|
20
|
20
506130500
Bras de direction droit
MX Z 440 LC.; |
506130500 |
— | ||
|
21
|
21
222983565
Screw-socket hd.din.912
MX Z 440 LC.; |
222983565 |
— | ||
| replacement | |||||
|
21
|
21
205083544 Screw-socket hd.din.912MX Z 440 LC.; |
205083544 |
US $8.65 |
||
|
22
|
22
228781045
Nut-flange elastic din.6926
MX Z 440 LC.; |
228781045 |
— | ||
| replacement | |||||
|
22
|
22
233281414 Nut-flange elastic din.6926MX Z 440 LC.; |
233281414 |
US $18.50 |
||
|
23
|
23
506128000
Arbre direction*tube-main black
MX Z 440 LC.; |
506128000 |
— | ||
| replacement | |||||
|
23
|
23
506151125
Arbre direction*tube-main black
MX Z 440 LC.; |
506151125 |
— | ||
|
24
|
24
517126200
Support retenue*support-retainer
MX Z 440 LC.; |
517126200 |
— | ||
|
25
|
25
572064400 Douille *bushingMX Z 440 LC.; |
572064400 |
US $6.07 |
||
|
26
|
26
572064500 Douille *bushingMX Z 440 LC.; |
572064500 |
US $6.07 |
||
|
27
|
27
222082065
Screw-hex.cap din.933
MX Z 440 LC.; |
222082065 |
— | ||
| replacement | |||||
|
27
|
27
207182044 Screw-hex.cap din.933MX Z 440 LC.; |
207182044 |
US $9.50 |
||
|
28
|
28
506060600 Bride en u *clamp-uMX Z 440 LC.; |
506060600 |
US $17.88 |
||
|
29
|
29
572067100 Demi-douille *half-bushingMX Z 440 LC.; |
572067100 |
US $24.44 |
||
|
30
|
30
228581045
Nut-stop elastic din.985
MX Z 440 LC.; |
228581045 |
— | ||
| replacement | |||||
|
30
|
30
232581414 Nut-stop elastic din.985MX Z 440 LC.; |
232581414 |
US $7.30 |
||
|
31
|
31
224781140
Washer-lock din.127a
MX Z 440 LC.; |
224781140 |
— | ||
| replacement | |||||
|
31
|
31
234181401 Washer-lock din*.127bMX Z 440 LC.; |
234181401 |
US $59.50 |
||
|
32
|
32
506125900
Guidon *bar-handle
MX Z 440 LC.; |
506125900 |
— | ||
|
33
|
33
506055400
Bride direction*clamp-steering
MX Z 440 LC.; |
506055400 |
— | ||
|
34
|
34
414491600
Support guidon *support-steer.
MX Z 440 LC.; |
414491600 |
— | ||
| replacement | |||||
|
34
|
34
506151622
Support guidon *steering support
MX Z 440 LC.; |
506151622 |
— | ||
|
35
|
35
222085565
Screw-hex.cap din.931
MX Z 440 LC.; |
222085565 |
— | ||
| replacement | |||||
|
35
|
35
207085544 Screw-hex.cap din.931MX Z 440 LC.; |
207085544 |
US $21.60 |
||
|
36
|
36
572036500 Douille *bushingMX Z 440 LC.; |
572036500 |
US $8.55 |
||
|
37
|
37
572061700
Gaine poignee *grip-handle
MX Z 440 LC.; |
572061700 |
— | ||
| replacement | |||||
|
37
|
37
506151530 Gaine dr. *grip-rh 6-1/2MX Z 440 LC.; |
506151530 |
US $29.34 |
||
|
38
|
38
570024800
Cap.timon.dr. *cap-rod tie rh
MX Z 440 LC.; |
570024800 |
— | ||
|
39
|
39
517241200
Plaque cap.dr. *plate-cap.rh
MX Z 440 LC.; |
517241200 |
— | ||
|
40
|
40
390909400
Rivet-pop 3/16 *rivet-pop 3/16
MX Z 440 LC.; |
390909400 |
— | ||
| replacement | |||||
|
40
|
40
390906800 Rivet-pop 3/16 *rivet-pop 3/16MX Z 440 LC.; |
390906800 |
US $62 |
||
|
41
|
41
390402200 Rivet-pop 3/16 *rivet-pop 3/16MX Z 440 LC.; |
390402200 |
US $22 |
||
|
42
|
42
517124300 Rondelle *washerMX Z 440 LC.; |
517124300 |
US $2.70 |
||
|
43
|
43
572084100
Couss.securite *pad-steering black
MX Z 440 LC.; |
572084100 |
— | ||
|
44
|
44
572072400
Mortaise *keyway
MX Z 440 LC.; |
572072400 |
— | ||
|
45
|
45
413706100
Graisse lith. *grease lith.
MX Z 440 LC.; |
413706100 |
— | ||
|
46
|
46
413707400
Loctite 271 *loctite-271
MX Z 440 LC.; |
413707400 |
— | ||
| replacement | |||||
|
46
|
46
293800005 Loctite 271 *loctite-271MX Z 440 LC.; |
293800005 |
US $31.18 |
||
|
47
|
47
410110000
Element chauff.*heated film
MX Z 440 LC.; |
410110000 |
— | ||
| replacement | |||||
|
47
|
47
515175573 Element chauff.*heated filmMX Z 440 LC.; |
515175573 |
US $53.01 |
||
|
48
|
48
572081900 Bout de guidon *end-bar handleMX Z 440 LC.; |
572081900 |
US $35.45 |
||
|
49
|
49
414115200 Tie-rap 180 mmMX Z 440 LC.; |
414115200 |
US $7 |
||
