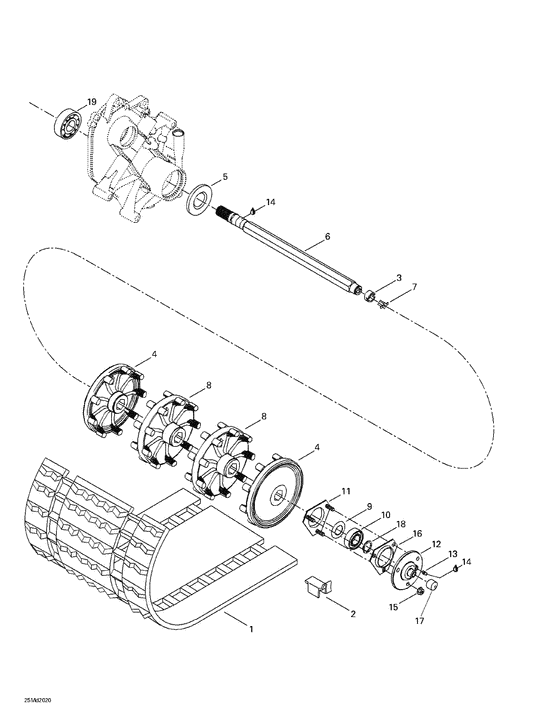

05- drive axle and track Diagram Bombardier MX Z
- Year
- 2000
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
504151815
Chenille *track-assy 15"x121"x1.250
Includes 1 - 2.; |
504151815 |
— | ||
| replacement | |||||
|
1
|
1
504152483
Chenille 15"x121"x1.25" *track-assy
Includes 1 - 2.; |
504152483 |
— | ||
|
2
|
2
500003400
Agrafe de guide*cleat-guide
|
500003400 |
— | ||
| replacement | |||||
|
2
|
2
504152410
Guide *clip
|
504152410 |
— | ||
|
3
|
3
572097500 Adaptateur *adaptor |
572097500 |
US $37.71 |
||
|
4
|
4
504151834
Demi barbotin *half sprocket
|
504151834 |
— | ||
|
5
|
5
504151918 Anneau etanche *oil seal ass y |
504151918 |
US $24.45 |
||
|
6
|
6
504151792 Arbre entr.pein*axle-drive paint |
504151792 |
US $402.85 |
||
|
7
|
7
572010100 Prise ind.vit. *insert-speedo |
572010100 |
US $81.30 |
||
|
8
|
8
504151803
Barbotin 9d *sprocket 9th
|
504151803 |
— | ||
|
9
|
9
501017400 Prot.roulement *bearing protector |
501017400 |
US $9.13 |
||
|
10
|
10
405408600
Roulement bille*ball bearing
|
405408600 |
— | ||
| replacement | |||||
|
10
|
10
504152009
Roulement bille*ball bearing
|
504152009 |
— | ||
|
11
|
11
504151860 Logement roul. *housing-bear.weld. |
504151860 |
US $12.19 |
||
|
12
|
12
504151836 Flasque ind.vit*flange-speed. |
504151836 |
US $8.13 |
||
|
13
|
13
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
14
|
14
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
15
|
15
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
16
|
16
501025000 Flasque *flange |
501025000 |
US $5.07 |
||
|
17
|
17
504151825
Bouchon *cap
|
504151825 |
— | ||
|
18
|
18
371910200 Circlip *circlip |
371910200 |
US $10.65 |
||
|
19
|
19
405408500
Roulement bille*ball bearing
|
405408500 |
— | ||
| replacement | |||||
|
19
|
19
504152005 Roulement bille*ball bearing |
504152005 |
US $41.77 |
||
