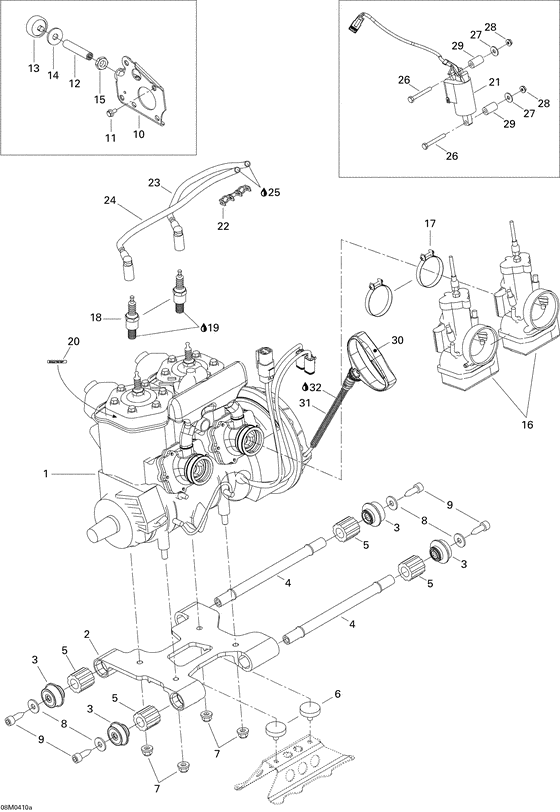

01- engine assembly and support Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
403138771
Carb.tmx-34 *carb-tmx-34
Europe; |
403138771 |
— | ||
|
|
400409433
Engine 453
EUR; |
400409433 |
— | ||
|
1
|
1
400409432
Moteur 453 *engine-453
C/U; |
400409432 |
— | ||
|
2
|
2
512059754
Socle *engine support
|
512059754 |
— | ||
|
3
|
3
512059777 Tampon ancrage *rubber mount |
512059777 |
US $51.97 |
||
|
4
|
4
512059776 Tige filete *rod threaded |
512059776 |
US $35.65 |
||
|
5
|
5
512059781
Amort.caoutc. *damper
|
512059781 |
— | ||
|
6
|
6
512059738 Butee *stopper |
512059738 |
US $21.39 |
||
|
7
|
7
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
8
|
8
506151251 Rondelle *washer |
506151251 |
US $1.96 |
||
|
9
|
9
250000131
Screw-socket din.912 nylon patch
|
250000131 |
— | ||
|
10
|
10
512059840 Plaque app.pein*plate-paint |
512059840 |
US $39.73 |
||
|
11
|
11
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
12
|
12
250500007 Vis d arret *screw-stopper |
250500007 |
US $27.49 |
||
|
13
|
13
512059741
Butee *stopper
|
512059741 |
— | ||
|
14
|
14
512059775
Rondelle *washer
|
512059775 |
— | ||
|
15
|
15
232170411 Nut-jam hexagonal din.439b |
232170411 |
US $9.60 |
||
|
16
|
16
403138765 Carb.tmx-34 pto*carb-tmx-34 pto |
403138765 |
US $488.55 |
||
|
17
|
17
512059403
Bride *clamp
|
512059403 |
— | ||
| replacement | |||||
|
17
|
17
512059834 Bride *clamp |
512059834 |
US $11.90 |
||
|
18
|
18
512059552 Bougie br9ecs-5*plug-spark br9ecs-5 |
512059552 |
US $116.80 |
||
|
19
|
19
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
20
|
20
516000986
Decalque bougie*decal-spark plug
|
516000986 |
— | ||
|
21
|
21
512059564 Bobine allumage*coil-ignition |
512059564 |
US $97.89 |
||
|
22
|
22
410914600 Attache fil bou*clip-plastic |
410914600 |
from US $9.01 |
||
|
23
|
23
512059695 Cable ass.300mm*cable-assy 300mm |
512059695 |
US $53.01 |
||
|
24
|
24
512059696 Cable ass.375mm*cable-assy 375mm |
512059696 |
US $80.55 |
||
|
25
|
25
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
26
|
26
207066044 Screw-hex.cap din.931 |
207066044 |
US $21.75 |
||
|
27
|
27
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
28
|
28
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
29
|
29
517203200 Entretoise *spacer |
517203200 |
US $181.20 |
||
|
30
|
30
572084400 Poignee demar. *grip-starter |
572084400 |
US $14.25 |
||
|
31
|
31
512059535 Guide corde *guide-rope |
512059535 |
US $13.45 |
||
|
32
|
32
413803200
Huile 2t baril * oil 2t drum mineral
|
413803200 |
— | ||
