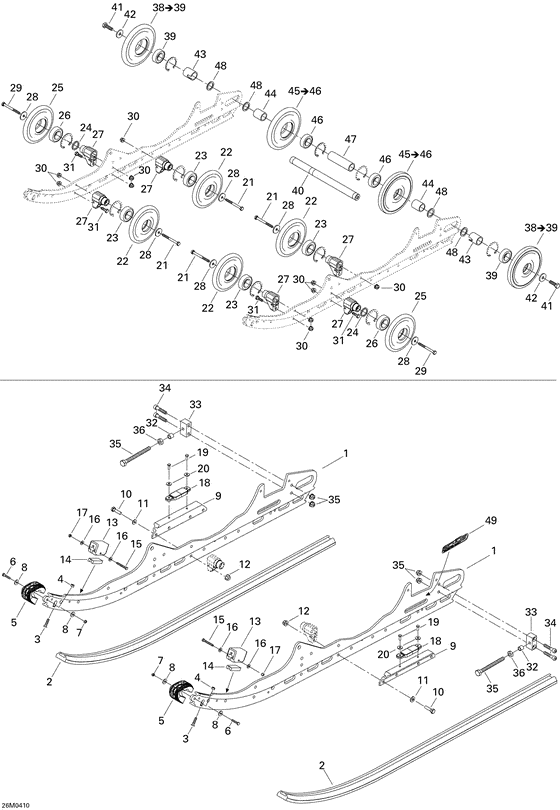

08- rear suspension Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503190440
Rail forme *runner-forming
|
503190440 |
— | ||
|
2
|
2
503190443
Glissiere noir 121" *shoe-runner black
|
503190443 |
— | ||
|
3
|
3
208562560 Screw-ctsk.ov.hd.ph.din.966a-a2 |
208562560 |
US $15.05 |
||
|
4
|
4
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
5
|
5
572075400 Protecteur rail*prot-runner |
572075400 |
US $12.19 |
||
|
6
|
6
207152544 Screw-hex.cap din.933 |
207152544 |
US $8.70 |
||
|
7
|
7
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
8
|
8
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
9
|
9
503190261 Renfort rail *reinf.-rail |
503190261 |
US $40.77 |
||
|
10
|
10
207183044 Screw-hex.cap din.933 |
207183044 |
US $19.60 |
||
|
11
|
11
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
12
|
12
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
13
|
13
570063000
Butee caout. *stopper-rubber
|
570063000 |
— | ||
| replacement | |||||
|
13
|
13
503190905 Butee caout as *stopper-rub as |
503190905 |
US $55 |
||
|
14
|
14
572084800 Renfort butee *reinf.-stopper |
572084800 |
US $8.55 |
||
|
15
|
15
207054044 Screw-hex.cap din.931 |
207054044 |
US $9.80 |
||
|
16
|
16
391301700
Rondelle *washer
|
391301700 |
— | ||
|
17
|
17
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
18
|
18
503190263
Butee de rail *stopper rail
|
503190263 |
— | ||
|
19
|
19
207351444 Screw-hex.scotch grip din.933 |
207351444 |
US $14.50 |
||
|
20
|
20
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
21
|
21
207088544 Screw-hex.cap din.931 |
207088544 |
US $10.65 |
||
|
22
|
22
503190229
Roue 135 *wheel-135
|
503190229 |
— | ||
| replacement | |||||
|
22
|
22
503190802
Roue 135 *wheel-135
|
503190802 |
— | ||
|
23
|
23
503189567
Roulement bille*ball bearing
|
503189567 |
— | ||
| replacement | |||||
|
23
|
23
293350055
Ball bearing
|
293350055 |
— | ||
|
24
|
24
503173700 Rondelle *washer |
503173700 |
US $19.60 |
||
|
25
|
25
503190229
Roue 135 *wheel-135
|
503190229 |
— | ||
| replacement | |||||
|
25
|
25
503190802
Roue 135 *wheel-135
|
503190802 |
— | ||
|
26
|
26
503189567
Roulement bille*ball bearing
|
503189567 |
— | ||
| replacement | |||||
|
26
|
26
293350055
Ball bearing
|
293350055 |
— | ||
|
27
|
27
503190389 Support moulee *support-cast. |
503190389 |
US $22 |
||
|
28
|
28
503183100 Rondelle *washer |
503183100 |
US $40.80 |
||
|
29
|
29
207088544 Screw-hex.cap din.931 |
207088544 |
US $10.65 |
||
|
30
|
30
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
31
|
31
207182544 Screw-hex.cap din.933 |
207182544 |
US $11.70 |
||
|
32
|
32
503168500 Entretoise *spacer |
503168500 |
US $9.78 |
||
|
33
|
33
503189211
Tendeur *tensioner
|
503189211 |
— | ||
|
34
|
34
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
35
|
35
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
36
|
36
230100044 Screw-hex.cap iso.4017 |
230100044 |
US $14.05 |
||
|
37
|
37
232006414 Nut-hexagonal din.934 |
232006414 |
US $17.50 |
||
|
38
|
38
503189568
Roue 165 *wheel-165
INCLUDES 38 TO 39; |
503189568 |
— | ||
|
39
|
39
503189567
Roulement bille*ball bearing
|
503189567 |
— | ||
| replacement | |||||
|
39
|
39
293350055
Ball bearing
|
293350055 |
— | ||
|
40
|
40
503167900 Essieu arriere *axle-rear |
503167900 |
US $122.37 |
||
|
41
|
41
250000019 Screw-hex.cap with nylon patch |
250000019 |
US $21.90 |
||
|
42
|
42
503183300 Rondelle *washer |
503183300 |
US $75.10 |
||
|
43
|
43
503189809 Entretoise *spacer |
503189809 |
US $14.67 |
||
|
44
|
44
503182900 Entretoise *spacer |
503182900 |
US $9.78 |
||
|
45
|
45
503189579
Roue 165 mince *wheel-165 thin
INCLUDES 45 TO 46; |
503189579 |
— | ||
|
46
|
46
503189567
Roulement bille*ball bearing
|
503189567 |
— | ||
| replacement | |||||
|
46
|
46
293350055
Ball bearing
|
293350055 |
— | ||
|
47
|
47
503156000 Entretoise *spacer |
503156000 |
US $51.30 |
||
|
48
|
48
503180400 Rondelle *washer |
503180400 |
US $3.28 |
||
|
49
|
49
516001248
Decal.susp. *decal-susp.
|
516001248 |
— | ||
