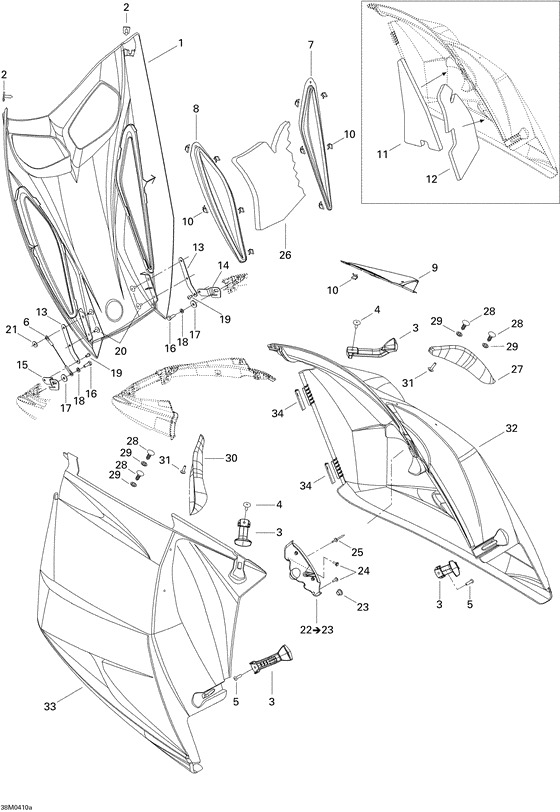

09- hood Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517302788 Capot *hood |
517302788 |
US $271.71 |
||
|
2
|
2
517302543 Tige *pin |
517302543 |
US $52 |
||
|
3
|
3
517302448 Loquet panneau *latch-panel |
517302448 |
US $15.86 |
||
|
4
|
4
293150087 Rivet-pop 3/16 *rivet-pop 3/16 |
293150087 |
US $31 |
||
|
6
|
6
517302673 Cable retenue *cable-retainer |
517302673 |
US $9.40 |
||
|
7
|
7
517302936 Grille capot dr*grill-hood rh |
517302936 |
US $34.65 |
||
|
8
|
8
517302937 Grille capot ga*grill-hood lh |
517302937 |
US $34.65 |
||
|
9
|
9
517302938 Grille panneau *grill-panel rh |
517302938 |
US $34.65 |
||
|
10
|
10
517302789 Pince *clip |
517302789 |
US $125.20 |
||
|
11
|
11
517303082
Mousse avant *foam-front
|
517303082 |
— | ||
|
12
|
12
517303083
Mousse arriere *foam-rear
|
517303083 |
— | ||
|
13
|
13
517302544
Demi-charn.sup.*half-hinge-upp
|
517302544 |
— | ||
| replacements | |||||
|
13
|
13
517303669 Charni+re ga as*hinge lh ass |
517303669 |
US $12.58 |
||
|
13
|
13
517303668 Charni+re dr as*hinge rh ass |
517303668 |
US $12.58 |
||
|
14
|
14
517302444
Demi-charn.inf.*half-hinge low
|
517302444 |
— | ||
| replacement | |||||
|
14
|
14
517303668 Charni+re dr as*hinge rh ass |
517303668 |
US $12.58 |
||
|
15
|
15
517302445
Demi-charn.inf.*half-hinge low
|
517302445 |
— | ||
| replacement | |||||
|
15
|
15
517303669 Charni+re ga as*hinge lh ass |
517303669 |
US $12.58 |
||
|
16
|
16
207161844 Screw-hex.cap din.933 |
207161844 |
US $7.70 |
||
|
17
|
17
224061121 Washer-flat |
224061121 |
US $6.80 |
||
|
18
|
18
234161471 Washer-lock black din.127b |
234161471 |
US $6.80 |
||
|
19
|
19
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
20
|
20
390406500 Rivet-pop 3/16 *rivet-pop 3/16 |
390406500 |
US $58.50 |
||
|
21
|
21
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
22
|
22
517303109
Console droite *console-rh
INCLUDES 22 TO 23; |
517303109 |
— | ||
|
23
|
23
275500241 Bouchon bouton *plug-cap fuel valve |
275500241 |
US $21.75 |
||
|
24
|
24
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
25
|
25
293150102 Rivet-pop 3/16 *pop rivet 3/16 |
293150102 |
US $9.40 |
||
|
26
|
26
517303081
Mousse capot foam
|
517303081 |
— | ||
|
27
|
27
517302800 Deflecteur air *air deflector rh |
517302800 |
US $19.57 |
||
|
28
|
28
517303070 Dard pare-brise*windshiel dart |
517303070 |
US $13.40 |
||
|
29
|
29
250100034 Ecrou pression *push-nut |
250100034 |
US $14 |
||
|
30
|
30
517302801 Deflecteur air *air deflector lh |
517302801 |
US $19.57 |
||
|
31
|
31
250000101 Screw plastite type k-40 m4 x 25 |
250000101 |
US $22.55 |
||
|
32
|
32
517303182
Panneau droit *r.h. panel
|
517303182 |
— | ||
|
33
|
33
517302805 Panneau ga. *panel-lh |
517302805 |
US $195.81 |
||
|
34
|
34
517302823 Barrure charn. *hinge lock |
517302823 |
US $11.66 |
||
