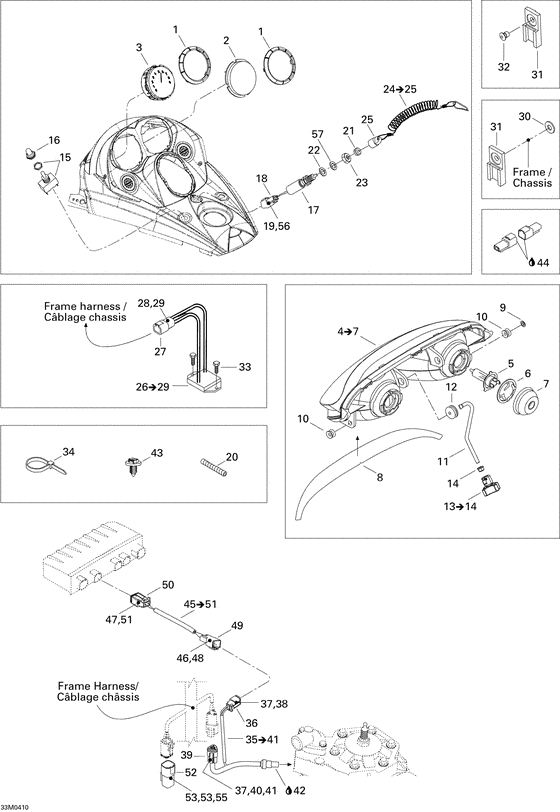

10- electrical system Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515175651
Anneau cadran *ring-gauge
|
515175651 |
— | ||
| replacement | |||||
|
1
|
1
515176242 Ring - gauge |
515176242 |
US $14.55 |
||
|
2
|
2
515175901
Gauge hole cover
|
515175901 |
— | ||
|
3
|
3
515176073
Compte-tours *tachometer
|
515176073 |
— | ||
|
4
|
4
515175909
Phare halogene *headlamp-halo.
Includes Items 4 to 7; |
515175909 |
— | ||
| replacement | |||||
|
4
|
4
515176311 Phare halogene *headlamp-halo.Includes Items 4 to 7; |
515176311 |
US $264.15 |
||
|
5
|
5
410504401
Ampoule halogen*bulb-hal.h4
|
410504401 |
— | ||
|
6
|
6
515175910 Porte ampoule *bulb holder |
515175910 |
US $14.67 |
||
|
7
|
7
515175911 Couvercle *cover |
515175911 |
US $15.73 |
||
|
8
|
8
516001328 Decalque phare *decal-headlamp |
516001328 |
US $5.07 |
||
|
9
|
9
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
10
|
10
515175760 Coussinet phare*bushing-headlamp |
515175760 |
US $38.85 |
||
|
11
|
11
515175521 Tige ajustement*rod-adjuster |
515175521 |
US $16.76 |
||
|
12
|
12
415100800 Grommet |
415100800 |
US $5.20 |
||
|
13
|
13
515175975 Manette *handleIncludes Items 13 to 14; |
515175975 |
US $9.40 |
||
|
14
|
14
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
15
|
15
410107300 Int.poig.chauf.*switch-grip he |
410107300 |
US $38.98 |
||
|
16
|
16
515175281 Couv.interrupt.*cover-switch |
515175281 |
US $67.92 |
||
|
17
|
17
515175653 Inter.frein *switch-brake |
515175653 |
US $21.42 |
||
|
18
|
18
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
19
|
19
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
20
|
20
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
21
|
21
570151100 Cap.plongeur *cap-plunger |
570151100 |
US $54.25 |
||
|
22
|
22
234001410 Washer-flat din.125a |
234001410 |
US $16 |
||
|
23
|
23
415073500
Ecrou inter. *nut-switch
|
415073500 |
— | ||
|
24
|
24
515167900
Capuchon ass. *cap-assy.
Includes Items 24 to 25; |
515167900 |
— | ||
|
25
|
25
572012200
New Genuine Part
|
572012200 |
— | ||
|
26
|
26
515175655 Regu. tension *regulator-volt |
515175655 |
US $148.89 |
||
|
27
|
27
278001477 Bloc 4 circ.fem*housing-tab |
278001477 |
US $62.27 |
||
|
28
|
28
515175568 Terminal male *treminal-male |
515175568 |
US $9.76 |
||
|
29
|
29
278001478 Cale 4 circ.mal*wedge-4 ways m |
278001478 |
US $28.80 |
||
|
30
|
30
517225900 Washer - flat |
517225900 |
US $2.40 |
||
|
31
|
31
515175917 Clip *clip |
515175917 |
US $11.17 |
||
|
32
|
32
293150037 Rivet avdel *rivet-avdel 3/16 |
293150037 |
US $7.30 |
||
|
33
|
33
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
34
|
34
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
35
|
35
515176041
Capteur temp. *temp. sensor
Includes Items 35 to 41; |
515176041 |
— | ||
|
36
|
36
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
37
|
37
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
38
|
38
515175675 Verrou femelle *lock-female |
515175675 |
US $29.35 |
||
|
39
|
39
515175671 Logement femel.*housing-female |
515175671 |
US $11.49 |
||
|
40
|
40
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
41
|
41
515175676 Verrou femelle *lock-female |
515175676 |
US $7.24 |
||
|
42
|
42
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
43
|
43
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
44
|
44
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
45
|
45
515175963
Cablage temp. *harness-temp.
Includes Items 45 to 51; |
515175963 |
— | ||
|
46
|
46
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
47
|
47
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
48
|
48
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
49
|
49
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
50
|
50
515175670 Logement femel.*housing-female |
515175670 |
US $10.51 |
||
|
51
|
51
515175706
Verrou femelle *lock-female
|
515175706 |
— | ||
|
52
|
52
515175668 Bloc 6 circ.fem*housing-tab |
515175668 |
US $16.92 |
||
|
53
|
53
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
54
|
54
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
55
|
55
515175823 Cosse male *terminal-male |
515175823 |
US $58.70 |
||
|
56
|
56
515175768 Cosse male *terminal-male |
515175768 |
US $2.60 |
||
|
57
|
57
510004418 Rondelle *washer |
510004418 |
US $73.30 |
||
