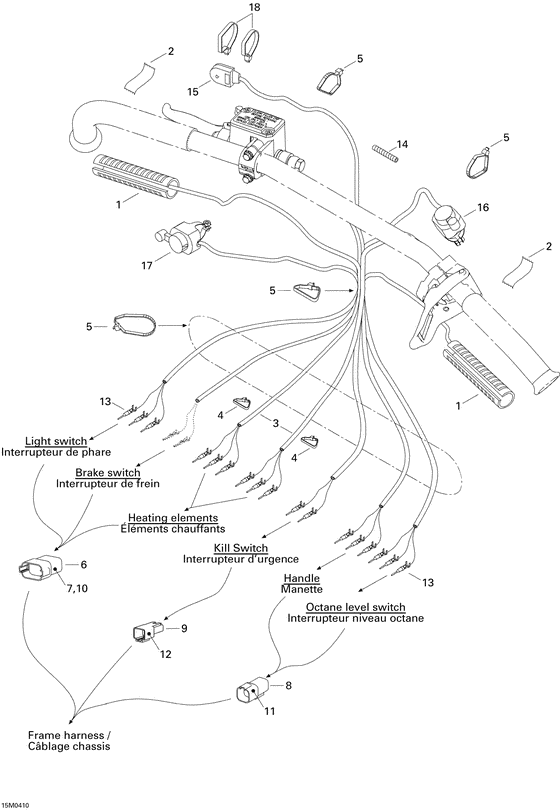

10- steering harness Diagram Bombardier MX Z
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176111
Element chauff.*heated film
|
515176111 |
— | ||
| replacement | |||||
|
1
|
1
515176139 Element chauff.*heated film |
515176139 |
US $58.09 |
||
|
2
|
2
293740005
Ruban de vinyl 3/4
|
293740005 |
— | ||
|
3
|
3
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
4
|
4
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
5
|
5
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
6
|
6
515175669 Logement male *housing-male |
515175669 |
US $36.69 |
||
|
7
|
7
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $21.15 |
||
|
8
|
8
515175668 Bloc 6 circ.fem*housing-tab |
515175668 |
US $16.92 |
||
|
9
|
9
515175665 Logement male *housing-male |
515175665 |
US $9.67 |
||
|
11
|
11
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $21.15 |
||
|
12
|
12
409207500 Verrou male *lock-male |
409207500 |
from US $4.23 |
||
|
13
|
13
515175768 Cosse male *terminal-male |
515175768 |
US $2.60 |
||
|
14
|
14
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
|
15
|
15
515176090
Bouton *switch
|
515176090 |
— | ||
| replacement | |||||
|
15
|
15
515176269 Bouton *switch |
515176269 |
US $56.05 |
||
|
16
|
16
515175685
Inter.urgence *switch-kill
|
515175685 |
— | ||
|
17
|
17
515175684
Inverseur *switch-dimmer
|
515175684 |
— | ||
|
18
|
18
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
