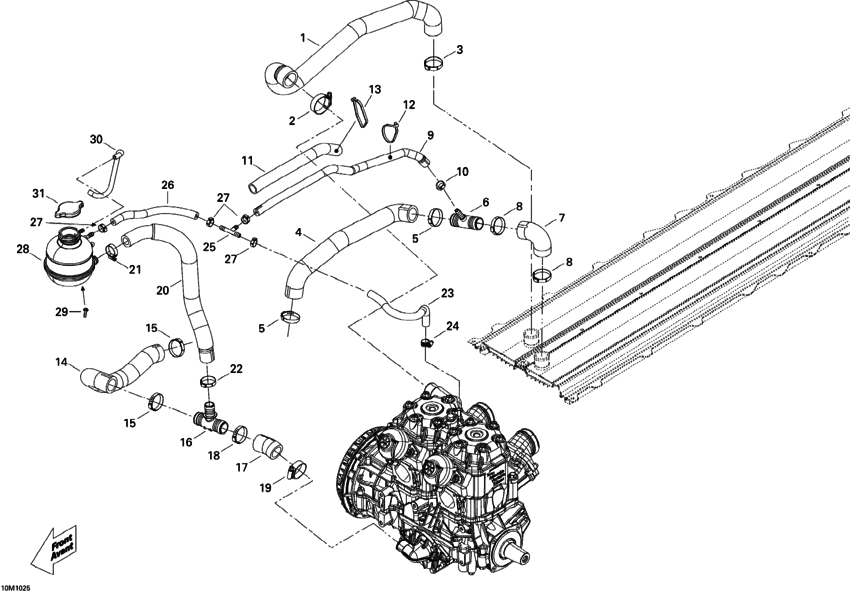

01- Cooling System Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509000431 Hose - engine outlet |
509000431 |
US $31.59 |
||
|
2
|
2
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
3
|
3
509000529 Bride serrage *clamp-gear |
509000529 |
US $43.92 |
||
|
4
|
4
509000670 RADIATOR HOSE |
509000670 |
US $33.61 |
||
|
5
|
5
509000529 Bride serrage *clamp-gear |
509000529 |
US $43.92 |
||
|
6
|
6
509000510 Raccord en t *t-fitting |
509000510 |
from US $13.01 |
||
|
7
|
7
509000671 RADIATOR HOSE |
509000671 |
US $18.33 |
||
|
8
|
8
509000529 Bride serrage *clamp-gear |
509000529 |
US $43.92 |
||
|
9
|
9
509000503 Breather hose |
509000503 |
US $24.45 |
||
|
10
|
10
293650047 Bride serrage *clamp-oetiker |
293650047 |
US $21.70 |
||
|
11
|
11
415080000
Gaine *protector tube
|
415080000 |
— | ||
|
12
|
12
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
13
|
13
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
14
|
14
509000673 RADIATOR HOSE |
509000673 |
US $21.39 |
||
|
15
|
15
509000529 Bride serrage *clamp-gear |
509000529 |
US $43.92 |
||
|
16
|
16
509000372 T-fitting |
509000372 |
US $10.52 |
||
|
17
|
17
509000675 ENGINE INLET HOSE |
509000675 |
US $16.29 |
||
|
18
|
18
509000181 Bride serrage *gear clamp |
509000181 |
US $5.71 |
||
|
19
|
19
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
20
|
20
509000551 Boyau remplis *filling hose |
509000551 |
US $30.57 |
||
|
21
|
21
293650124 Bride serrage *clamp-norma |
293650124 |
US $46.25 |
||
|
22
|
22
293650099 Clamp |
293650099 |
US $5.71 |
||
|
23
|
23
509000518 Boyau purge *breather hose |
509000518 |
US $22.39 |
||
|
24
|
24
293650170 Bride serrage *hose clamp |
293650170 |
US $27.20 |
||
|
25
|
25
293710024 Raccord en t *fitting-t |
293710024 |
US $14.72 |
||
|
26
|
26
509000519 Boyau purge *breather hose |
509000519 |
US $22.39 |
||
|
27
|
27
293650046 Bride serrage *clamp-oetiker |
293650046 |
US $19.15 |
||
|
28
|
28
509000421 Res.antigel *tank-coolant |
509000421 |
US $84.61 |
||
|
29
|
29
241151640 Vis pt.hexagona*screw-pt.hex.f |
241151640 |
US $9.45 |
||
|
30
|
30
415110000 Boyau polyure *hose-polyurethane |
415110000 |
US $116.70 |
||
|
31
|
31
509000187 Bouchon radiat.*pressure cap |
509000187 |
US $32.15 |
