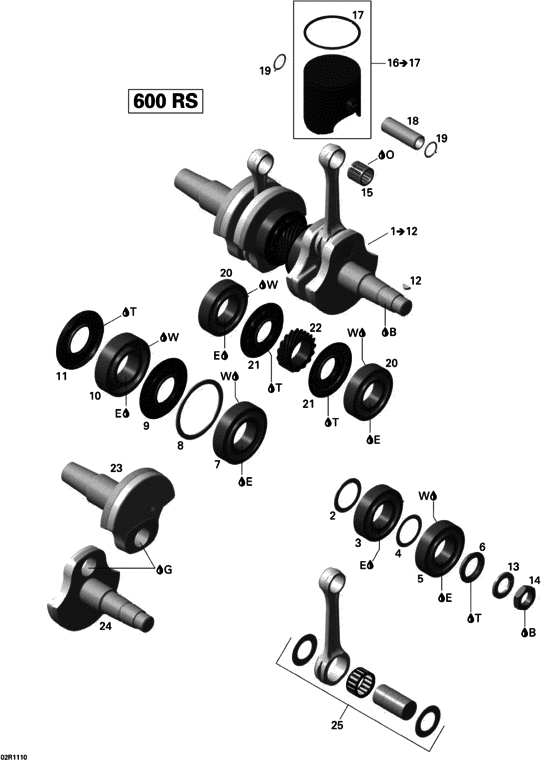

01- Crankshaft And Pistons Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420891633 Vilebrequin ass*crankshaft ass y |
420891633 |
US $2,496.98 |
||
|
2
|
2
420827765
Cale epaisseur *shim
|
420827765 |
— | ||
|
3
|
3
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
4
|
4
420427502 Rondelle ajus *washer-adj. |
420427502 |
US $16.30 |
||
|
5
|
5
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
6
|
6
420931793
Anneau etanche *seal-oil
|
420931793 |
— | ||
| replacement | |||||
|
6
|
6
420931795 SEAL-OIL |
420931795 |
US $19.52 |
||
|
7
|
7
420832600 Roulement bille*ball bearing |
420832600 |
US $73.41 |
||
|
8
|
8
420926190 Rondelle *washer |
420926190 |
US $12.55 |
||
|
9
|
9
420931910 Anneau etanche *seal-oil |
420931910 |
US $33.61 |
||
|
10
|
10
420832603 Roulement bille*ball bearing |
420832603 |
US $91.77 |
||
|
11
|
11
420931285
Anneau etanche *seal-oil
|
420931285 |
— | ||
|
12
|
12
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
14
|
14
420842234
Nut-hex.m22 x 1,5
|
420842234 |
— | ||
|
15
|
15
420832445 Roul.aiguille *needle bearing |
420832445 |
US $33.20 |
||
|
16
|
16
420892381
Piston *piston-assy
|
420892381 |
— | ||
|
17
|
17
420815295 Segment semi-tr*ring-semi trap |
420815295 |
US $71.35 |
||
|
18
|
18
420916411 Axe de piston *piston pin |
420916411 |
US $39.08 |
||
| replacement | |||||
|
18
|
18
420916412 Axe de piston *piston pin |
420916412 |
US $39.08 |
||
|
19
|
19
420845106 Circlip piston *circlip-piston |
420845106 |
from US $6.66 |
||
|
20
|
20
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
21
|
21
420931455 Anneau etanche *seal-oil |
420931455 |
US $39.07 |
||
|
22
|
22
420834355 Engrenage cent.*gear-central |
420834355 |
US $100.93 |
||
|
23
|
23
420818708 Vilebrequin pto*crankshaft-pto |
420818708 |
US $365.13 |
||
|
24
|
24
420818739 Vilebrequin mag*crankshaft-mag |
420818739 |
US $336.57 |
||
|
25
|
25
420890958 Rod repair kit, pto side |
420890958 |
US $428.37 |
||
|
25
|
25
420890959 Rod repair kit, mag side |
420890959 |
US $428.37 |
||
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
E
|
E
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
G
|
G
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
O
|
O
XXX
Not Sold
|
XXX |
— | ||
|
T
|
T
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
W
|
W
293550021 Graisse isoflex*grease-isoflex |
293550021 |
US $70.19 |
||
