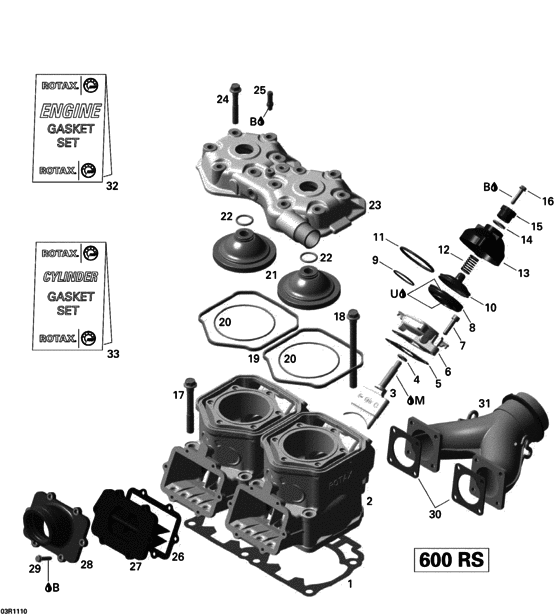

01- Cylinder, Exhaust Manifold And Reed Valve Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420931892
Joint 0.6 *gasket 0.6
|
420931892 |
— | ||
|
1
|
1
420931893
Joint 0.5 *gasket 0.5
|
420931893 |
— | ||
|
1
|
1
420931894
Joint 0.7 *gasket 0.7
|
420931894 |
— | ||
|
1
|
1
420931895
Joint 0.8 *gasket 0.8
|
420931895 |
— | ||
|
2
|
2
420623480
Cylindre *cylinder
|
420623480 |
— | ||
|
3
|
3
420854650 Exhaust valve slide |
420854650 |
US $61.15 |
||
|
4
|
4
420931542 Joint *gasket |
420931542 |
US $9.13 |
||
|
5
|
5
420430110 Joint torique *o ring |
420430110 |
US $57.10 |
||
|
6
|
6
420854455 Boitier *housing-valve |
420854455 |
US $74.41 |
||
|
7
|
7
205062544 Screw-socket hd.din.912 |
205062544 |
US $14.60 |
||
|
8
|
8
420260729 Manchon *bellows |
420260729 |
US $34.65 |
||
|
9
|
9
420838255 Spring-hose |
420838255 |
US $47.25 |
||
|
10
|
10
420854449 Soupape echapp.*valve-exhaust |
420854449 |
US $39.95 |
||
|
11
|
11
420939280
Spring-hose
|
420939280 |
— | ||
| replacement | |||||
|
11
|
11
420939281 Hose Spring |
420939281 |
US $9.45 |
||
|
12
|
12
420239944 Ressort *spring |
420239944 |
US $35.45 |
||
|
13
|
13
420911558 Couvercle soup.*cover-valve |
420911558 |
US $26.49 |
||
|
14
|
14
420430220 Joint torique *o ring |
420430220 |
US $50.40 |
||
|
15
|
15
420241221 Vis ajustement *screw-adjuster |
420241221 |
US $12.19 |
||
|
16
|
16
420241270 Screw-taptite m5 |
420241270 |
US $20.10 |
||
|
17
|
17
420640524 Screw-hex collar |
420640524 |
US $11.17 |
||
|
18
|
18
420640534 Screw-hex collar |
420640534 |
US $13.21 |
||
|
19
|
19
420931590 Bague caout. *ring-rubber |
420931590 |
US $13.16 |
||
|
20
|
20
293300026 Joint torique *o-ring |
293300026 |
US $22.39 |
||
|
21
|
21
420-623-356
Ajout*combustion chamber insert
|
420-623-356 |
— | ||
|
22
|
22
420430370
Joint torique *o ring
|
420430370 |
— | ||
| replacement | |||||
|
22
|
22
420430373 O-RING |
420430373 |
US $4.10 |
||
|
23
|
23
420623545 Couvercle cyl. *cover-cyl.head |
420623545 |
US $396.75 |
||
|
24
|
24
420941627 Collar-hex. screw m8x56,5 |
420941627 |
US $8.13 |
||
|
25
|
25
420924720 Hose nipple |
420924720 |
US $15.23 |
||
|
26
|
26
420630815 Gasket |
420630815 |
US $13.21 |
||
|
27
|
27
420-924-796
Reed valve assy
|
420-924-796 |
— | ||
|
28
|
28
420667500 Tubulure d adm.*socket-intake |
420667500 |
US $113.19 |
||
|
29
|
29
420241270 Screw-taptite m5 |
420241270 |
US $20.10 |
||
|
30
|
30
420850552 Joint *gasket |
420850552 |
US $10 |
||
|
31
|
31
420673422 EXHAUST MANIFOLD |
420673422 |
US $240.69 |
||
|
32
|
32
420889923
Gasket set engine
|
420889923 |
— | ||
|
33
|
33
420889927
Gasket set cylinder
|
420889927 |
— | ||
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
M
|
M
420297433 Molykote g-n 50gr. |
420297433 |
US $33.12 |
||
|
U
|
U
420297906 Compose etanche*compound sealing |
420297906 |
US $39.73 |
||
