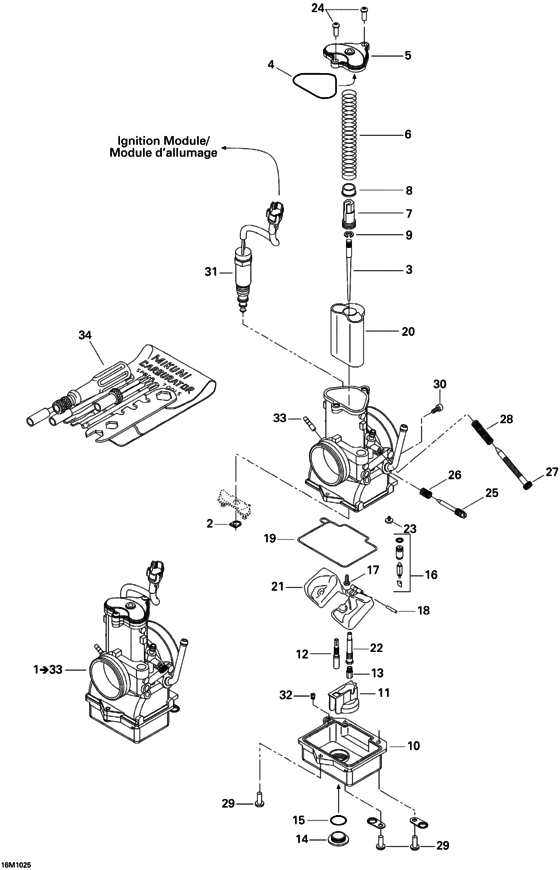

02- Carburetor Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
403138811 CARBURATOR TMX38-71 |
403138811 |
US $654.81 |
||
|
2
|
2
404161865 Joint tampon *packing |
404161865 |
US $22.39 |
||
|
3
|
3
404162117 Aiguille *needle |
404162117 |
US $79.46 |
||
|
4
|
4
404162111 Joint torique *o-ring |
404162111 |
US $17.12 |
||
|
5
|
5
404162110 Couvercle *top cap |
404162110 |
US $28.51 |
||
|
6
|
6
404162109 Ressort *spring |
404162109 |
US $17.12 |
||
|
7
|
7
404162108 Guide de retenu*giude holder |
404162108 |
US $23.41 |
||
|
8
|
8
404161863 Bague *ring |
404161863 |
US $17.34 |
||
|
9
|
9
404152200 Rondelle e *ring-e |
404152200 |
US $27.90 |
||
|
10
|
10
404162121 Float body |
404162121 |
US $72.37 |
||
|
11
|
11
404161855 Holder *holder |
404161855 |
US $22.39 |
||
|
12
|
12
404162134 PILOT JET 55 |
404162134 |
US $11.85 |
||
|
13
|
13
404162122
Gicleur mj 280 *jet-main 280
|
404162122 |
— | ||
| replacement | |||||
|
13
|
13
404100500 Gicleur mj 280 *jet-main 280 |
404100500 |
US $39.60 |
||
|
14
|
14
404107400 Vis bouchon *screw-drain plug |
404107400 |
US $22.39 |
||
|
15
|
15
404107300 Joint torique *o-ring |
404107300 |
US $39.60 |
||
|
16
|
16
404161868 Pointeau vs 1.5*valve needle |
404161868 |
US $73.41 |
||
|
17
|
17
404138600 Vis *screw |
404138600 |
US $3.15 |
||
|
18
|
18
404161860 Goupille *pin |
404161860 |
US $11.85 |
||
|
19
|
19
404161993 Joint torique *o-ring |
404161993 |
US $24.45 |
||
|
20
|
20
404162106 Tiroir acc.4.0 *piston-val.4.0 |
404162106 |
US $198.85 |
||
|
21
|
21
404161859
Flotte *float
|
404161859 |
— | ||
|
22
|
22
404162135
Jet Needle
|
404162135 |
— | ||
|
23
|
23
404161861 Vis *screw |
404161861 |
US $4.20 |
||
|
24
|
24
404138700 Vis *screw |
404138700 |
US $55.80 |
||
|
25
|
25
404161866 Adjusteur *adjuster |
404161866 |
US $15.90 |
||
|
26
|
26
404132400 Ressort *spring |
404132400 |
US $7.92 |
||
|
27
|
27
404161850 Adjusteur *adjuster |
404161850 |
US $22.39 |
||
|
28
|
28
404161849 Ressort *spring-adj. |
404161849 |
US $11.85 |
||
|
29
|
29
404161848 Vis *screw |
404161848 |
US $4.20 |
||
|
30
|
30
404162100 Vis *screw |
404162100 |
US $9.50 |
||
|
31
|
31
404161998 Solenoide *selenoid |
404161998 |
US $277.41 |
||
|
32
|
32
404162098 Gicleur puissance*power jet 160 |
404162098 |
US $10.56 |
||
|
33
|
33
404162123 Nipple |
404162123 |
US $46.89 |
||
|
34
|
34
404112000 Trousse outils *tool kit |
404112000 |
US $79.53 |
||
