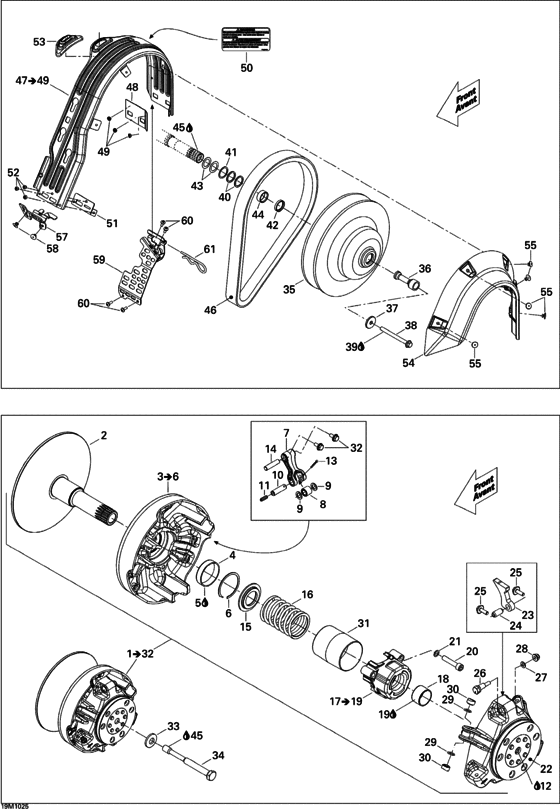

05- Pulley System Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
XXX
Not Sold
|
XXX |
— | ||
|
2
|
2
417223012 Flasque fixe as*fix flange ass |
417223012 |
US $426.33 |
||
|
3
|
3
417222971 Flasque coul.as*flange-slid.assy |
417222971 |
US $533.41 |
||
|
4
|
4
417222758 Douille *bushing |
417222758 |
US $24.82 |
||
|
5
|
5
293800118 Loctite 680 *loctite 680 |
293800118 |
US $60.23 |
||
|
6
|
6
293370037 Anneau retenue *circlip |
293370037 |
US $3.64 |
||
|
7
|
7
417222671 Levier ass. *lever-assy |
417222671 |
US $54.71 |
||
|
8
|
8
417222947 Rouleau ass. *roller-ass. |
417222947 |
US $23.43 |
||
|
9
|
9
417004302 Rondelle butee *washer-stopper |
417004302 |
US $18.72 |
||
|
10
|
10
417222595 Goupille *pin |
417222595 |
US $67.17 |
||
|
11
|
11
250000408 SCREW SOCKET SET DIN.913 S.GRIP |
250000408 |
US $12.15 |
||
|
12
|
12
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
13
|
13
732958001 Goupille fendue*pin-cotter |
732958001 |
US $2.14 |
||
|
14
|
14
417009202 Axe de levier *axle-lever |
417009202 |
US $4.79 |
||
| replacement | |||||
|
14
|
14
417223164 LEVER AXLE |
417223164 |
US $4.81 |
||
|
15
|
15
417222312 Siege ressort *seat-spring |
417222312 |
US $9.50 |
||
|
16
|
16
417222958 Ressort gr/gr *spring-gre/gre |
417222958 |
US $38.71 |
||
|
17
|
17
417007500 Couv.ressort as*cover-spring assy. |
417007500 |
US $44.83 |
||
|
18
|
18
417009204 Douille *bushing |
417009204 |
US $19.52 |
||
|
19
|
19
413703100 Loctite 609 *loctite-609 |
413703100 |
from US $31.18 |
||
|
20
|
20
205084044 Screw-socket hd.din.912 |
205084044 |
US $18.45 |
||
|
21
|
21
250200009 Ribbed lock washer 8mm bn791 |
250200009 |
US $27.20 |
||
|
22
|
22
417-223-203
Cuvette regul.a*govern.cup as
|
417-223-203 |
— | ||
|
23
|
23
417223281 RAMP 443 |
417223281 |
US $100.83 |
||
|
24
|
24
250400050 SPRING PIN M10 |
250400050 |
US $11.88 |
||
|
25
|
25
250000418 SERRATED HEX. FLANGE BOLT S.GR |
250000418 |
US $32.76 |
||
|
26
|
26
417223197 CALIBRATION SCREW |
417223197 |
US $57.99 |
||
|
27
|
27
417005600 Rondelle *washer |
417005600 |
US $32.76 |
||
|
28
|
28
233061414 Nut-flange hexagonal din.6927 |
233061414 |
US $21.40 |
||
|
29
|
29
732401030 Joint torique *o-ring |
732401030 |
US $3.20 |
||
|
30
|
30
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
31
|
31
417009205 Protecteur *guard |
417009205 |
US $19.31 |
||
|
32
|
32
250000416 SERRATED HEX. FLANGE BOLT M6 |
250000416 |
US $32.76 |
||
|
33
|
33
250200006 Washer-spring conical |
250200006 |
US $89.40 |
||
|
34
|
34
417300393 DRIVE PULLEY BOLT |
417300393 |
US $60.13 |
||
|
35
|
35
417127207 DRIVEN PULLEY ASS Y |
417127207 |
US $749.67 |
||
|
36
|
36
417127149 Douille *bushing |
417127149 |
US $19.33 |
||
|
37
|
37
503183100 Rondelle *washer |
503183100 |
US $40.80 |
||
|
38
|
38
207689534 Hex. flanged scew m8 x 95 |
207689534 |
US $5.46 |
||
|
39
|
39
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
40
|
40
417300252 Entretoise *spacer |
417300252 |
US $5.07 |
||
|
41
|
41
417300265 Entretoise *spacer |
417300265 |
US $14.20 |
||
|
42
|
42
504149100 Entretoise *spacer |
504149100 |
US $11.17 |
||
|
43
|
43
504112000 Cale epaisseur *shim |
504112000 |
US $30.35 |
||
|
44
|
44
417300399 SPACER |
417300399 |
US $16.29 |
||
|
45
|
45
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
46
|
46
417300288 Courroie *drive belt |
417300288 |
US $220.29 |
||
|
47
|
47
417300384
Belt Guard Ass'y. Includes 47 To 49
|
417300384 |
— | ||
|
48
|
48
417300372 Plaque *plate |
417300372 |
US $16.29 |
||
|
49
|
49
293150091 Rivet henrob *rivet-henrob |
293150091 |
US $19.50 |
||
|
50
|
50
516002670 Etiquette secur*security-label |
516002670 |
US $0.02 |
||
|
51
|
51
417300380 Renfort *reinforcement |
417300380 |
US $5.07 |
||
|
52
|
52
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
53
|
53
417300381 Guide *guide |
417300381 |
US $8.13 |
||
|
54
|
54
417300356 Prot.lateral *side protector assy |
417300356 |
US $16.71 |
||
|
55
|
55
293150103 Pop rivet 3/16 |
293150103 |
US $18.25 |
||
|
57
|
57
417300360 Attache garde *brk guard belt |
417300360 |
US $12.19 |
||
|
58
|
58
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
59
|
59
417300378 Attache gard.co*belt guard brkt |
417300378 |
US $18.33 |
||
|
60
|
60
250000145 Torx-truss m/s gm6047m |
250000145 |
US $1.90 |
||
| replacement | |||||
|
60
|
60
250000742 TORX-TRUSS M/S M5 X 14 NYLON |
250000742 |
US $1.89 |
||
|
61
|
61
114045200 Goup.surete *pin-hair |
114045200 |
US $53.45 |
||
