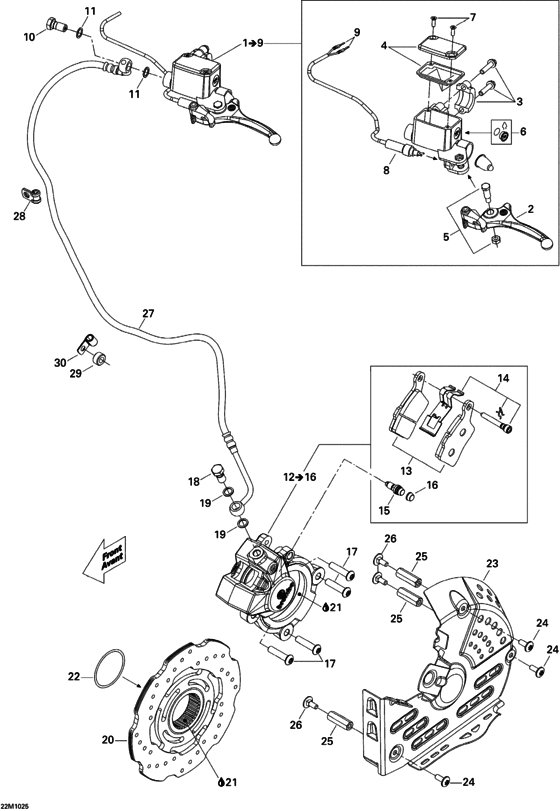

06- Hydraulic Brakes Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
507032491
Cylinder master
|
507032491 |
— | ||
|
2
|
2
507032428 Levier *lever |
507032428 |
US $79.53 |
||
|
3
|
3
507032477 Bride *clamp |
507032477 |
US $26.30 |
||
|
4
|
4
415029900 Capuchon *cap |
415029900 |
US $36.69 |
||
|
5
|
5
415030000 Axe *pin |
415030000 |
US $17.12 |
||
|
6
|
6
414990600
Fenetre *window
|
414990600 |
— | ||
|
7
|
7
216141260 Screw-ctsk.fl.hd.ph.din.965a-a2 |
216141260 |
US $9.80 |
||
|
8
|
8
507032366 Micro contact *microswitch |
507032366 |
US $94.44 |
||
|
9
|
9
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
10
|
10
414920500 Boulon banjo *bolt-banjo |
414920500 |
US $9.61 |
||
|
11
|
11
414920600 Washer for hose connection |
414920600 |
US $14.70 |
||
|
12
|
12
507032501 Etrier *caliper |
507032501 |
US $437.55 |
||
|
13
|
13
507032489 Plaquette frein*brake pads kit |
507032489 |
US $87.74 |
||
|
14
|
14
507032474 Ens. ressort *spring brake |
507032474 |
US $36.69 |
||
|
15
|
15
507032475 Vis purge *bleeder |
507032475 |
US $17.12 |
||
|
16
|
16
414989700
Capuchon qts 20*boot-qts 20
|
414989700 |
— | ||
|
17
|
17
250000301
Screw-torx button head m8 x 35 s.grip
|
250000301 |
— | ||
|
18
|
18
414920500 Boulon banjo *bolt-banjo |
414920500 |
US $9.61 |
||
|
19
|
19
414920600 Washer for hose connection |
414920600 |
US $14.70 |
||
|
20
|
20
507032488
Brake disc
|
507032488 |
— | ||
|
21
|
21
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
22
|
22
293300134 Joint torique *o ring |
293300134 |
US $2.18 |
||
|
23
|
23
507032446 Prot. disque *disk protector |
507032446 |
US $24.45 |
||
|
24
|
24
250000365 Torx-truss m/s tcp nylon patch m6 x 16 |
250000365 |
US $13.60 |
||
|
25
|
25
507032497 Tube filete *threaded tube |
507032497 |
US $12.22 |
||
|
26
|
26
207761644 Bolt-carriage din.603 s.grip m6 x 16 |
207761644 |
US $2.72 |
||
|
27
|
27
507-032-505
Boyau *hose
|
507-032-505 |
— | ||
|
28
|
28
705600459 Clamp |
705600459 |
US $5.30 |
||
|
29
|
29
293900098 BUSHING |
293900098 |
US $14.25 |
||
|
30
|
30
414176000 Attache collier*open clamp |
414176000 |
US $27 |
