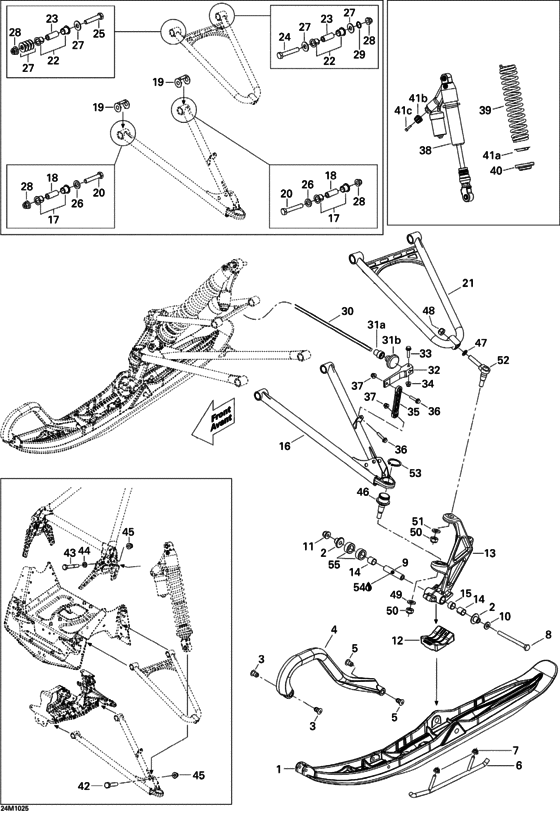

07- Front Suspension And Ski Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
505072205 Skipilot5.7x *skipilot5.7x |
505072205 |
US $152.95 |
||
|
2
|
2
505071781 Coussinet *cushion |
505071781 |
US $18.16 |
||
|
3
|
3
505071812 Attache *retainer |
505071812 |
US $5.44 |
||
|
4
|
4
505071674 Poignee jaune *handle-yellow |
505071674 |
US $33.61 |
||
|
5
|
5
505072133 Attache *retainer |
505072133 |
US $6.19 |
||
|
6
|
6
505072223
Lisse carbure *runner-carbide
|
505072223 |
— | ||
|
7
|
7
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
8
|
8
230003044
Screw-hex.cap m10 x 130 iso.4014
|
230003044 |
— | ||
| replacement | |||||
|
8
|
8
230100044 Screw-hex.cap iso.4017 |
230100044 |
US $14.05 |
||
|
9
|
9
506133300 Entretoise *spacer |
506133300 |
US $22.44 |
||
|
10
|
10
732900049 Rondelle *washer |
732900049 |
US $14.50 |
||
|
11
|
11
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
12
|
12
505071779 Butee de ski *stopper-ski |
505071779 |
US $14.67 |
||
|
13
|
13
505072801 LH SKI LEG |
505072801 |
US $220.29 |
||
|
13
|
13
505072803 RH SKI LEG |
505072803 |
US $220.29 |
||
|
14
|
14
505072663 Coussinet *cushion |
505072663 |
US $7.33 |
||
|
15
|
15
505072747 Spacer |
505072747 |
US $18.34 |
||
|
16
|
16
505072652 Bras inferieur *lower arm |
505072652 |
US $254.97 |
||
|
16
|
16
505072653 Bras inferieur *lower arm |
505072653 |
US $254.97 |
||
|
17
|
17
503191766 Coussinet *cushion |
503191766 |
US $5.53 |
||
|
18
|
18
505072401 Douille alum. *bushing-alum. |
505072401 |
US $15.90 |
||
|
19
|
19
505072634 Plaque d usure *wear plate |
505072634 |
US $5.03 |
||
|
20
|
20
250000291 Screw-hex.cap m10 x 70 iso.8765 |
250000291 |
US $1.63 |
||
|
21
|
21
415129535
Lh Upper Arm
|
415129535 |
— | ||
|
21
|
21
415129536
Rh Upper Arm
|
415129536 |
— | ||
|
22
|
22
503191555 Coussinet pivot*swivel-bushing |
503191555 |
US $5.54 |
||
|
23
|
23
505072143 Douille *bushing |
505072143 |
US $9.93 |
||
|
24
|
24
250000387 Screw-hex.cap m10 x 65 din.960 |
250000387 |
US $11.17 |
||
|
25
|
25
250000290 Screw-hex.cap m10 x 60 iso.8765 |
250000290 |
US $2.72 |
||
| replacement | |||||
|
25
|
25
250001023 Screw-hex.cap m10 x 60 iso.8765 |
250001023 |
US $2.72 |
||
|
26
|
26
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
27
|
27
505072392 Rondelle *washer |
505072392 |
US $5.25 |
||
|
28
|
28
250100088 Ecrou m10 *nut m10 |
250100088 |
US $4.10 |
||
|
29
|
29
505072448 Joint torique *o ring |
505072448 |
US $2.55 |
||
|
30
|
30
505072602 Stabilisateur *stabilisator |
505072602 |
US $84.22 |
||
|
31a
|
31a
505072064 Coussinet *bushing |
505072064 |
US $2.18 |
||
|
31b
|
31b
572091300 Bouchon *cap |
572091300 |
US $8.55 |
||
|
32
|
32
505072394 Levier stabil.u*lever-stabil.mach. |
505072394 |
US $15.90 |
||
|
33
|
33
207663046 Screw-hex.flange din.6921 |
207663046 |
US $2.19 |
||
|
34
|
34
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
35
|
35
505072204 Joint *link |
505072204 |
US $22.39 |
||
|
36
|
36
207663046 Screw-hex.flange din.6921 |
207663046 |
US $2.19 |
||
|
37
|
37
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
38
|
38
505072810 RH HPG FRONT SHOCK |
505072810 |
US $602.79 |
||
|
38
|
38
505072811 LH HPG FRONT SHOCK |
505072811 |
US $602.79 |
||
|
39
|
39
505072845 DEEP BLACK SPRING |
505072845 |
US $61.15 |
||
|
40
|
40
505072635 Butee ressort *spring stopper |
505072635 |
US $13.45 |
||
|
41a
|
41a
706200793 CAP |
706200793 |
US $5.87 |
||
|
41b
|
41b
505072753 ADJUSTMENT KNOB |
505072753 |
US $2.01 |
||
|
41c
|
41c
205031060 SOCKET SCREW M3 X 10 |
205031060 |
US $10.05 |
||
|
42
|
42
207005544 Screw-hex.cap iso.4014 |
207005544 |
US $14.35 |
||
|
43
|
43
207006544 Screw-hex.cap iso.4014 |
207006544 |
US $19.15 |
||
|
44
|
44
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
45
|
45
233201414 Nut-flange elastic din.6926 |
233201414 |
US $20.10 |
||
|
46
|
46
505072682 Joint rotule *ball joint |
505072682 |
US $70.45 |
||
| replacement | |||||
|
46
|
46
505073636 BALL JOINT |
505073636 |
US $61.15 |
||
|
47
|
47
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
48
|
48
250100089 Ecrou m12 *nut m12 |
250100089 |
US $3.60 |
||
|
49
|
49
234021410 Washer-flat din.125a |
234021410 |
US $9.50 |
||
|
50
|
50
250100089 Ecrou m12 *nut m12 |
250100089 |
US $3.60 |
||
|
51
|
51
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
52
|
52
505072257 Joint rotule su*joint-ball upp |
505072257 |
US $46.60 |
||
|
53
|
53
293370035 Circlip *circlip |
293370035 |
US $34 |
||
|
54
|
54
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
55
|
55
505072807 SPACER |
505072807 |
US $17.12 |
||
