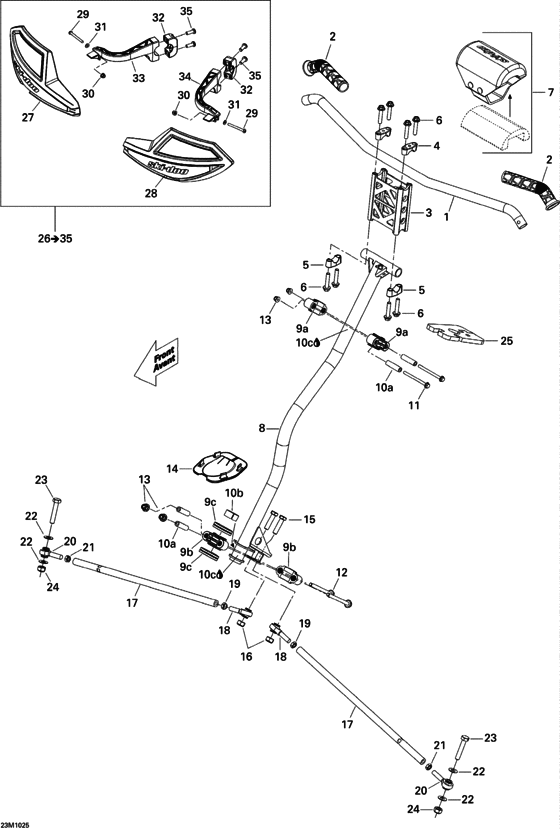

07- Steering Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506152087 Hand bar paint |
506152087 |
US $103.99 |
||
|
2
|
2
506152226
Grip
|
506152226 |
— | ||
| replacement | |||||
|
2
|
2
506152486 GRIP |
506152486 |
US $17.09 |
||
|
3
|
3
506152457 HANDLE BAR EXTENSION |
506152457 |
US $97.89 |
||
|
4
|
4
506152394
Support guidon *steering support
|
506152394 |
— | ||
|
5
|
5
506152395 Support guidon *steering support |
506152395 |
US $12.22 |
||
|
6
|
6
250000352 Screw hexagonal flange m8 |
250000352 |
US $13.05 |
||
|
7
|
7
506152165
Ss.securite *pad-steering
|
506152165 |
— | ||
|
8
|
8
506152478 ARBRE DIR.PEINT*TUBE-MAIN PAINT |
506152478 |
US $232.53 |
||
|
9a
|
9a
506152293 Demi logement *half-housing |
506152293 |
US $9.78 |
||
|
9b
|
9b
506152217 Demi logement *half-housing |
506152217 |
US $12.39 |
||
|
9c
|
9c
506152218
Joint vib. *vibrat. gasket
|
506152218 |
— | ||
|
10a
|
10a
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
10b
|
10b
506152440 RETAINING RING |
506152440 |
US $21.39 |
||
|
10c
|
10c
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— | ||
|
11
|
11
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
12
|
12
207667044 Screw-hex.flange din.6921 |
207667044 |
US $1.09 |
||
|
13
|
13
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
14
|
14
506152163 Plaque *plate |
506152163 |
US $11.93 |
||
|
15
|
15
207004034 Screw-hex.cap iso 4014 |
207004034 |
US $2.01 |
||
|
16
|
16
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
17
|
17
506152413 Barre accoupl. *tie rod |
506152413 |
US $55.03 |
||
|
18
|
18
506152081 Joint rotule *ball joint |
506152081 |
US $40.39 |
||
|
19
|
19
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
20
|
20
506152019 Joint rotule *ball joint |
506152019 |
US $44.93 |
||
|
21
|
21
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
22
|
22
506152194 Rondelle *washer |
506152194 |
US $4.15 |
||
|
23
|
23
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
24
|
24
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
25
|
25
506152476 COUSSINET *CUSHION |
506152476 |
US $9.78 |
||
|
26
|
26
517303793
Deflecteur emb *deflector kit
|
517303793 |
— | ||
|
27
|
27
517303623 Deflecteur dr. *rh.deflector |
517303623 |
US $36.07 |
||
|
28
|
28
517303624 Deflecteur ga. *lh.deflector |
517303624 |
US $36.07 |
||
|
29
|
29
205444086 Screw-socket bn.hd.gm6174 |
205444086 |
US $21.90 |
||
|
30
|
30
232541484 Nut-stop elastic din.985 |
232541484 |
US $9.50 |
||
|
31
|
31
234041480 Washer-flat din.125a |
234041480 |
US $9.50 |
||
|
32
|
32
517303264 Bride en u *u clamp |
517303264 |
US $12.67 |
||
|
33
|
33
517303590 Supp.deflecteur*support-deflector |
517303590 |
US $14.67 |
||
|
34
|
34
517303591 Supp.deflecteur*support-deflector |
517303591 |
US $14.67 |
||
|
35
|
35
250000172 Screw-socket bn.hd.gm6047m nylon patch |
250000172 |
US $19.60 |
||
