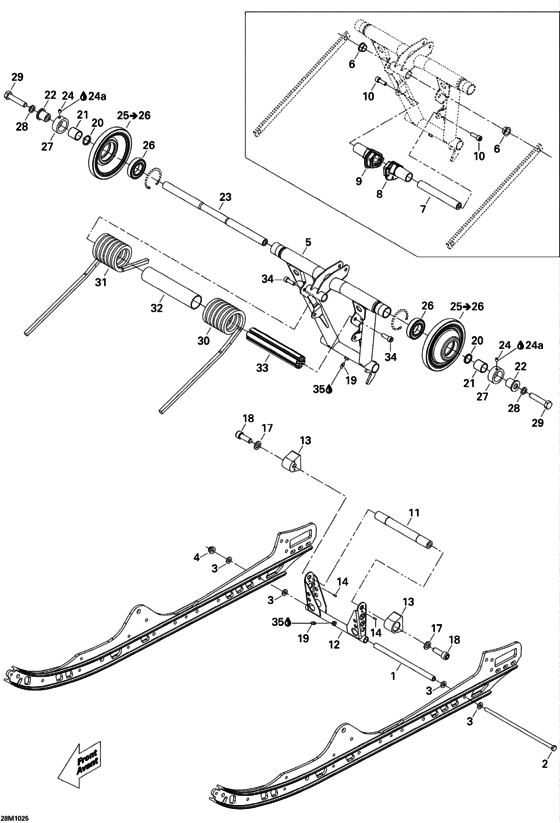

08- Rear Arm Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503189156 Axe jumelle *axle-pivot |
503189156 |
US $19.57 |
||
|
2
|
2
732601198
Boulon 248mm *bolt 248mm
|
732601198 |
— | ||
|
3
|
3
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
4
|
4
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
5
|
5
503192087 Bras arriere s.*arm-rear w. |
503192087 |
US $183.57 |
||
|
6
|
6
503191555 Coussinet pivot*swivel-bushing |
503191555 |
US $5.54 |
||
|
7
|
7
503191178 Axe de came *axe cam |
503191178 |
US $24.45 |
||
|
8
|
8
503191191 Came ressort ga*cam-spring lh |
503191191 |
US $13.45 |
||
|
9
|
9
503191190 Came ressort dr*cam-spring rh |
503191190 |
US $13.45 |
||
|
10
|
10
205582544 Screw-socket hd.din.912 s.grip |
205582544 |
US $9.80 |
||
|
11
|
11
503192095 Axe inferieur *shaft-lower |
503192095 |
US $42.81 |
||
|
12
|
12
503191302 Jumelle soudee *arm-pivot weld. |
503191302 |
US $110.13 |
||
|
13
|
13
503192320 BLOCK |
503192320 |
US $42.81 |
||
|
14
|
14
250400005 Dowel-pin 4 x 8mm |
250400005 |
US $19.60 |
||
|
17
|
17
503189148 Rondelle *washer |
503189148 |
US $18.30 |
||
|
18
|
18
205523587 Screw-socket hd.din.912 s.grip |
205523587 |
US $8.04 |
||
|
19
|
19
408200700 Graisseur *grease fitting |
408200700 |
US $46.60 |
||
|
20
|
20
503191774 Rondelle *washer |
503191774 |
US $2.18 |
||
|
21
|
21
503191773 Couss. all *ext. bushing |
503191773 |
US $13.45 |
||
|
22
|
22
503191775 Coussinet *bushing |
503191775 |
US $14.67 |
||
|
23
|
23
503191776 Axe superieur *shaft-upper |
503191776 |
US $42.81 |
||
|
24
|
24
206260844 Screw-set socket din.913 |
206260844 |
US $9.60 |
||
|
24a
|
24a
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
25
|
25
503191777 Roue 144 *wheel-144 |
503191777 |
US $48.93 |
||
|
26
|
26
503191778 Roulement bille*ball bearing |
503191778 |
US $12.22 |
||
|
27
|
27
503191782 Bague d appui *ring-retaining |
503191782 |
US $26.90 |
||
|
28
|
28
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
29
|
29
207226044 Screw-hex.cap iso.4014 s.grip |
207226044 |
US $19.45 |
||
|
30
|
30
503191615 Ressort ga.pein*spring lh pain |
503191615 |
US $55.03 |
||
|
31
|
31
503191614 Ressort peint *spring paint |
503191614 |
US $55.03 |
||
|
32
|
32
503191345 Douille plast. *bushing-plastic |
503191345 |
US $5.53 |
||
|
33
|
33
503191344 Axe ressort *spring axle |
503191344 |
US $29.53 |
||
|
34
|
34
205582544 Screw-socket hd.din.912 s.grip |
205582544 |
US $9.80 |
||
|
35
|
35
219700417
Graise syntheti*grease-synthe.
|
219700417 |
— |
