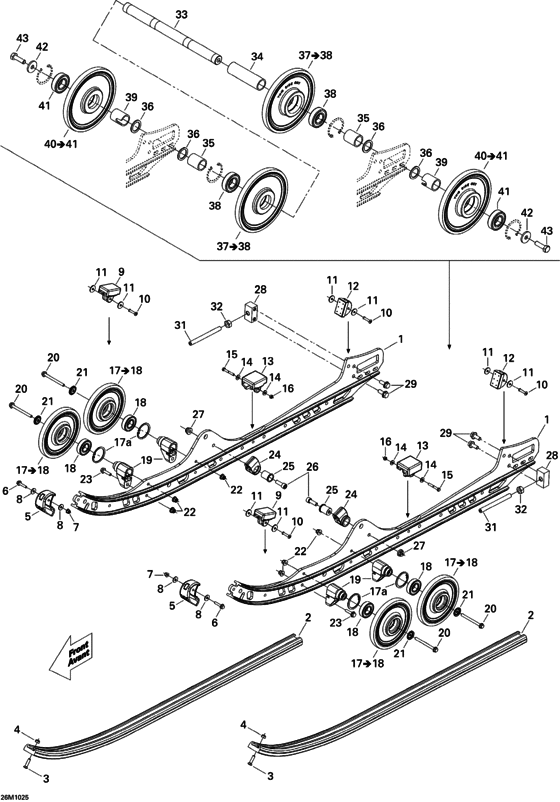

08- Rear Suspension Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503192291 RUNNER |
503192291 |
US $394.71 |
||
|
2
|
2
503190573 Glissiere noir 121" *slider shoe black |
503190573 |
US $26.49 |
||
|
3
|
3
208562531 Screw-ctsk.ov.hd.ph.din.966a |
208562531 |
US $10.88 |
||
|
4
|
4
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
5
|
5
503191137 Protecteur rail*prot-runner |
503191137 |
US $9.78 |
||
|
6
|
6
207652544 Screw-hex.flange din.6921 |
207652544 |
US $0.65 |
||
|
7
|
7
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
8
|
8
391301600 Rondelle *washer |
391301600 |
US $30.50 |
||
|
9
|
9
503190576 Butee caout. *stopper-rubber |
503190576 |
US $11.59 |
||
|
10
|
10
293150142 Rivet-pop 3/16 *rivet-pop 3/16 |
293150142 |
US $2.55 |
||
|
11
|
11
503191273 Rondelle * washer |
503191273 |
US $9.78 |
||
|
12
|
12
503191291 Butee caout. *stopper-rubber |
503191291 |
US $18.34 |
||
|
13
|
13
503192099 Butee caout. *stopper-rubber |
503192099 |
US $15.90 |
||
|
14
|
14
391301700
Rondelle *washer
|
391301700 |
— | ||
|
15
|
15
207053544 Screw-hex.cap din.931 |
207053544 |
US $14.80 |
||
|
16
|
16
232551414 Nut-stop elastic din.985 |
232551414 |
US $11.20 |
||
|
17
|
17
503191316 Roue 141 *wheel-141 |
503191316 |
US $41.91 |
||
|
17a
|
17a
415129371 Anneau retenue *circlip |
415129371 |
US $15.79 |
||
|
18
|
18
503190396 Roulement bille*ball bearing |
503190396 |
US $15.78 |
||
|
19
|
19
503191833
Support moulee *support-cast.
|
503191833 |
— | ||
| replacement | |||||
|
19
|
19
503193894 CASTED SUPPORT |
503193894 |
US $13.77 |
||
|
20
|
20
207667044 Screw-hex.flange din.6921 |
207667044 |
US $1.09 |
||
|
21
|
21
503191820 Cup washer |
503191820 |
US $6.15 |
||
|
22
|
22
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
23
|
23
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
24
|
24
503191183
Support ressort*support-spring
|
503191183 |
— | ||
| replacement | |||||
|
24
|
24
861805547 Spring Support |
861805547 |
US $10.15 |
||
|
25
|
25
503190754 Coussinet reten*cushion-retain. |
503190754 |
US $9.72 |
||
| replacement | |||||
|
25
|
25
861805547 Spring Support |
861805547 |
US $10.15 |
||
|
26
|
26
205082544 Screw-socket hd.din.912 |
205082544 |
US $14.80 |
||
|
27
|
27
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
28
|
28
503191984 Tendeur *tensioner |
503191984 |
US $34.65 |
||
|
29
|
29
207582044 Screw-hex.flange din.6921 s.grip |
207582044 |
US $21.80 |
||
|
31
|
31
504152602 Vis de reglage *screw adjusting |
504152602 |
US $9.13 |
||
|
32
|
32
233601416 Nut-locking elastic din.982 |
233601416 |
US $21.90 |
||
|
33
|
33
503167900 Essieu arriere *axle-rear |
503167900 |
US $122.37 |
||
|
34
|
34
503156000 Entretoise *spacer |
503156000 |
US $51.30 |
||
|
35
|
35
503182900 Entretoise *spacer |
503182900 |
US $9.78 |
||
|
36
|
36
503180400 Rondelle *washer |
503180400 |
US $3.28 |
||
|
37
|
37
503189568
Roue 165 *wheel-165
|
503189568 |
— | ||
|
38
|
38
293350055
Ball bearing
|
293350055 |
— | ||
| replacement | |||||
|
38
|
38
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
39
|
39
503189809 Entretoise *spacer |
503189809 |
US $14.67 |
||
|
40
|
40
503189568
Roue 165 *wheel-165
|
503189568 |
— | ||
|
41
|
41
293350055
Ball bearing
|
293350055 |
— | ||
| replacement | |||||
|
41
|
41
293350115 ROULEMENT BILLE*BALL BEARING |
293350115 |
US $12.85 |
||
|
42
|
42
503183300 Rondelle *washer |
503183300 |
US $75.10 |
||
|
43
|
43
250000019 Screw-hex.cap with nylon patch |
250000019 |
US $21.90 |
||
