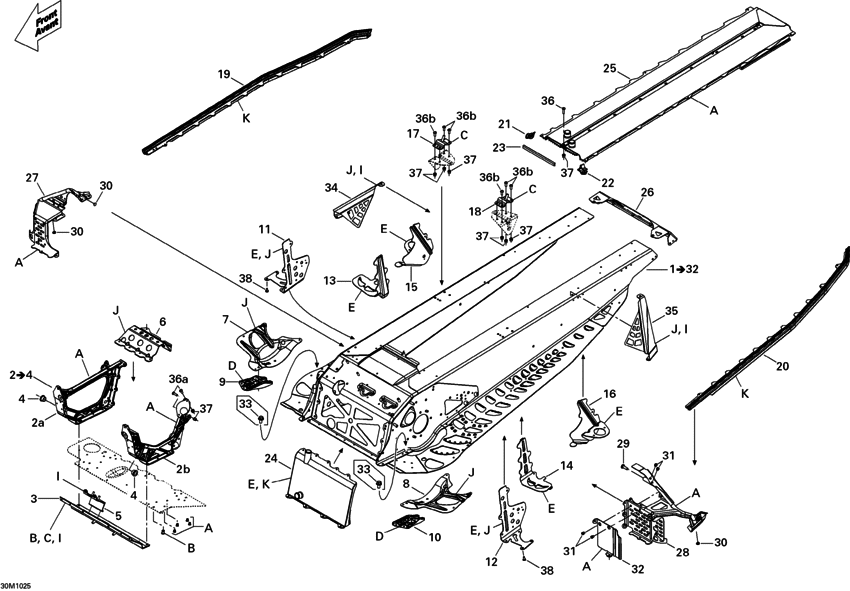

09- Frame Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415-129-470
Chassis *frame service
|
415-129-470 |
— | ||
|
2
|
2
518-326-290
Module e *module e
|
518-326-290 |
— | ||
|
2a
|
2a
518325922
Longeron dr *rh member
|
518325922 |
— | ||
|
2b
|
2b
518325923
Longeron ga *lh member
|
518325923 |
— | ||
|
3
|
3
518326198 Traverse avant *front member |
518326198 |
US $50.97 |
||
|
4
|
4
505070954
Coussinet *cushion
|
505070954 |
— | ||
| replacement | |||||
|
4
|
4
505072690 Coussinet *bushing |
505072690 |
US $12.90 |
||
|
5
|
5
518325943 Support mag *mag support |
518325943 |
US $22.39 |
||
|
6
|
6
518325796 Traverse centr.*cross-link |
518325796 |
US $67.29 |
||
|
7
|
7
518326468 FOOT REINFORCEMENT RH |
518326468 |
US $29.53 |
||
|
8
|
8
518326469 FOOT REINFORCEMENT LH |
518326469 |
US $29.53 |
||
|
9
|
9
518325782 Deflecteur dr. *rh deflector |
518325782 |
US $13.89 |
||
|
10
|
10
518325783 Deflecteur ga. *lh deflector |
518325783 |
US $13.89 |
||
|
11
|
11
518326460 RH FRONT RETAINER |
518326460 |
US $74.41 |
||
|
12
|
12
518326461 LH FRONT RETAINER |
518326461 |
US $74.41 |
||
|
13
|
13
518325747 Renfort droite *rh reinforce. |
518325747 |
US $57.09 |
||
|
14
|
14
518325748 Renfort droite *lh reinforce. |
518325748 |
US $57.09 |
||
|
15
|
15
518326493
RH REAR SUPPORT
|
518326493 |
— | ||
|
16
|
16
518-326-494
Attache ga *lh support
|
518-326-494 |
— | ||
|
17
|
17
518325973 Embase arri+re *rear base |
518325973 |
US $17.82 |
||
|
18
|
18
518325974 Embase arri+re *rear base |
518325974 |
US $17.82 |
||
|
19
|
19
518326282 ROULEAU DROIT *ROLLER-RH |
518326282 |
US $178.47 |
||
|
20
|
20
518326283 ROULEAU *ROLLER-LH |
518326283 |
US $178.47 |
||
|
21
|
21
518325653 Joint droit *seal rh |
518325653 |
US $8.38 |
||
|
22
|
22
518325654 Joint gauche *seal lh |
518325654 |
US $8.38 |
||
|
23
|
23
293200105 Joint etanche *neoprene seal |
293200105 |
US $7.31 |
||
|
24
|
24
518-326-486 Radiateur avant*front radiator |
518-326-486 |
US $364.11 |
||
|
25
|
25
518326344 REAR RADIATOR |
518326344 |
US $693.57 |
||
|
26
|
26
518325421
Capuchon *rear cap
|
518325421 |
— | ||
|
27
|
27
518326216 ETRIER DROIT *RH.STIRUP |
518326216 |
US $151.95 |
||
|
28
|
28
518326239 ETRIER GA *LH.STIRUP |
518326239 |
US $151.95 |
||
|
29
|
29
250000248 Screw-pan hd.torx black scotch grip |
250000248 |
US $0.82 |
||
|
30
|
30
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
|
31
|
31
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
32
|
32
518326188 Plaque anti *plate |
518326188 |
US $33.61 |
||
|
33
|
33
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
34
|
34
518326280 RAIDISSEUR DR *RH STIFFENER |
518326280 |
US $67.29 |
||
|
35
|
35
518326281 RAIDISSEUR GA *LH STIFFENER |
518326281 |
US $67.29 |
||
|
36a
|
36a
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
36b
|
36b
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
37
|
37
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
38
|
38
250000365 Torx-truss m/s tcp nylon patch m6 x 16 |
250000365 |
US $13.60 |
||
|
A
|
A
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
B
|
B
293150120 Rivet hemlock *rivet-hemlock 6.5mm |
293150120 |
US $37.80 |
||
|
C
|
C
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
D
|
D
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
E
|
E
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
F
|
F
293150091 Rivet henrob *rivet-henrob |
293150091 |
US $19.50 |
||
|
G
|
G
293150146 Rivet henrob *henrob rivet |
293150146 |
US $20.10 |
||
|
H
|
H
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
I
|
I
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
J
|
J
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
K
|
K
293150175
Monobolt 4.8 *monobolt 4.8
|
293150175 |
— | ||
|
L
|
L
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
