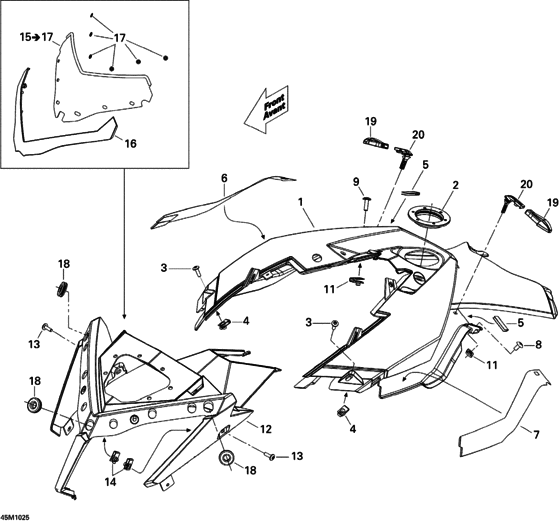

09- Windshield And Console Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517304127 Console *console |
517304127 |
US $189.69 |
||
|
2
|
2
517304518 CONSOLE NUT |
517304518 |
US $13.45 |
||
|
3
|
3
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
4
|
4
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
5
|
5
517304105 Decalque *console decal |
517304105 |
US $10.17 |
||
|
6
|
6
517304103 Decalque droit *rh.decal |
517304103 |
US $16.29 |
||
|
7
|
7
517304104 Decalque gauche*lh.decal |
517304104 |
US $16.29 |
||
|
8
|
8
250000129 200x-truss m/s gm6047m nylon patch |
250000129 |
US $14.28 |
||
|
9
|
9
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
11
|
11
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
12
|
12
517-304-416
Support ind. *indicator support
|
517-304-416 |
— | ||
|
13
|
13
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
14
|
14
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
15
|
15
517304226 Pare-brise ass.*windshield ass |
517304226 |
US $106.05 |
||
|
16
|
16
517303757 Support *support |
517303757 |
US $27.34 |
||
|
17
|
17
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
18
|
18
517303756 Rondelle *grommet |
517303756 |
US $5.05 |
||
|
19
|
19
517304075 Embout *end piece |
517304075 |
US $5.87 |
||
| replacement | |||||
|
19
|
19
860200239 Embout loquet *latch |
860200239 |
US $18.70 |
||
|
20
|
20
517303981 Loquet panneau *latch-panel |
517303981 |
US $11.27 |
||
