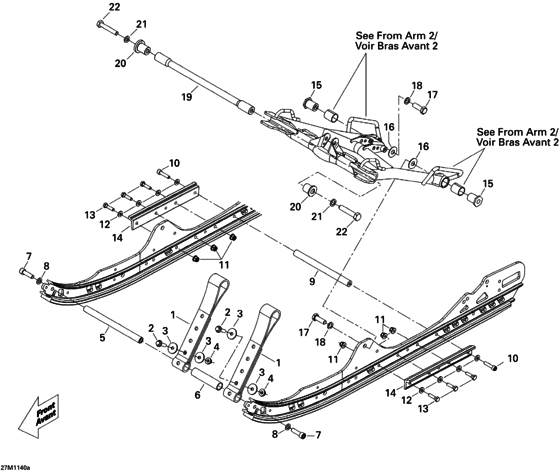

08- Front Arm 1 Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503192360 STOPPER STRAP |
503192360 |
US $25.82 |
||
|
2
|
2
207683044 Screw-hex.flange din.6921 |
207683044 |
US $21.80 |
||
|
3
|
3
224081301 Washer-flat |
224081301 |
US $28.50 |
||
|
4
|
4
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
5
|
5
503192115 RUNNER AXEL |
503192115 |
US $36.69 |
||
|
6
|
6
503189265 Entretoise *spacer |
503189265 |
US $4.40 |
||
|
7
|
7
205503544 Screw-socket din.912 s.grip |
205503544 |
US $21.80 |
||
|
8
|
8
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
9
|
9
503151600 Axe *axle |
503151600 |
US $14.67 |
||
|
10
|
10
205583544 Screw-socket hd.din.912 s.grip |
205583544 |
US $3.40 |
||
|
11
|
11
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
12
|
12
503189157 Rondelle *washer |
503189157 |
US $42.30 |
||
|
13
|
13
207183044 Screw-hex.cap din.933 |
207183044 |
US $19.60 |
||
|
14
|
14
503191804 Renfort rail *reinf.-rail |
503191804 |
US $42.81 |
||
|
15
|
15
503191966 Axe *axle |
503191966 |
US $15.90 |
||
|
16
|
16
503190656 Rondelle *washer |
503190656 |
US $19.15 |
||
|
17
|
17
250000225
Screw-hex.cap s.grip m12 x 35
|
250000225 |
— | ||
|
18
|
18
503189276 Rondelle *washer |
503189276 |
US $105.75 |
||
|
19
|
19
503192713 SLIDE BUSHING |
503192713 |
US $91.77 |
||
|
20
|
20
503192721 COUSSINET *BUSHING |
503192721 |
US $30.57 |
||
|
21
|
21
503189564 Rondelle *washer |
503189564 |
US $7.10 |
||
|
22
|
22
207206534 Screw-hex.cap iso.4014 s.grip |
207206534 |
US $9.55 |
