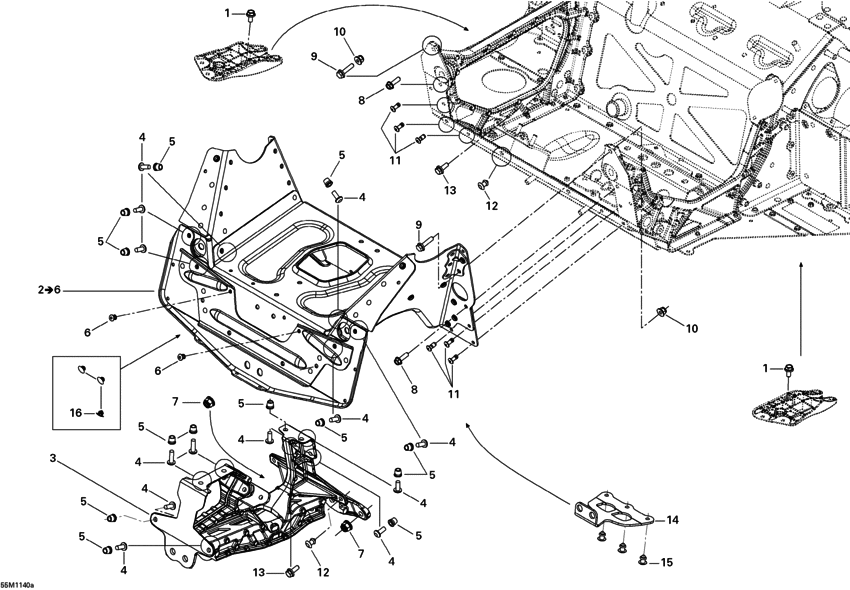

09- Frame And Components 1 Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207561244 Screw-hex.flange din.6921 s.grip |
207561244 |
US $2.45 |
||
|
2
|
2
518-326-752
Module s *cross member
|
518-326-752 |
— | ||
|
3
|
3
518325925
Support *support
|
518325925 |
— | ||
| replacement | |||||
|
3
|
3
518327487 FRONT SUSPENSION SUPPORT |
518327487 |
US $317.10 |
||
|
4
|
4
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
5
|
5
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
6
|
6
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
7
|
7
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
8
|
8
210261680 Screw-forming hex.hd.fl.gm6174m |
210261680 |
US $13.90 |
||
|
9
|
9
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
10
|
10
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
11
|
11
293150191 MONOBOLT 4.8 |
293150191 |
US $3.96 |
||
|
12
|
12
293150182 MONOBOLT 6.4 |
293150182 |
US $3.13 |
||
|
13
|
13
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
14
|
14
518326466 MODULE REINFORCEMENT |
518326466 |
US $27.49 |
||
|
15
|
15
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
16
|
16
293730042 Dard 5-6 *dart 5-6 |
293730042 |
US $2.84 |
||
