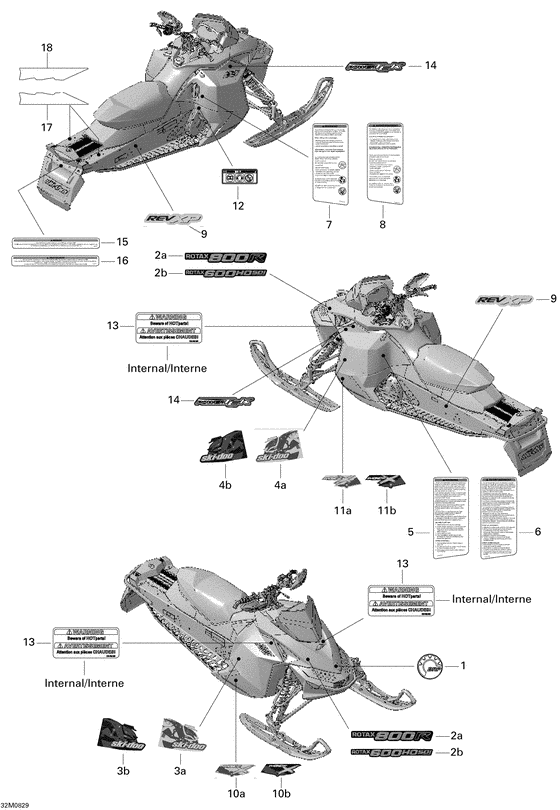

09- decals 800r Diagram Bombardier MX Z
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
219902469
Logo brp *brp logo
|
219902469 |
— | ||
| replacement | |||||
|
1
|
1
516008739 EMBLEM LOGO BRP |
516008739 |
US $17.15 |
||
|
2a
|
2a
516003440 Decalque capot *hood decal800R PTEK; |
516003440 |
US $9.13 |
||
|
3a
|
3a
516003452 Decal.lat. dr *decal rhYellow-Yellow Model; |
516003452 |
US $20.37 |
||
|
3b
|
3b
516003459 Decal.lat. dr *decal rhBlack-Lava Grey Model; |
516003459 |
US $20.37 |
||
|
4a
|
4a
516003451 Decal.lat. ga. *decal-side lhYellow-Yellow Model; |
516003451 |
US $20.37 |
||
|
4b
|
4b
516003458 Decal.lat. ga. *decal-side lhBlack-Lava Grey Model; |
516003458 |
US $20.37 |
||
|
5
|
5
516003556 Decalc *label eng. |
516003556 |
US $0.02 |
||
|
6
|
6
516003557 Decalque fr. *label french |
516003557 |
US $0.02 |
||
|
7
|
7
516003558 Decal warning eng. |
516003558 |
US $0.02 |
||
|
8
|
8
516003559 Decal warning fr. |
516003559 |
US $0.02 |
||
|
9
|
9
516003543 Decal rev xp *decal rev xp |
516003543 |
US $9.13 |
||
|
10a
|
10a
516003454 Decalque droit *rh.decalYellow-Yellow Model; |
516003454 |
US $20.37 |
||
|
10b
|
10b
516003461 Decalque droit *rh.decalBlack-Lava Grey Model; |
516003461 |
US $20.37 |
||
|
11a
|
11a
516003453
Decalque gauche*lh.decal
Yellow-Yellow Model; |
516003453 |
— | ||
|
11b
|
11b
516003460 Decalque gauche*lh.decalBlack-Lava Grey Model; |
516003460 |
US $20.37 |
||
|
12
|
12
516003027 Decal pictogram eurEurope; |
516003027 |
US $0.02 |
||
|
13
|
13
516002965 Security label - hot parts |
516002965 |
US $0.02 |
||
|
14
|
14
516003028 Decalque power *decal powertek800R PTEK; |
516003028 |
US $8.64 |
||
|
15
|
15
516003578 Decalque aver. *warning decal. |
516003578 |
US $0.02 |
||
|
16
|
16
516003579 Decalque aver. *warning decal. |
516003579 |
US $0.02 |
||
|
17
|
17
516003764 Decalque droit *rh.decal |
516003764 |
US $15.27 |
||
|
18
|
18
516003763 Decalque gauche*lh.decal |
516003763 |
US $15.27 |
||
