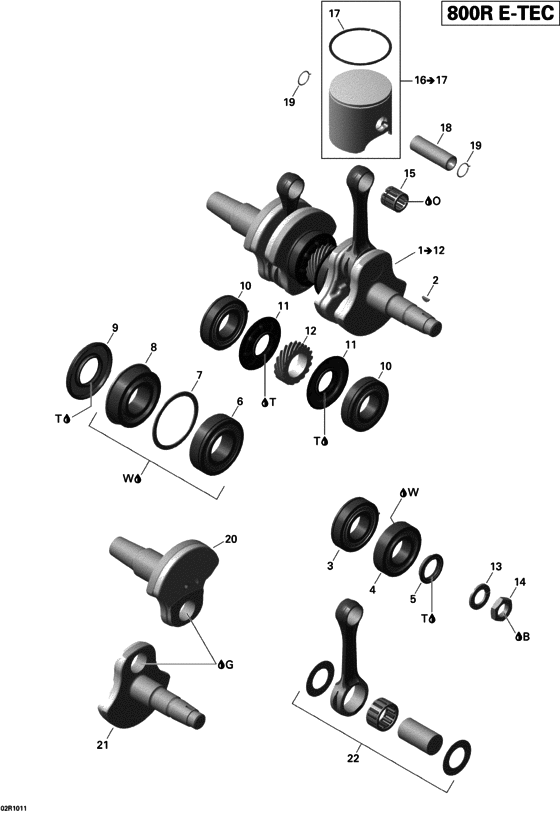

01- Crankshaft And Pistons Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420-893-090
Vilebrequin ass*crankshaft ass y
|
420-893-090 |
— | ||
|
2
|
2
420246015 Clavette *key-woodruff |
420246015 |
US $3.60 |
||
|
3
|
3
420832633 Roulement bille*ball bearing |
420832633 |
US $112.37 |
||
| replacement | |||||
|
3
|
3
420832673 Roulement bille*ball bearing |
420832673 |
US $112.37 |
||
|
4
|
4
420832575 Roulement bille*ball bearing |
420832575 |
US $58.62 |
||
|
5
|
5
420931793
Anneau etanche *seal-oil
|
420931793 |
— | ||
| replacement | |||||
|
5
|
5
420931795 SEAL-OIL |
420931795 |
US $19.52 |
||
|
6
|
6
420832602 Roulement bille*ball bearing 6208 |
420832602 |
US $116.28 |
||
| replacement | |||||
|
6
|
6
420832672 ball bearing 6208 |
420832672 |
US $116.28 |
||
|
7
|
7
420926190 Rondelle *washer |
420926190 |
US $12.55 |
||
|
8
|
8
420832702 BALL BEARING |
420832702 |
US $99.67 |
||
|
9
|
9
420931284 Anneau etanche *seal-oil |
420931284 |
US $25.38 |
||
|
10
|
10
420832633 Roulement bille*ball bearing |
420832633 |
US $112.37 |
||
| replacement | |||||
|
10
|
10
420832673 Roulement bille*ball bearing |
420832673 |
US $112.37 |
||
|
11
|
11
420931455 Anneau etanche *seal-oil |
420931455 |
US $39.07 |
||
|
12
|
12
420834565 Engrenage cent.*gear-central |
420834565 |
US $180.49 |
||
|
13
|
13
420945759 Rondelle-frein *washer-lock 22 |
420945759 |
US $24.50 |
||
|
14
|
14
420842239 Ecrou*hex nut m22x1,5 |
420842239 |
US $19.40 |
||
|
15
|
15
420832030 Roul.aiguille *needle bearing |
420832030 |
US $37.08 |
||
|
16
|
16
420890726 PISTON ASSY, 81.85 MM |
420890726 |
US $278.80 |
||
|
17
|
17
420815416 SEMI-TRAPEZ RING |
420815416 |
US $79.53 |
||
|
18
|
18
420916480 Axe de piston *pin-gudgeon |
420916480 |
US $46.10 |
||
|
19
|
19
420845467 Circlip #21 *circlip-#21 |
420845467 |
US $5.61 |
||
|
20
|
20
XXX
Not Sold
|
XXX |
— | ||
|
21
|
21
XXX
Not Sold
|
XXX |
— | ||
|
22
|
22
420892568
Rod repair kit, mag side
|
420892568 |
— | ||
|
22
|
22
420892569 Rod repair kit, pto side |
420892569 |
US $650.73 |
||
|
B
|
B
293800060 Loctite 243 *loctite-243 |
293800060 |
US $31.18 |
||
|
G
|
G
413711400
Loctite 648 *loctite-648
|
413711400 |
— | ||
|
O
|
O
XXX
Not Sold
|
XXX |
— | ||
|
T
|
T
420899271 Graisse *grease |
420899271 |
US $83.84 |
||
|
W
|
W
293550021 Graisse isoflex*grease-isoflex |
293550021 |
US $70.19 |
||
