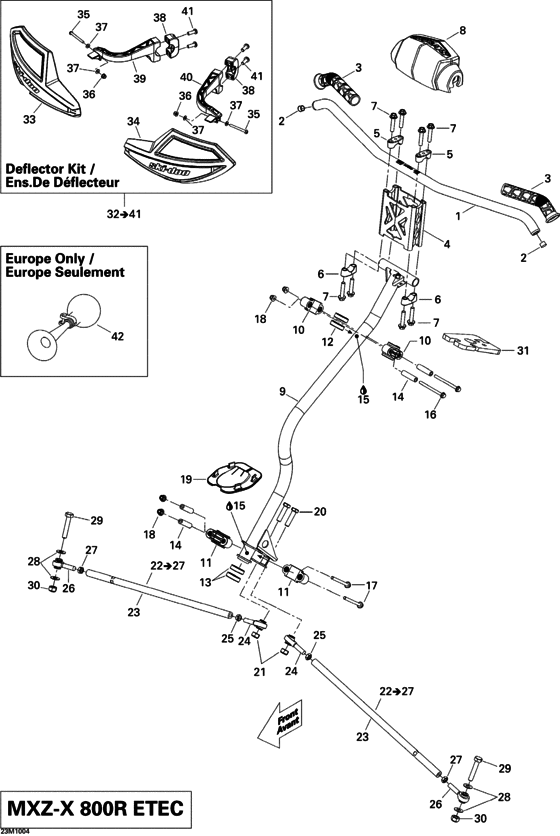

07- Steering Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
506152191
Guidon *handlae bar
|
506152191 |
— | ||
|
2
|
2
572051500 Bouchon *cap |
572051500 |
US $36.30 |
||
|
3
|
3
506152226
Grip
|
506152226 |
— | ||
| replacement | |||||
|
3
|
3
506152486 GRIP |
506152486 |
US $17.09 |
||
|
4
|
4
860200268
Guidon sureleve*riser kit
|
860200268 |
— | ||
|
5
|
5
506152394
Support guidon *steering support
|
506152394 |
— | ||
|
6
|
6
506152395 Support guidon *steering support |
506152395 |
US $12.22 |
||
|
7
|
7
250000352 Screw hexagonal flange m8 |
250000352 |
US $13.05 |
||
|
8
|
8
506152192 Ss.securite *pad-steering |
506152192 |
US $54.89 |
||
|
9
|
9
506-152-469
Arbre direction*main tube
|
506-152-469 |
— | ||
|
10
|
10
506152219
Demi logement *half-housing
|
506152219 |
— | ||
|
11
|
11
506152217 Demi logement *half-housing |
506152217 |
US $12.39 |
||
|
12
|
12
506152292
Joint vib. *vibrat. gasket
|
506152292 |
— | ||
|
13
|
13
506152218
Joint vib. *vibrat. gasket
|
506152218 |
— | ||
|
14
|
14
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
15
|
15
293550033
Synthetic grease
|
293550033 |
— | ||
|
16
|
16
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
17
|
17
207667044 Screw-hex.flange din.6921 |
207667044 |
US $1.09 |
||
|
18
|
18
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
19
|
19
506152163 Plaque *plate |
506152163 |
US $11.93 |
||
|
20
|
20
207004034 Screw-hex.cap iso 4014 |
207004034 |
US $2.01 |
||
|
21
|
21
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
22
|
22
506152207
Tie Rod Ass'y. Includes 22 To 27
|
506152207 |
— | ||
|
23
|
23
506152095
Barre accoupl. *rod-tie
|
506152095 |
— | ||
|
24
|
24
506152081 Joint rotule *ball joint |
506152081 |
US $40.39 |
||
|
25
|
25
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
26
|
26
506152019 Joint rotule *ball joint |
506152019 |
US $44.93 |
||
|
27
|
27
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
28
|
28
506152194 Rondelle *washer |
506152194 |
US $4.15 |
||
|
29
|
29
207006044 Screw-hex.cap iso.4014 |
207006044 |
US $10.65 |
||
|
30
|
30
232500416 Nut-stop elastic din.985 |
232500416 |
US $9.80 |
||
|
31
|
31
506152407 Coussinet *cushion |
506152407 |
US $9.78 |
||
|
32
|
32
517303793
Deflecteur emb *deflector kit
|
517303793 |
— | ||
|
33
|
33
517303623 Deflecteur dr. *rh.deflector |
517303623 |
US $36.07 |
||
|
34
|
34
517303624 Deflecteur ga. *lh.deflector |
517303624 |
US $36.07 |
||
|
35
|
35
205444086 Screw-socket bn.hd.gm6174 |
205444086 |
US $21.90 |
||
|
36
|
36
232541484 Nut-stop elastic din.985 |
232541484 |
US $9.50 |
||
|
37
|
37
234041480 Washer-flat din.125a |
234041480 |
US $9.50 |
||
|
38
|
38
517303264 Bride en u *u clamp |
517303264 |
US $12.67 |
||
|
39
|
39
517303590 Supp.deflecteur*support-deflector |
517303590 |
US $14.67 |
||
|
40
|
40
517303591 Supp.deflecteur*support-deflector |
517303591 |
US $14.67 |
||
|
41
|
41
250000172 Screw-socket bn.hd.gm6047m nylon patch |
250000172 |
US $19.60 |
||
|
42
|
42
549011291 Avertisseur *horn |
549011291 |
US $31.59 |
||
