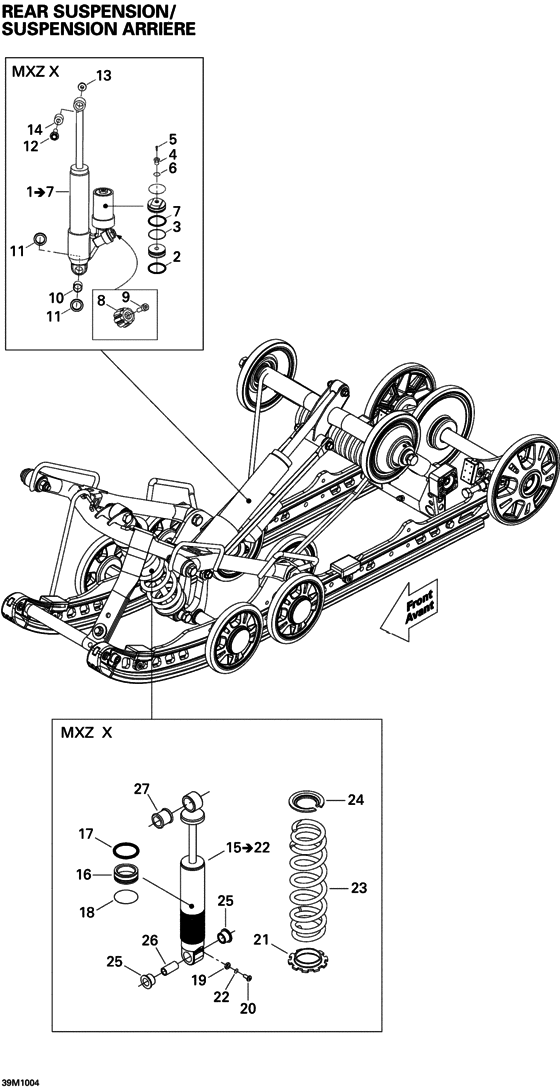

08- Rear Suspension Shocks Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
503192204 REAR SHOCK |
503192204 |
US $709.89 |
||
|
1
|
1
503192297 REAR SHOCK |
503192297 |
US $681.33 |
||
|
2
|
2
415093807 Joint torique *o-ring |
415093807 |
US $30.57 |
||
|
3
|
3
415093806 Bague *ring-stop |
415093806 |
US $14.67 |
||
|
4
|
4
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
5
|
5
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
6
|
6
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
7
|
7
415093804 Joint torique *o-ring |
415093804 |
US $4.17 |
||
|
8
|
8
505072753 ADJUSTMENT KNOB |
505072753 |
US $2.01 |
||
|
9
|
9
205031060 SOCKET SCREW M3 X 10 |
205031060 |
US $10.05 |
||
|
10
|
10
503191553 Coussinet *bushing |
503191553 |
US $5.53 |
||
|
11
|
11
503190694 Entretoise *spacer |
503190694 |
US $1.97 |
||
|
12
|
12
207684044 Screw-hex.flange din.6921 |
207684044 |
US $19.20 |
||
|
13
|
13
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
14
|
14
414936000 Coussinet *cushion |
414936000 |
US $14.25 |
||
|
15
|
15
503191791 Amort.central *center shock |
503191791 |
US $255.97 |
||
|
16
|
16
503189309
Piston libre *piston-free
|
503189309 |
— | ||
|
17
|
17
414888312 Joint torique *o-ring |
414888312 |
US $79.50 |
||
|
18
|
18
503189308 Bague *ring-piston |
503189308 |
US $73.41 |
||
|
19
|
19
505070398 Soupape air *valve-air+ring |
505070398 |
US $17.12 |
||
|
20
|
20
505070399 Screw *vis |
505070399 |
US $3.83 |
||
|
21
|
21
414888316 Collet ressort *collar-spring |
414888316 |
US $55.03 |
||
|
22
|
22
505070400 Joint torique *o ring |
505070400 |
US $4.17 |
||
|
23
|
23
503191329 Ressort peint *spring-paint |
503191329 |
US $61.15 |
||
|
24
|
24
503-192-029
Butee ressort *stopper-spring
|
503-192-029 |
— | ||
|
25
|
25
503189117 Coussinet ureth*cushion-ureth. |
503189117 |
US $9.69 |
||
|
26
|
26
503189282 Douille *bushing |
503189282 |
US $5.61 |
||
|
27
|
27
503189271 Coussinet ureth*cushion-ureth. |
503189271 |
US $13.24 |
