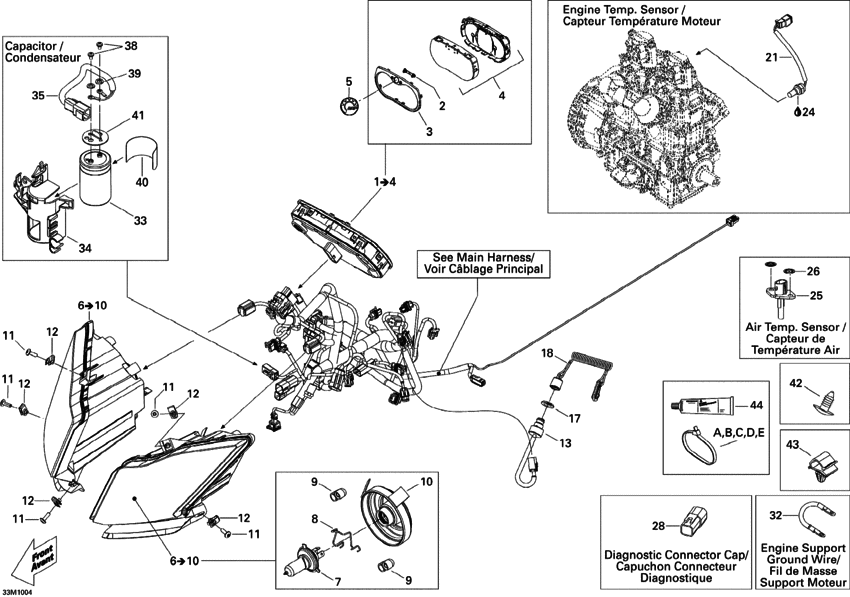

10- Electrical System Diagram Bombardier MX Z
- Year
- 2010
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176976 Speedometer |
515176976 |
US $474.25 |
||
|
2
|
2
415129355 Bouton indica*button speedometer |
415129355 |
US $21.23 |
||
|
3
|
3
415129348 Anneau cadran *ring-gauge |
415129348 |
US $13.46 |
||
|
4
|
4
415129349 Lentille *lens |
415129349 |
US $25.38 |
||
|
5
|
5
219902677
Logo brp *brp logo
|
219902677 |
— | ||
| replacement | |||||
|
5
|
5
516006224 BRP Logo, 20mm |
516006224 |
US $13.45 |
||
|
6
|
6
517304194 Phare droit *rh.headlamp |
517304194 |
US $153.43 |
||
|
6
|
6
517304195 Phare gauche *lh.headlamp |
517304195 |
US $153.43 |
||
|
7
|
7
515176274 Ampoule halogen*bulb-hal.h4 |
515176274 |
US $25.31 |
||
|
8
|
8
515176493
Porte ampoule *bulb holder
|
515176493 |
— | ||
|
9
|
9
515176498 Capuchon *cap |
515176498 |
US $11.73 |
||
|
10
|
10
515176499 Couvercle *cover |
515176499 |
US $23.41 |
||
|
11
|
11
250000128
Torx-truss m/s gm6047m nylon patch
|
250000128 |
— | ||
|
12
|
12
250000048 Extruded panel nut m6 x 1.0 |
250000048 |
US $8.25 |
||
|
13
|
13
515176815
Interrupt.dess *switch-dess
|
515176815 |
— | ||
|
14
|
14
515176141 Bouchon *cap |
515176141 |
US $41 |
||
|
17
|
17
278000508
Ecrou securite *nut-saf.switch
|
278000508 |
— | ||
|
18
|
18
515-176-936
Capuchon dess *cap-dess.
|
515-176-936 |
— | ||
|
21
|
21
515176398
Sensor-temp. (wts)
|
515176398 |
— | ||
|
24
|
24
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
25
|
25
515176366 Capteur temp. *sensor-air |
515176366 |
US $21.42 |
||
|
26
|
26
389804300 Ecrou pression *push-nut |
389804300 |
US $7.10 |
||
|
28
|
28
515176234 Bloc 6 circ.fem*housing-tab |
515176234 |
US $12.58 |
||
|
32
|
32
515176861 GROUND WIRE |
515176861 |
US $22.39 |
||
|
33
|
33
515176349 Condensateur *capacitor |
515176349 |
US $99.26 |
||
| replacement | |||||
|
33
|
33
515177272 CAPACITOR |
515177272 |
US $99.26 |
||
|
34
|
34
515176607 Support *support |
515176607 |
US $16.76 |
||
|
35
|
35
515176605 Cablage *harness |
515176605 |
US $27.49 |
||
|
38
|
38
250000462 SOCKET HEAD SCREW M10 X 32 |
250000462 |
US $27.20 |
||
|
39
|
39
250200026 Washer-lock helical #10 |
250200026 |
US $2.45 |
||
|
40
|
40
516002976 Decalque conden*capacit decal |
516002976 |
US $0.02 |
||
|
41
|
41
515176351 Capuchon *cap |
515176351 |
US $6.26 |
||
|
42
|
42
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
43
|
43
515176795 Attache *clip |
515176795 |
US $36.20 |
||
|
44
|
44
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
A
|
A
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
B
|
B
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
C
|
C
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
D
|
D
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
E
|
E
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
