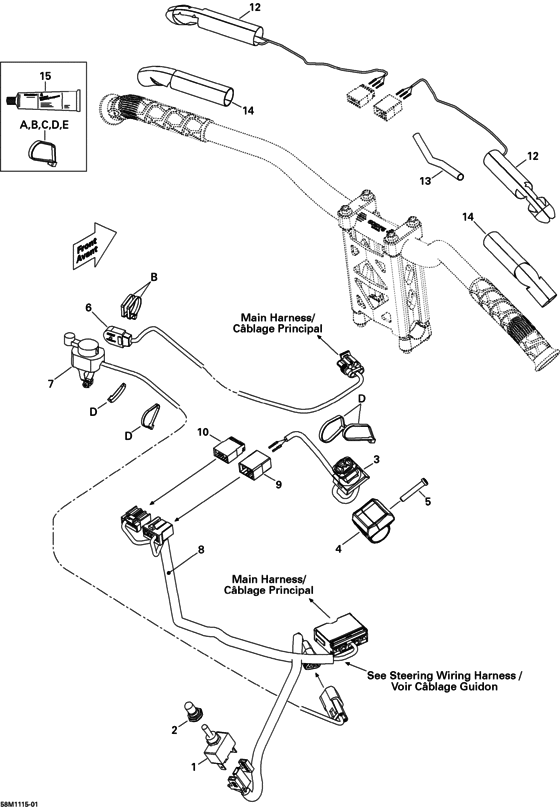

10- Electrical Accessories, Steering Diagram Bombardier MX Z
- Year
- 2011
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
410107300 Int.poig.chauf.*switch-grip he |
410107300 |
US $38.98 |
||
|
2
|
2
515175281 Couv.interrupt.*cover-switch |
515175281 |
US $67.92 |
||
|
3
|
3
515-176-988
Interrupteur *kill switch
|
515-176-988 |
— | ||
|
4
|
4
515176825 Support *support |
515176825 |
US $9.40 |
||
|
5
|
5
250000263 Screw type #8-18 hi-lo torx |
250000263 |
US $13.40 |
||
|
6
|
6
515176987 SWITCH |
515176987 |
US $58.09 |
||
|
7
|
7
515-176-997
Inverseur *dimmer switch
|
515-176-997 |
— | ||
| replacement | |||||
|
7
|
7
515177433 DIMMER SWITCH |
515177433 |
US $60.13 |
||
|
8
|
8
515176984 STEERING WIRING HARNESS ASS Y |
515176984 |
US $76.45 |
||
|
9
|
9
515175817 Log.pt male .*housing-term.male |
515175817 |
US $8.38 |
||
|
10
|
10
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
12
|
12
506-152-515
Element chauff.*heated film
|
506-152-515 |
— | ||
|
13
|
13
515175830 Gaine basse te*gaine low temp.vinyl |
515175830 |
US $40.80 |
||
|
14
|
14
506152360 Isolant *isolant |
506152360 |
US $5.41 |
||
|
15
|
15
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
A
|
A
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
B
|
B
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
C
|
C
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
D
|
D
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
E
|
E
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
