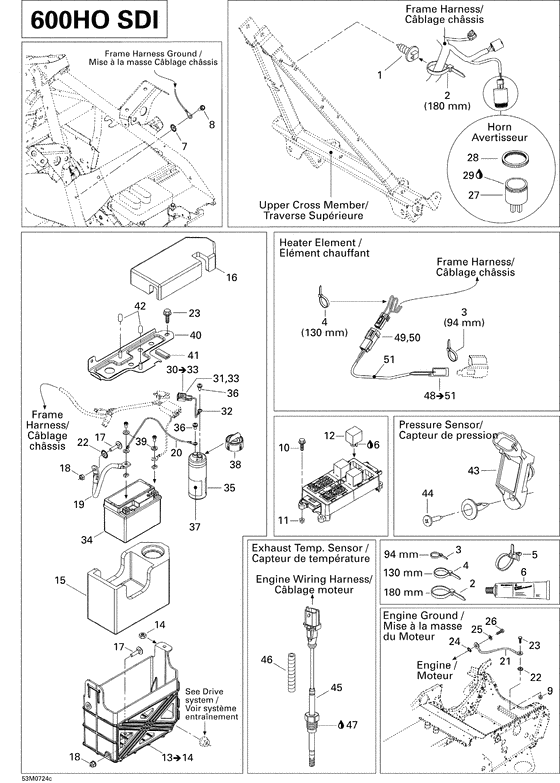

10- electrical accessories 2, 600ho sdi Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
2
|
2
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
3
|
3
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
4
|
4
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
5
|
5
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
6
|
6
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
7
|
7
394001900 Washer-lock ext.tooth |
394001900 |
US $10 |
||
|
8
|
8
210261280 Screw-forming hex.hd.fl.gm6174m |
210261280 |
US $1.79 |
||
|
9
|
9
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
10
|
10
207652044 Screw-hex.flange din.6921 |
207652044 |
US $2.45 |
||
|
11
|
11
233251414 Nut-flange elastic din.6926 |
233251414 |
US $5.36 |
||
|
12
|
12
410113604
Relais *relay
|
410113604 |
— | ||
|
13
|
13
515176423 Support batter.*battery supportIncludes 13 to 14; |
515176423 |
US $73.41 |
||
|
14
|
14
232561414 Nut-stop elastic din.985 |
232561414 |
US $7.10 |
||
|
15
|
15
515176190 Supp condensate*capacitor supp |
515176190 |
US $17.82 |
||
|
16
|
16
515176114 Couvercle *cover |
515176114 |
US $11.49 |
||
|
17
|
17
207762544 Bolt-carriage din.603 |
207762544 |
US $21.80 |
||
|
18
|
18
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
19
|
19
515175749 Fil de masse *wire-ground |
515175749 |
US $17.82 |
||
|
20
|
20
515176119 Cablage masse c*ground harness |
515176119 |
US $12.58 |
||
|
21
|
21
515176276 Fil de masse ba*ground harness |
515176276 |
US $9.40 |
||
|
22
|
22
250200041 Washer-lock serrated int.ext.m6 |
250200041 |
US $14.80 |
||
|
23
|
23
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
24
|
24
234481608 Washer-lock serrated din.6798a-a2 |
234481608 |
US $14.80 |
||
|
25
|
25
234081410 Washer-flat din.125a |
234081410 |
US $10.70 |
||
|
26
|
26
207181644 Screw-hex.cap din.933 |
207181644 |
US $14.50 |
||
|
27
|
27
515176035 9vertisseur *horn |
515176035 |
US $95.85 |
||
|
28
|
28
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
29
|
29
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
30
|
30
515176120 Cablage condens*capasitor harnIncludes 30 to 33; |
515176120 |
US $14.67 |
||
|
31
|
31
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
32
|
32
515175504 Cosse a oeillet*terminal-ring |
515175504 |
US $48.80 |
||
|
33
|
33
515175509 Logement male *housing-male |
515175509 |
US $6.26 |
||
|
34
|
34
515176433
New Genuine Part
|
515176433 |
— | ||
|
34
|
34
410301204 Batterie 3 amp *battery-3 amp (wet)Europe; |
410301204 |
US $76.02 |
||
|
35
|
35
515176387 Condensateur *capacitor |
515176387 |
US $57.09 |
||
|
36
|
36
515176388 Vis 10-32 x 3/8*screw 10-32 |
515176388 |
US $4.95 |
||
|
37
|
37
516002976 Decalque conden*capacit decal |
516002976 |
US $0.02 |
||
|
38
|
38
515176211 Capuchon *cap |
515176211 |
US $6.07 |
||
|
39
|
39
234051410 Washer-flat din.125a |
234051410 |
US $6.80 |
||
|
40
|
40
515175735 Laniere batteri*strip-battery |
515175735 |
US $19.92 |
||
|
41
|
41
414506600 Moulure pa-br. *trim-w shield |
414506600 |
US $99 |
||
|
42
|
42
515176141 Bouchon *cap |
515176141 |
US $41 |
||
|
43
|
43
420274055
Capteur pressio*temperature sensor
|
420274055 |
— | ||
|
44
|
44
414745900 Screw-tuflock phillips |
414745900 |
US $21.80 |
||
|
45
|
45
515176132 Capteur temp. *sensor-temp. |
515176132 |
US $301.89 |
||
|
46
|
46
515175442
Gaine *housing
|
515175442 |
— | ||
|
47
|
47
293800070 Loct.anti grip.*loct-antiseize |
293800070 |
US $40.78 |
||
|
48
|
48
515176473
Element chauff.*heated film
Includes 48 to 51; |
515176473 |
— | ||
| replacement | |||||
|
48
|
48
515176653 Support element*supportIncludes 48 to 51; |
515176653 |
US $65.25 |
||
|
49
|
49
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
50
|
50
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
51
|
51
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
