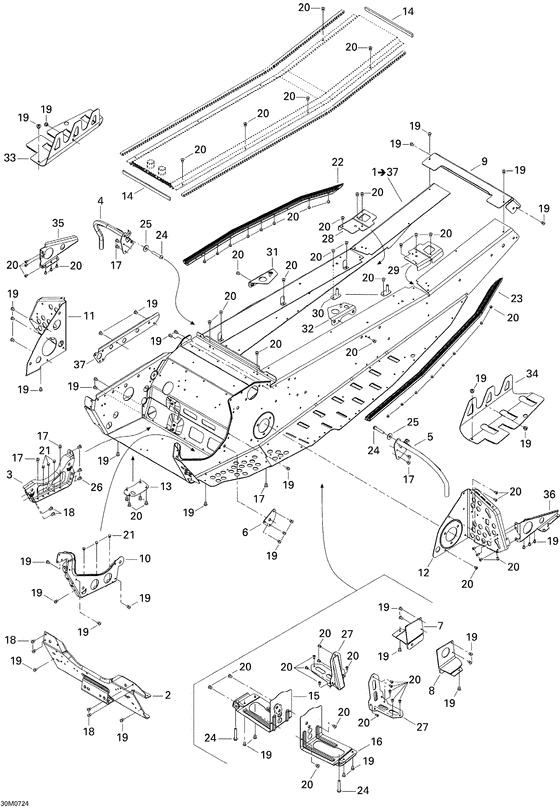

09- frame Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
415129234
Chassis *frame service
Includes 1 to 37; |
415129234 |
— | ||
|
2
|
2
518323239 Tablier avant s*front pan weld |
518323239 |
US $83.73 |
||
|
3
|
3
518323346 Supp.moteur *engine support |
518323346 |
US $16.76 |
||
|
4
|
4
518324162 Sup.acc.pi.dr.s*supp-toe hold rh weld |
518324162 |
US $47.91 |
||
|
5
|
5
518324163 Sup.acc.pi.ga.s*supp-toe hold lh weld |
518324163 |
US $47.91 |
||
|
6
|
6
518323507 Renfort ext. *reinf. outer |
518323507 |
US $11.49 |
||
|
7
|
7
518324488 Att.susp.dr. *slide brkt rh |
518324488 |
US $31.47 |
||
|
8
|
8
518324489 Att.susp.ga. *slide brkt lh |
518324489 |
US $31.47 |
||
|
9
|
9
518325252
Capuchon *rear cap
|
518325252 |
— | ||
|
10
|
10
518323241 Renfort int. *inner reinforcement |
518323241 |
US $22.71 |
||
|
11
|
11
518323805
Renfort droit *rh.footrest
|
518323805 |
— | ||
|
12
|
12
518324527
Renfort gauche *reinforcement
|
518324527 |
— | ||
|
13
|
13
518324169 Plaque *plate |
518324169 |
US $7.31 |
||
|
14
|
14
293200104 Joint etanche *gasket |
293200104 |
US $2.06 |
||
|
15
|
15
518324634 Renfort droit *reinforcement |
518324634 |
US $24.45 |
||
|
16
|
16
518324635 Renfort gauche *reinforcement |
518324635 |
US $24.45 |
||
|
17
|
17
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
18
|
18
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
19
|
19
390402200 Rivet-pop 3/16 *rivet-pop 3/16 |
390402200 |
US $22 |
||
|
20
|
20
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
|
21
|
21
390910300 Rivet henrob *rivet-henrob |
390910300 |
US $17.75 |
||
|
22
|
22
518324953 Rouleau droit *roller-rh |
518324953 |
US $99.93 |
||
|
23
|
23
518324954 Rouleau gauche *roller-lh |
518324954 |
US $98.89 |
||
|
24
|
24
205982086 Screw-socket bn.hd.s.grip iso.7380 |
205982086 |
US $10.65 |
||
|
25
|
25
234082410 Washer-flat din.9021b |
234082410 |
US $18.40 |
||
|
26
|
26
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
27
|
27
518325242 Renfort central*reinf.-center |
518325242 |
US $48.93 |
||
|
28
|
28
518324431 Renf.tunnel dr.*reinf-frame rh |
518324431 |
US $10.47 |
||
|
29
|
29
518324432 Renf.tunnel ga.*reinf-frame lh |
518324432 |
US $10.47 |
||
|
30
|
30
518322791 Att.reserv.so. *brkt-tank weld |
518322791 |
US $11.49 |
||
|
31
|
31
518324385
Renfort tunnel *frame form. reinf.
|
518324385 |
— | ||
|
32
|
32
518324386 Renfort tunnel *frame form. reinf. |
518324386 |
US $15.73 |
||
|
33
|
33
518325266 Doublure tun.ja*liner-tunnel rh.yellow |
518325266 |
US $41.77 |
||
|
34
|
34
518325267 Doublure tun.ja*liner-tunnel lh yellow |
518325267 |
US $41.77 |
||
|
35
|
35
518323187 Attache *bracket |
518323187 |
US $44.83 |
||
|
36
|
36
518323188 Attache *bracket |
518323188 |
US $42.81 |
||
|
37
|
37
518323328 Raidisseur *stiffener |
518323328 |
US $11.49 |
