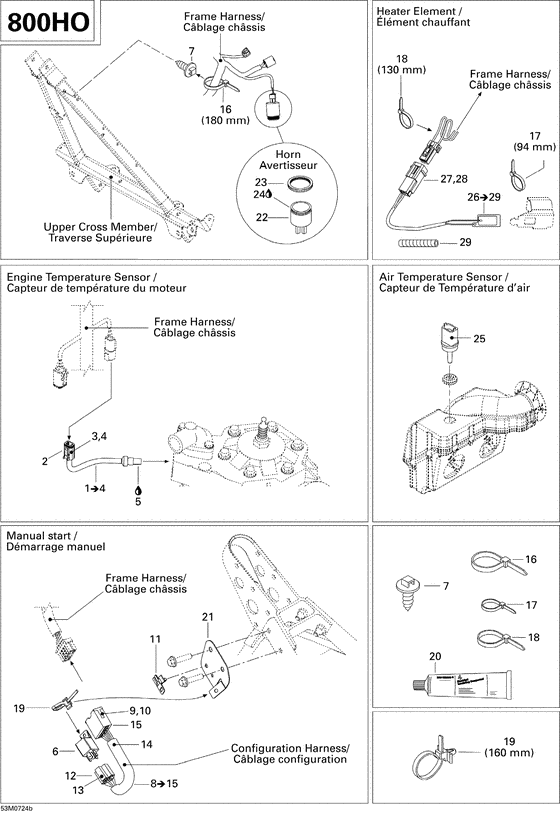

10- electrical accessories 2, 800ho Diagram Bombardier MX Z
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
515176043
Capteur temp. *sensor-temp.
Includes 1 to 4; |
515176043 |
— | ||
|
2
|
2
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $21.42 |
||
|
3
|
3
278000632 Cosse femelle *terminal-femal |
278000632 |
US $28.40 |
||
|
4
|
4
515175677 Cale 4 circ.mal*wedge-4 ways m |
515175677 |
US $6.26 |
||
|
5
|
5
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
6
|
6
410113200
Relais *relay
|
410113200 |
— | ||
| replacement | |||||
|
6
|
6
515177041 RELAY |
515177041 |
US $14.67 |
||
|
7
|
7
293730018 Dard d ancrage *dart-mount |
293730018 |
US $4.95 |
||
|
8
|
8
515176175 Cablage conf. *harness-conf.Includes 8 to 15; |
515176175 |
US $70.35 |
||
|
9
|
9
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
10
|
10
515175273 Cosse male *terminal-male |
515175273 |
US $73.10 |
||
|
11
|
11
515175283 Support *support |
515175283 |
US $48.55 |
||
|
12
|
12
409209900 Logement fe.5c.*housing-fe.5c. |
409209900 |
US $10.85 |
||
|
13
|
13
561503100 Cosse femelle *terminal-femal. |
561503100 |
US $52 |
||
|
14
|
14
409901800 Tubing - insulating 13 mm |
409901800 |
US $97.10 |
||
|
15
|
15
515175720 Logement male *housing-male |
515175720 |
US $16.76 |
||
|
16
|
16
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
17
|
17
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
|
18
|
18
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
19
|
19
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
20
|
20
293550004 Graisse dielect*grease-dielect dc4 |
293550004 |
US $59.94 |
||
|
21
|
21
515176020 Support cablage*harness support |
515176020 |
US $7.31 |
||
|
22
|
22
515176035 9vertisseur *horn |
515176035 |
US $95.85 |
||
|
23
|
23
414805101 Ecrou plastique*nut-plastic. |
414805101 |
US $3.83 |
||
|
24
|
24
293800086
Scell.silicone *seal-silicone
|
293800086 |
— | ||
|
25
|
25
270600000 Capteur temp. *sensor-air |
270600000 |
US $88.69 |
||
|
26
|
26
515176473
Element chauff.*heated film
Includes 26 to 29; |
515176473 |
— | ||
| replacement | |||||
|
26
|
26
515176653 Support element*supportIncludes 26 to 29; |
515176653 |
US $65.25 |
||
|
27
|
27
515175654 Logement male *housing-male |
515175654 |
US $9.76 |
||
|
28
|
28
515175232 Cosse male *terminal-male |
515175232 |
US $20.10 |
||
|
29
|
29
515175332 Gaine low temp.vinyl |
515175332 |
US $18.78 |
||
