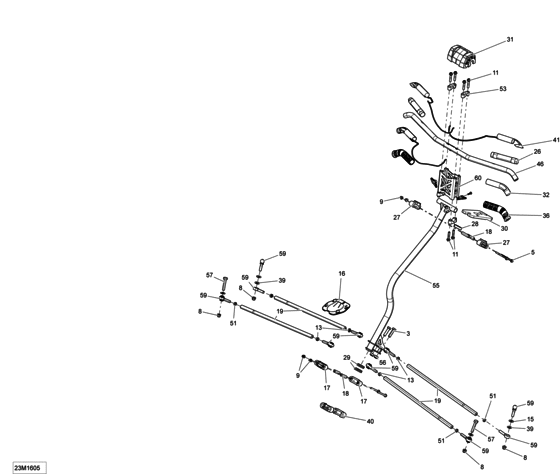

07- Steering - All Models Diagram Bombardier MX Z
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
207004034 Screw-hex.cap iso 4014 |
207004034 |
US $2.01 |
||
|
5
|
5
207667086 Screw-hex.flange din.6921 |
207667086 |
US $2.01 |
||
|
8
|
8
233201464 HEX. ELAST. FLANGED NUT M10 |
233201464 |
US $9.55 |
||
|
9
|
9
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
11
|
11
250000352 Screw hexagonal flange m8 |
250000352 |
US $13.05 |
||
|
13
|
13
250100016 Nut-jam hexagonal lh. |
250100016 |
US $9.50 |
||
|
15
|
15
503192496 RONDELLE *WASHER |
503192496 |
US $5 |
||
|
16
|
16
506152163 Plaque *plate |
506152163 |
US $11.93 |
||
|
17
|
17
506152217 Demi logement *half-housing |
506152217 |
US $12.39 |
||
|
18
|
18
506152297 Douille logem. *bushing-housing |
506152297 |
US $9.78 |
||
|
19
|
19
506152496 TIE-ROD |
506152496 |
US $55.03 |
||
|
26
|
26
506152486 GRIP |
506152486 |
US $17.09 |
||
|
27
|
27
506152508 UPPER HALF-HOUSING |
506152508 |
US $8.55 |
||
|
28
|
28
506152509 UPPER ANTI-VIBRATION GASKET |
506152509 |
US $5.12 |
||
|
29
|
29
506152518 LOWER VIBRATION RING |
506152518 |
US $7.46 |
||
|
30
|
30
506152521 COUSSINET *CUSHION |
506152521 |
US $13.45 |
||
|
31
|
31
506152541 STEERING PAD |
506152541 |
US $48.93 |
||
|
32
|
32
506152548 ISOLANT *ISOLANT |
506152548 |
US $5.41 |
||
|
32
|
32
506152611 ISOLANT *ISOLANT |
506152611 |
US $7.33 |
||
|
36
|
36
506152560 GRIP 148MM |
506152560 |
US $18.75 |
||
|
39
|
39
506152582 RONDELLE *WASHER |
506152582 |
US $5.87 |
||
|
40
|
40
506152588 LOWER HALF-HOUSING |
506152588 |
US $9.78 |
||
|
41
|
41
506152602
Heating Element 28 Watt
|
506152602 |
— | ||
|
41
|
41
506152758 HEATING ELEMENT 32 WATT |
506152758 |
US $30.57 |
||
|
46
|
46
506152709 CLEAR HANDLE BAR |
506152709 |
US $91.77 |
||
|
51
|
51
732610010 Nut-jam hexagonal rh. |
732610010 |
US $9.50 |
||
|
53
|
53
506152750 STEERING SUPPORT |
506152750 |
US $11.49 |
||
|
53
|
53
548873704 STEERING SUPPORT |
548873704 |
US $12.22 |
||
|
55
|
55
506152839 ARBRE DIR.SOUDE*TUBE-MAIN WELD |
506152839 |
US $237.63 |
||
|
56
|
56
233601466 ELASTIC LOCKING NUT M10 |
233601466 |
US $2.72 |
||
|
57
|
57
207005554 HEX SCREW M10 X 55 |
207005554 |
US $9.55 |
||
|
59
|
59
506152019 Joint rotule *ball joint |
506152019 |
US $44.93 |
||
|
59
|
59
506152081 Joint rotule *ball joint |
506152081 |
US $40.39 |
||
|
59
|
59
506152684 RH BALL JOINT |
506152684 |
US $48.93 |
||
|
60
|
60
506152570 BLACK HANDLEBAR EXTENSION |
506152570 |
US $134.61 |
||
|
60
|
60
506152571
Handlebar Extension (115). Mx-Z Tnt
|
506152571 |
— | ||
|
60
|
60
506152616 BLACK HANDLEBAR EXTENSION |
506152616 |
US $134.61 |
