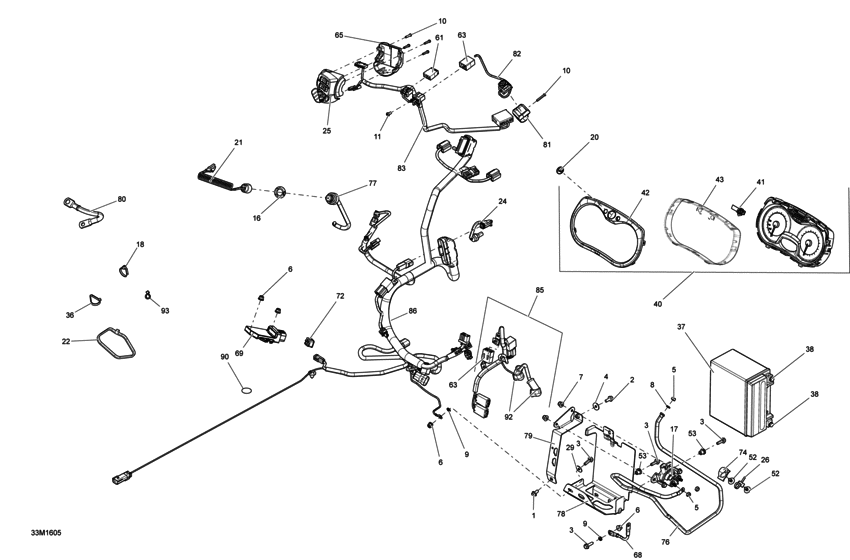

10- Electrical System - 600 Carb Diagram Bombardier MX Z
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
207661244 Screw-hex.flange din.6921 |
207661244 |
US $27 |
||
|
2
|
2
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
3
|
3
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
4
|
4
224061201 Washer-flat |
224061201 |
US $17.50 |
||
|
6
|
6
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
7
|
7
233261416 Nut-flange elastic din.6926 |
233261416 |
US $2.72 |
||
|
8
|
8
234061410 Washer-flat m6 din.125a |
234061410 |
US $17.20 |
||
|
9
|
9
234461608 Washer-lock serrated din.6798a-a2 |
234461608 |
US $7.40 |
||
|
10
|
10
250000263 Screw type #8-18 hi-lo torx |
250000263 |
US $13.40 |
||
|
11
|
11
250000690 PAN SCREW FORMING, 7500C |
250000690 |
US $2.72 |
||
|
16
|
16
278002963 SAFETY NUT |
278002963 |
US $4.23 |
||
|
17
|
17
278003012 STARTER RELAY |
278003012 |
US $51.66 |
||
|
18
|
18
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $15.50 |
||
|
20
|
20
516006224 BRP Logo, 20mm |
516006224 |
US $13.45 |
||
|
21
|
21
515178146 CAPUCHON DESS *CAP-DESS. |
515178146 |
US $48.93 |
||
|
22
|
22
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
24
|
24
515177814 CAPTEUR TEMP. *SENSOR-TEMP. |
515177814 |
US $49.93 |
||
|
25
|
25
515177022 LH HOUSING |
515177022 |
US $202.93 |
||
|
26
|
26
293750009 Tie rap 173mm *tie-rap 173mm |
293750009 |
US $6.70 |
||
|
27
|
27
293800018 Scellant tuyau *sealant-pipe |
293800018 |
US $38.71 |
||
|
29
|
29
250200082 Rondelle plate *flat washer |
250200082 |
US $5.40 |
||
|
36
|
36
414115200 Tie-rap 180 mm |
414115200 |
US $7 |
||
|
37
|
37
410301203 Batterie ytx20lbs*battery18amps(wet) |
410301203 |
US $190.18 |
||
| replacement | |||||
|
37
|
37
296000444 BATTERY 12 VOLT 18AH INBOX |
296000444 |
US $187.24 |
||
|
38
|
38
250000282 BOLT KIT |
250000282 |
US $19.10 |
||
|
40
|
40
515177914 INDICATEUR *INDICATOR |
515177914 |
US $490.57 |
||
|
41
|
41
415129355 Bouton indica*button speedometer |
415129355 |
US $21.23 |
||
|
42
|
42
415129370 Anneau cadran *ring-gauge |
415129370 |
US $15.10 |
||
|
43
|
43
415129349 Lentille *lens |
415129349 |
US $25.38 |
||
|
52
|
52
414644300 Dard pare-brise*dart-windshield 1=1 pac |
414644300 |
US $13.10 |
||
|
53
|
53
293450275 Ajout *insert |
293450275 |
US $13.50 |
||
|
61
|
61
515175662 Log.pt male .*housing-term.male |
515175662 |
US $9.67 |
||
|
63
|
63
515175817 Log.pt male .*housing-term.male |
515175817 |
US $8.38 |
||
|
65
|
65
515175926 Plate (cover) house-switch lh |
515175926 |
US $17.37 |
||
|
68
|
68
515176358 Fil de masse *wire-ground |
515176358 |
US $23.41 |
||
|
69
|
69
515176364 Regulator-volt |
515176364 |
US $145.83 |
||
|
72
|
72
515176681 Verrou femelle*lock female |
515176681 |
US $17.82 |
||
|
74
|
74
515177066 CLIP |
515177066 |
US $4.05 |
||
|
76
|
76
515177208 BATTERY/STARTER WIRE |
515177208 |
US $26.49 |
||
|
77
|
77
515177249 DESS SWITCH |
515177249 |
US $75.45 |
||
|
78
|
78
515177264 SUPPORT *SUPPORT |
515177264 |
US $26.49 |
||
|
79
|
79
515177266 LANIERE BATTERI*STRIP-BATTERY |
515177266 |
US $14.67 |
||
|
80
|
80
515177289 GROUND WIRE |
515177289 |
US $22.39 |
||
|
81
|
81
515177310 KILL SWITCH SUPPORT |
515177310 |
US $8.38 |
||
|
82
|
82
515177362 KILL SWITCH |
515177362 |
US $85.65 |
||
|
83
|
83
515177609 STEERING WIRING HARNESS |
515177609 |
US $96.87 |
||
|
85
|
85
515177832 CABLAGE *HARNESS |
515177832 |
US $68.29 |
||
|
86
|
86
515177980 CABLAGE ASS. *WIRING HARNESS |
515177980 |
US $396.75 |
||
|
90
|
90
518325560 Rondelle *adhesive patch |
518325560 |
US $5.87 |
||
|
92
|
92
710000495 Capuchon prot *protector cap |
710000495 |
US $12.22 |
||
|
93
|
93
293750001 Tie rap 94mm *tie-rap 94mm |
293750001 |
US $66.50 |
||
