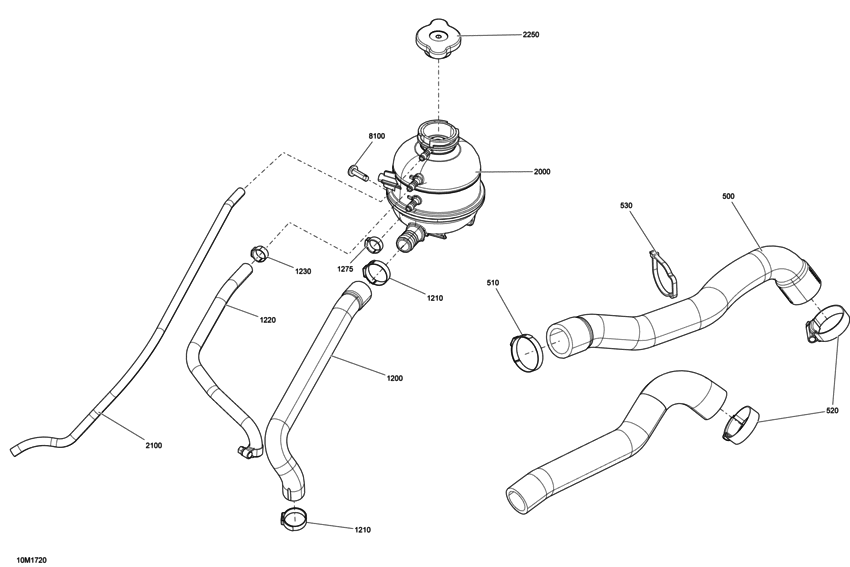

01- Cooling System - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
500
|
500
509000963 COOLING HOSE |
509000963 |
US $23.41 |
||
|
510
|
510
293650254 OETIKER CLAMP |
293650254 |
US $9.79 |
||
|
520
|
520
509000443 Bride serrage *gear clamp |
509000443 |
US $14.14 |
||
|
530
|
530
293750008 Tie rap 350mm *tie-rap 350mm |
293750008 |
US $13.40 |
||
|
1200
|
1200
509000967 COOLING HOSE |
509000967 |
US $21.39 |
||
|
1210
|
1210
509000442 Clamp |
509000442 |
US $6.95 |
||
|
1220
|
1220
509000968 COOLING HOSE |
509000968 |
US $10.17 |
||
|
1230
|
1230
293650046 Bride serrage *clamp-oetiker |
293650046 |
US $19.15 |
||
|
1275
|
1275
293650046 Bride serrage *clamp-oetiker |
293650046 |
US $19.15 |
||
|
2000
|
2000
509000970 COOLANT TANK |
509000970 |
US $84.61 |
||
|
2100
|
2100
276000048 Boyau 6mm. *hose-6mm. |
276000048 |
US $121.95 |
||
|
2250
|
2250
509000180 Bouchon radiat.*pressure cap |
509000180 |
US $22.39 |
||
|
8100
|
8100
250000870 TORX T-30 PAN HD TAPTITE M6X20 |
250000870 |
US $3.98 |
