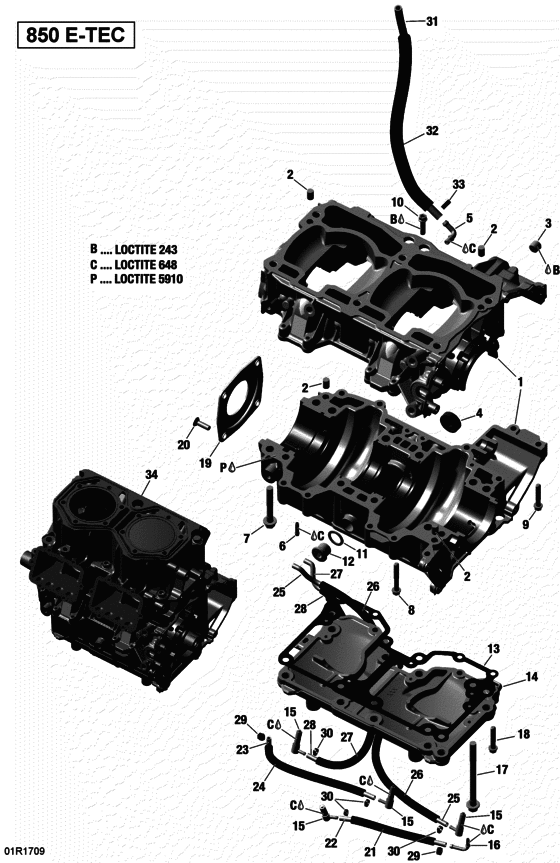

01- Crankcase - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1>6
|
1>6
420893773 CRANKCASE ASS Y |
420893773 |
US $1,615.68 |
||
|
2
|
2
420632010 Goupille *pin-center |
420632010 |
US $5.17 |
||
|
3
|
3
420840658 PLUG SCREW M12 X 1.5 |
420840658 |
US $9.55 |
||
|
4
|
4
420232100 Roulement bille*ball bearing |
420232100 |
US $21.42 |
||
|
5
|
5
420924523 RACCORD 90D *FITTING 90D |
420924523 |
US $9.13 |
||
|
6
|
6
420924159 NIPPLE |
420924159 |
US $5.71 |
||
|
7
|
7
420941627 Collar-hex. screw m8x56,5 |
420941627 |
US $8.13 |
||
|
8
|
8
420440324 FLANGED TORX SCREW M6 X 45 |
420440324 |
US $1.26 |
||
|
9
|
9
420440274 FLANGED TORX SCREW M6 X 35 |
420440274 |
US $1.31 |
||
|
10
|
10
420440235 FLANGED TORX SCREW M6 X 25 |
420440235 |
US $2.72 |
||
|
11
|
11
420430622 Gasket ring |
420430622 |
US $5.71 |
||
|
12
|
12
420640457 PLUG SCREW |
420640457 |
US $16.42 |
||
|
13
|
13
420430072 GASKET ENGINE SUPPORT |
420430072 |
US $29.38 |
||
|
14>16
|
14>16
420812687 ENGINE SUPPORT |
420812687 |
US $194.79 |
||
|
15
|
15
420956510 Soupape retenue*valve-check |
420956510 |
from US $32.61 |
||
|
16
|
16
420924051 FITTING 90D |
420924051 |
US $10.52 |
||
|
17
|
17
420941517 Collar hex. screw m8*105 sw11 |
420941517 |
US $10.17 |
||
|
18
|
18
420440274 FLANGED TORX SCREW M6 X 35 |
420440274 |
US $1.31 |
||
|
19
|
19
420812420 Couvercle *cover oil seal |
420812420 |
US $14.25 |
||
|
20
|
20
420941436 Screw-socket din.7991 m6 x 20 |
420941436 |
US $4.10 |
||
|
21
|
21
420201544 OIL LINE 140MM |
420201544 |
US $3.01 |
||
|
22
|
22
420460042 CORRUGATED TUBE 390MM |
420460042 |
US $8.13 |
||
|
23
|
23
420201543 OIL LINE 180MM |
420201543 |
US $4.05 |
||
|
24
|
24
420460040 Tube *corrugated tube |
420460040 |
US $8.13 |
||
|
25
|
25
420201541 OIL LINE 445MM |
420201541 |
US $5.07 |
||
|
26
|
26
420460042 CORRUGATED TUBE 390MM |
420460042 |
US $8.13 |
||
|
27
|
27
420201542 OIL LINE 365MM |
420201542 |
US $4.05 |
||
|
28
|
28
420460042 CORRUGATED TUBE 390MM |
420460042 |
US $8.13 |
||
|
29
|
29
420853138 CLAMP 5,8-7,0MM |
420853138 |
US $2.01 |
||
|
30
|
30
420851508 Clamp |
420851508 |
US $12.19 |
||
|
31
|
31
420201551 OIL LINE 310MM |
420201551 |
US $7.09 |
||
|
32
|
32
420460047 Glissiere came *shoe-cam slide |
420460047 |
US $12.19 |
||
| replacement | |||||
|
32
|
32
417223021 Glissiere *shoe-slider |
417223021 |
from US $7.96 |
||
|
33
|
33
420853653 Clamp 8,3-10mm *clamp 8,3-10mm |
420853653 |
US $9.45 |
||
|
34
|
34
420084901 SHORT BLOCK 850R E-TEC |
420084901 |
US $8,500.78 |
||
