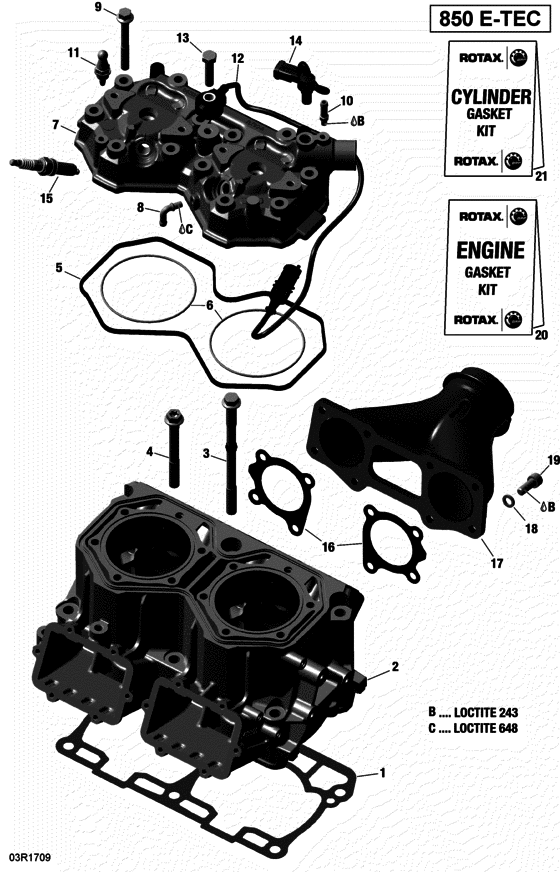

01- Cylinder And Cylinder Head - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420831020 DOUBLE GASKET 0.5 MM |
420831020 |
US $16.29 |
||
|
1
|
1
420831021 DOUBLE GASKET 0.6 MM |
420831021 |
US $18.33 |
||
|
1
|
1
420831022 DOUBLE GASKET 0.7 MM |
420831022 |
US $18.33 |
||
|
1
|
1
420831023 DOUBLE GASKET 0.8 MM |
420831023 |
US $20.37 |
||
|
1
|
1
420831024 DOUBLE GASKET 0.9 MM |
420831024 |
US $21.39 |
||
|
2
|
2
420413304 CYLINDER |
420413304 |
US $1,253.12 |
||
| replacement | |||||
|
2
|
2
420413575 CYLINDER |
420413575 |
US $1,253.12 |
||
|
3
|
3
420641762 Screw-hex collar |
420641762 |
US $16.29 |
||
|
4
|
4
420441187 Torx-flange screw |
420441187 |
US $17.29 |
||
|
5
|
5
420430042 SQUARE RING |
420430042 |
US $13.21 |
||
|
6
|
6
420931410 Joint torique *o ring |
420931410 |
US $21.42 |
||
|
7>8
|
7>8
420413292 HEAD CYLINDER COVER |
420413292 |
US $384.51 |
||
|
8
|
8
420924523 RACCORD 90D *FITTING 90D |
420924523 |
US $9.13 |
||
|
9
|
9
420640954 HEX. SCREW M8 X 68.5 |
420640954 |
US $6.07 |
||
|
10
|
10
420924724 HOSE NIPPLE |
420924724 |
US $16.42 |
||
|
11
|
11
420441842 DISTANCE SCREW M6 |
420441842 |
US $5.07 |
||
|
12
|
12
420664031 NOISE SENSOR |
420664031 |
US $68.24 |
||
|
13
|
13
207083544 Screw-hex.cap din.931 |
207083544 |
US $14.80 |
||
|
14
|
14
420664507 TEMPERATURE SENSOR |
420664507 |
US $87.67 |
||
|
15
|
15
415130154 Spark Plug |
415130154 |
US $105.96 |
||
|
16
|
16
420430486 GASKET |
420430486 |
US $10.15 |
||
|
17
|
17
420873030 EXHAUST MANIFOLD |
420873030 |
US $275.37 |
||
|
18
|
18
420427290 WASHER |
420427290 |
US $2.01 |
||
|
19
|
19
420841051 ALLEN SCREW M8X22 |
420841051 |
US $2.01 |
||
|
20
|
20
420894265 GASKET SET ENGINE |
420894265 |
US $326.37 |
||
|
21
|
21
420894260 GASKET SET CYLINDER |
420894260 |
US $265.17 |
||
