	Description	OEM Part #	Price
1	1 XXX Not Sold	XXX	—
2>9	2>9 420891473 WATER PUMP SHAFT ASS Y	420891473	US $269.25
3	3 420847930 COLLET *STEP COLLAR	420847930	US $34.65
4	4 420230195 Anneau etanche *seal-oil	420230195	US $16.92
5	5 420927057 THRUST WASHER	420927057	US $2.01
6	6 420232100 Roulement bille*ball bearing	420232100	US $21.42
7	7 420650370 Joint tournant *rotary seal	420650370	US $46.37
	replacement
7	7 420650371 ROTARY SEAL	420650371	US $52.63
8	8 XXX Not Sold	XXX	—
9	9 420950890 Joint torique *o ring	420950890	US $5.71
10	10 420840511 Screw-allen m5 x 16	420840511	US $1.79
11	11 420944033 Rondelle 8.4 *washer-8.4	420944033	US $13.10 ~~US $13.10~~
12	12 420922805 Turbine a eau *impeller-water	420922805	US $33.61
13	13 420430052 GASKET COVER WATER PUMP	420430052	US $13.21
14	14 420822285 WATER PUMP HOUSING	420822285	US $55.03
15	15 420440235 FLANGED TORX SCREW M6 X 25	420440235	US $2.72
16	16 420822801 MOLDED HOSE	420822801	US $74.41
17	17 420251221 CLAMP 30-45MM	420251221	US $14.25
18>19	18>19 420822833 THERMOSTAT HOUSING	420822833	US $71.35
19	19 420430060 Joint torique *o-ring	420430060	US $9.13
20	20 420939344 SPRING CLIP	420939344	US $2.01
21	21 420822820 HOSE RETURN	420822820	US $10.17
22	22 420951123 CLAMP 34.9-38.1MM	420951123	US $4.05
23	23 420866716 Attache *tie rap	420866716	US $2.45
24	24 420201516 MOLDED HOSE	420201516	US $11.93
25	25 420201512 MOLDED HOSE	420201512	US $10.17
26	26 420853511 CLAMP	420853511	US $7.53
27	27 420851250 Bride *clamp	420851250	US $9.13
28	28 420851458 Clamp	420851458	US $9.45

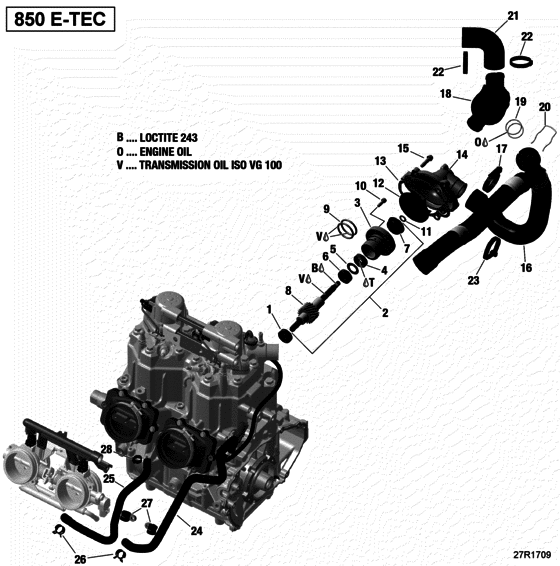

01- Engine Cooling - All Models Diagram Bombardier MX Z 17643593-901647
