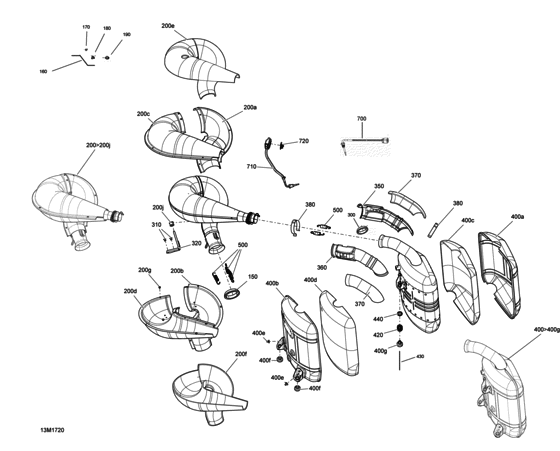

01- Exhaust System - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
150
|
150
514053487 Joint echapp. *gasket-exhaust |
514053487 |
US $58.44 |
||
|
160
|
160
XXX
Not Sold
|
XXX |
— | ||
|
170
|
170
XXX
Not Sold
|
XXX |
— | ||
|
180
|
180
XXX
Not Sold
|
XXX |
— | ||
|
190
|
190
XXX
Not Sold
|
XXX |
— | ||
|
200>200j
|
200>200j
514055191 TUNE PIPE |
514055191 |
US $795.57 |
||
|
200a
|
200a
514055222 ALUMINIUM SHELL |
514055222 |
US $34.65 |
||
|
200b
|
200b
514055223 ALUMINIUM SHELL |
514055223 |
US $34.65 |
||
|
200c
|
200c
514055273 UPPER REAR SHELL |
514055273 |
US $73.41 |
||
|
200d
|
200d
514055274 LOW REAR SHELL |
514055274 |
US $73.41 |
||
|
200e
|
200e
514055220 WOOL |
514055220 |
US $19.33 |
||
|
200f
|
200f
514055385 WOOL |
514055385 |
US $19.33 |
||
|
200g
|
200g
390909200 Rivet avex *rivet avex |
390909200 |
US $19.50 |
||
|
200j
|
200j
514055410 RUBBER |
514055410 |
US $2.01 |
||
|
300
|
300
514055294 JOINT ECHAPP. *EXHAUST GASKET |
514055294 |
US $22.39 |
||
|
310
|
310
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
320
|
320
514055214 WELDED SUPPORT |
514055214 |
US $9.13 |
||
|
350
|
350
514055283 FRONT SHEILD |
514055283 |
US $34.65 |
||
|
360
|
360
514055284 REAR SHEILD |
514055284 |
US $34.65 |
||
|
370
|
370
514055285 WOOL |
514055285 |
US $4.05 |
||
|
380
|
380
514055392 CLIP |
514055392 |
US $15.73 |
||
|
400>400g
|
400>400g
514055193 MUFFLER ASS Y |
514055193 |
US $795.57 |
||
|
400a
|
400a
514055199 RH DEFLECTOR |
514055199 |
US $48.93 |
||
|
400b
|
400b
514055200 LH DEFLECTOR |
514055200 |
US $48.93 |
||
|
400c
|
400c
514055201 WOOL |
514055201 |
US $18.33 |
||
|
400d
|
400d
514055202 ACOUSTIC INSULATION |
514055202 |
US $19.33 |
||
|
400e
|
400e
390909100 Rivet avex *rivet avex |
390909100 |
US $19.50 |
||
|
400f
|
400f
514055203 STOPPER |
514055203 |
US $19.33 |
||
|
400g
|
400g
514055422 STOPPER |
514055422 |
US $12.19 |
||
|
420
|
420
514055282 SPRING |
514055282 |
US $8.21 |
||
|
430
|
430
250000926 HEX. FLANGED SCREW M6 |
250000926 |
US $1.31 |
||
|
440
|
440
XXX
Not Sold
|
XXX |
— | ||
|
500
|
500
514055198 SPRING |
514055198 |
US $8.21 |
||
|
700
|
700
XXX
Not Sold
|
XXX |
— | ||
|
710
|
710
515178170 MODULE |
515178170 |
US $452.85 |
||
|
720
|
720
514055393 SUPPORT *SUPPORT |
514055393 |
US $4.20 |
