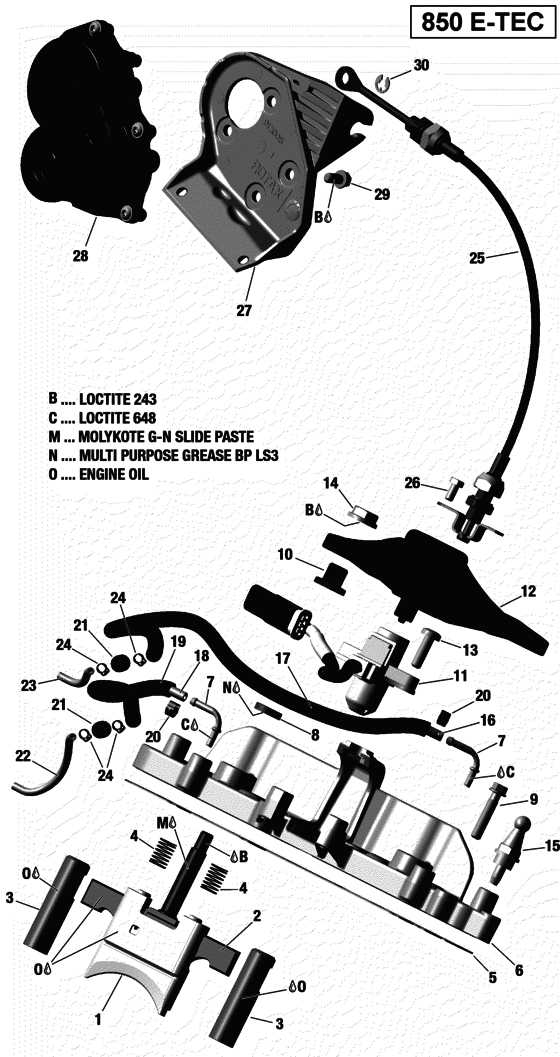

01- Rave Valve - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420954051 UPPER EXHAUST VALVE |
420954051 |
US $60.13 |
||
|
2
|
2
420954058 LOWER EXHAUST VALVE |
420954058 |
US $89.73 |
||
|
3
|
3
420954040 EXHAUST VALVE |
420954040 |
US $18.33 |
||
|
4
|
4
420238558 SPRING |
420238558 |
US $5.07 |
||
|
5
|
5
420430036 GASKET VALVE ROD HOUSING |
420430036 |
US $10.15 |
||
| replacement | |||||
|
5
|
5
420430037 GASKET VALVE ROD HOUSING |
420430037 |
US $10.15 |
||
|
6>7
|
6>7
420954038 VALVE HOUSING |
420954038 |
US $88.69 |
||
|
7
|
7
420924051 FITTING 90D |
420924051 |
US $10.52 |
||
|
8
|
8
420950730
Anneau etanche *seal-oil
|
420950730 |
— | ||
| replacement | |||||
|
8
|
8
420950732
Anneau etanche *seal-oil
|
420950732 |
— | ||
|
9
|
9
420440647 Vis hexalob.epa*screw-torx flange |
420440647 |
US $2.60 |
||
|
10
|
10
420942330 COLLAR NUT M8 |
420942330 |
US $4.05 |
||
|
11
|
11
XXX
Not Sold
|
XXX |
— | ||
|
11>12
|
11>12
420855295 VALVE BAR WITH POSITION SENSOR |
420855295 |
US $102.99 |
||
|
12
|
12
XXX
Not Sold
|
XXX |
— | ||
|
13
|
13
420441386 FLANGED TORX SCREW M6 X 20 |
420441386 |
US $27.20 |
||
|
14
|
14
420942190 Ecrou*collar nut |
420942190 |
US $12.19 |
||
|
15
|
15
420441842 DISTANCE SCREW M6 |
420441842 |
US $5.07 |
||
|
16
|
16
420201541 OIL LINE 445MM |
420201541 |
US $5.07 |
||
|
17
|
17
420460042 CORRUGATED TUBE 390MM |
420460042 |
US $8.13 |
||
|
18
|
18
420201541 OIL LINE 445MM |
420201541 |
US $5.07 |
||
|
19
|
19
420460042 CORRUGATED TUBE 390MM |
420460042 |
US $8.13 |
||
|
20
|
20
420853138 CLAMP 5,8-7,0MM |
420853138 |
US $2.01 |
||
|
21
|
21
420956515 Soupape seceri.*valve-check |
420956515 |
US $24.45 |
||
|
22
|
22
420201548 OIL LINE 102MM |
420201548 |
US $4.05 |
||
|
23
|
23
420201548 OIL LINE 102MM |
420201548 |
US $4.05 |
||
|
24
|
24
420851508 Clamp |
420851508 |
US $12.19 |
||
|
25
|
25
420997032 RAVE CABLE ASSY |
420997032 |
US $110.13 |
||
|
26
|
26
205051060 Screw-socket hd.din.912a2 |
205051060 |
US $20.40 |
||
|
27
|
27
420912005 MOUNTING BRACKET |
420912005 |
US $18.33 |
||
|
28
|
28
420889431 SERVOMOTOR |
420889431 |
US $203.97 |
||
|
29
|
29
420440149 FLANGED HEX. SCREW M6 X 12 |
420440149 |
US $2.72 |
||
|
30
|
30
420-945-710 Circlip demar. *circlip-rewind |
420-945-710 |
US $0.65 |
||
