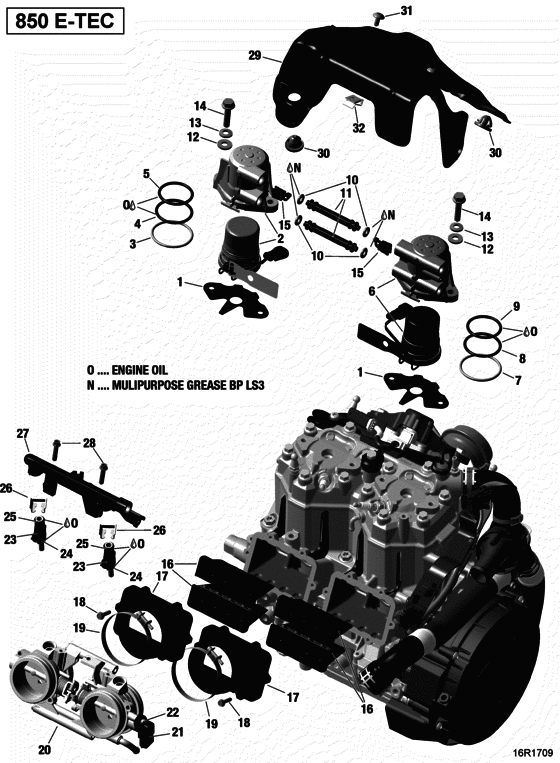

02- Efi - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
420430055 GASKET |
420430055 |
US $8.13 |
||
|
2>5
|
2>5
420874843
FUEL INJECTOR PTO
|
420874843 |
— | ||
|
3
|
3
415129497 CRUSH RING |
415129497 |
US $17.29 |
||
|
4
|
4
415129498 O-RING |
415129498 |
US $16.29 |
||
|
5
|
5
415129499 O-RING |
415129499 |
US $15.27 |
||
|
6>9
|
6>9
420874844 FUEL INJECTOR MAG |
420874844 |
US $513.03 |
||
|
7
|
7
415129497 CRUSH RING |
415129497 |
US $17.29 |
||
|
8
|
8
415129498 O-RING |
415129498 |
US $16.29 |
||
|
9
|
9
415129499 O-RING |
415129499 |
US $15.27 |
||
|
10
|
10
420430775 O-RING |
420430775 |
US $5.71 |
||
|
11
|
11
420874190 INJECTOR CONNECTING TUBE |
420874190 |
US $5.07 |
||
|
12
|
12
420901550 FLAT WASHER |
420901550 |
US $2.01 |
||
|
13
|
13
420245462 SPRING WASHER |
420245462 |
US $0.97 |
||
|
14
|
14
420840090 SCREW-HEX.M8 X 35 |
420840090 |
US $2.01 |
||
|
15
|
15
420951785 TIE RAP WITH MOUNT |
420951785 |
US $5.71 |
||
|
16
|
16
420924798 REED VALVE ASS Y |
420924798 |
US $96.87 |
||
|
17
|
17
420867390 INTAKE SOCKET |
420867390 |
US $103.99 |
||
|
18
|
18
420841550 Screw-tapping m5 x 22 |
420841550 |
US $16.30 |
||
|
19
|
19
420251209 Hose clamp |
420251209 |
US $10.47 |
||
|
20>22
|
20>22
420893800 THROTTLE BODY SOCKET |
420893800 |
US $1,216.84 |
||
|
21>22
|
21>22
420866680 POSITION SENSOR |
420866680 |
US $61.15 |
||
|
22
|
22
XXX
Not Sold
|
XXX |
— | ||
|
23>25
|
23>25
420874842 INJECTION VALVE ASS Y |
420874842 |
US $159.09 |
||
|
24
|
24
420431890 Joint torique *o-ring |
420431890 |
US $9.35 |
||
|
25
|
25
420631220 Joint torique *o-ring |
420631220 |
US $15.35 |
||
|
26
|
26
420853030 Attache *clip |
420853030 |
US $4.10 |
||
|
27
|
27
420874152 FUEL RAIL |
420874152 |
US $20.37 |
||
|
28
|
28
420440235 FLANGED TORX SCREW M6 X 25 |
420440235 |
US $2.72 |
||
|
29>32
|
29>32
420910827 COVER |
420910827 |
US $190.69 |
||
|
30
|
30
420201630 CAPUCHON *RUBBER CAP |
420201630 |
US $4.05 |
||
|
31
|
31
420241535 Vis hexalob. *screw-hex.m6x13 |
420241535 |
US $3.01 |
||
|
32
|
32
420242141 NUT M6 |
420242141 |
US $2.01 |
