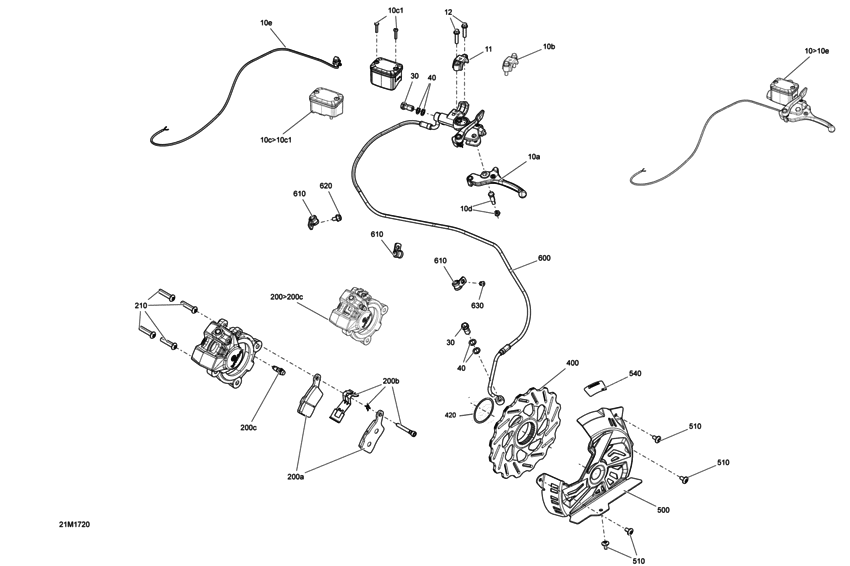

06- Brakes - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10>10e
|
10>10e
507032591 CYLINDER MASTER |
507032591 |
US $271.29 |
||
|
10a
|
10a
507032476 Levier *lever |
507032476 |
US $64.96 |
||
|
10b
|
10b
507032477 Bride *clamp |
507032477 |
US $26.30 |
||
|
10c1
|
10c1
415129356 Vis m4 x 20 *screw m4 x 20 |
415129356 |
US $2.86 |
||
|
10c>10c1
|
10c>10c1
507032478 Master Cylinder Reservoir Ass'y. XS, XM |
507032478 |
US $120.33 |
||
|
10d
|
10d
415030000 Axe *pin |
415030000 |
US $17.12 |
||
|
10e
|
10e
507032601 MICROSWITCH |
507032601 |
US $65.25 |
||
|
11
|
11
719000049 CLAMPS KIT |
719000049 |
US $16.42 |
||
|
12
|
12
250000447 HEX FLANGED SCREW M6 X 25 |
250000447 |
US $2.72 |
||
|
30
|
30
507032551 BANJO BOLT |
507032551 |
US $7.26 |
||
|
40
|
40
705600310 Rondelle cuivre*copper washer |
705600310 |
US $57.50 |
||
| replacement | |||||
|
40
|
40
705601628 COPPER WASHER |
705601628 |
US $57.50 |
||
|
200>200c
|
200>200c
507032594 BRAKE CALIPER ASS Y |
507032594 |
US $406.95 |
||
|
200a
|
200a
507032473 Plaquet frein *brake pads |
507032473 |
US $65.35 |
||
|
200b
|
200b
507032474 Ens. ressort *spring brake |
507032474 |
US $36.69 |
||
|
200c
|
200c
507032475 Vis purge *bleeder |
507032475 |
US $17.12 |
||
|
210
|
210
250000764 SCREW-TORX BUTTON HEAD M8 X 35 |
250000764 |
US $13 |
||
|
400
|
400
507032487 Disque usine *disk-mach. |
507032487 |
US $228.80 |
||
|
420
|
420
293300134 Joint torique *o ring |
293300134 |
US $2.18 |
||
|
500
|
500
507032588 BLACK DISK PROTECTOR |
507032588 |
US $42.81 |
||
|
510
|
510
250000767 TORX-TRUSS M/S NYLON PATCH M6 X 12 |
250000767 |
US $2.60 |
||
|
540
|
540
516007652 WARNING DECAL |
516007652 |
US $0.02 |
||
|
600
|
600
507032621 BRAKE HOSE |
507032621 |
US $56.05 |
||
|
610
|
610
293650256 CLAMP |
293650256 |
US $7.26 |
||
|
620
|
620
210261040 Screw-forming hex.hd.fl.din.7500d |
210261040 |
US $9.60 |
||
|
630
|
630
390402400 Rivet-pop 3/16 *rivet-pop 3/16 |
390402400 |
US $22 |
||
