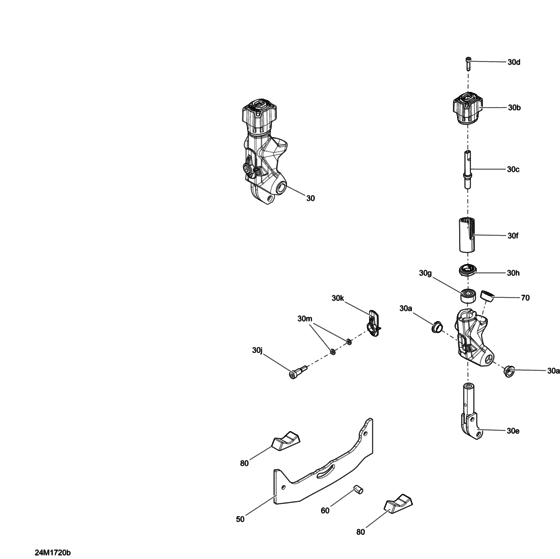

07- Pilot Ts Adjustable Skis Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30
|
30
505074118 MECANISME |
505074118 |
US $334.53 |
||
|
30
|
30
505074119 MECANISME |
505074119 |
US $334.53 |
||
|
30a
|
30a
505073773 COUSSINET *BUSHING |
505073773 |
US $22.39 |
||
|
30b
|
30b
415130043 MECHANISM REPAIR KIT |
415130043 |
US $48.93 |
||
|
30c
|
30c
505073771 ARBRE *SHAFT |
505073771 |
US $36.69 |
||
|
30d
|
30d
250000925 SOCKET HEAD SCREW M6 X 25 S.GRIP |
250000925 |
US $2.70 |
||
|
30e
|
30e
505073761 EMBOUT *TIP WELDED |
505073761 |
US $67.29 |
||
|
30f
|
30f
415130043 MECHANISM REPAIR KIT |
415130043 |
US $48.93 |
||
|
30g
|
30g
505073785 RESSORT *SPRING |
505073785 |
US $8.55 |
||
|
30h
|
30h
415130043 MECHANISM REPAIR KIT |
415130043 |
US $48.93 |
||
|
30j
|
30j
505073767 VIS *SCREW |
505073767 |
US $3.15 |
||
|
30k
|
30k
415130043 MECHANISM REPAIR KIT |
415130043 |
US $48.93 |
||
|
30m
|
30m
293300013 Joint torique *o-ring |
293300013 |
US $100 |
||
|
50
|
50
860201178 RUNNER KIT |
860201178 |
US $138.69 |
||
|
60
|
60
505073782 PIGE *PIN |
505073782 |
US $8.55 |
||
|
70
|
70
505073772 GROMMET *GROMMET |
505073772 |
US $8.55 |
||
|
80
|
80
505073788 BUTEE DE SKI *STOPPER-SKI |
505073788 |
US $12.22 |
