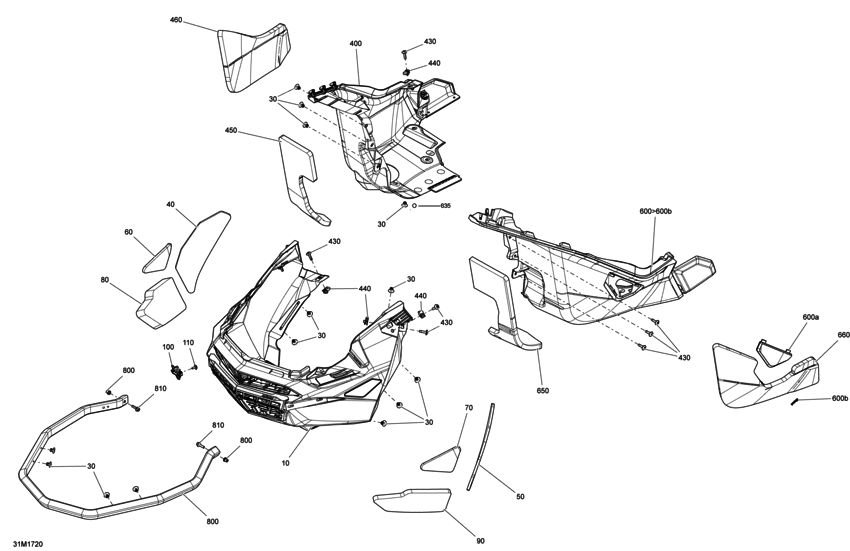

09- Bottom Pan - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
502007456 BOTTOM PAN - FRONT |
502007456 |
US $133.57 |
||
|
30
|
30
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
40
|
40
502007463 FOAM |
502007463 |
US $11 |
||
|
50
|
50
502007653 FOAM |
502007653 |
US $11 |
||
|
60
|
60
502007545 FOAM |
502007545 |
US $7.33 |
||
|
70
|
70
502007546 FOAM |
502007546 |
US $11 |
||
|
80
|
80
502007465 FOAM |
502007465 |
US $12.94 |
||
|
90
|
90
502007466 FOAM |
502007466 |
US $11 |
||
|
100
|
100
502007645 FRONT BOTTOM PAN LOGO |
502007645 |
US $10.88 |
||
|
110
|
110
250000805 SCREW PLASTITE TYPE K-40 M4 X 10 |
250000805 |
US $2.72 |
||
|
400
|
400
502007458 BOTTOM PAN - RH |
502007458 |
US $85.65 |
||
|
430
|
430
250000586 TORX-TRUSS M/S NYLON PATCH M5X20 |
250000586 |
US $5.71 |
||
|
440
|
440
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
450
|
450
502007547 FOAM |
502007547 |
US $10.76 |
||
|
460
|
460
502007548 FOAM |
502007548 |
US $10.76 |
||
|
600>600b
|
600>600b
502007634 LH BOTTOM PAN ASSEMBLY |
502007634 |
US $85.65 |
||
|
600a
|
600a
502007576 DOOR - BOTTOM PAN |
502007576 |
US $48.93 |
||
|
600b
|
600b
269800431 GOUPILLE RESSOR*HAIRPIN CUTTER |
269800431 |
US $6.52 |
||
|
635
|
635
250200025 Rondelle m5 *washer m5 |
250200025 |
US $9.50 |
||
|
650
|
650
502007549 FOAM |
502007549 |
US $13.45 |
||
|
660
|
660
502007550 FOAM |
502007550 |
US $10.76 |
||
|
800
|
800
502007460 BUMPER |
502007460 |
US $113.19 |
||
|
810
|
810
207552044 HEX. FLANGED SCREW M5 X 20, SCOTCH GRIP |
207552044 |
US $13.90 |
