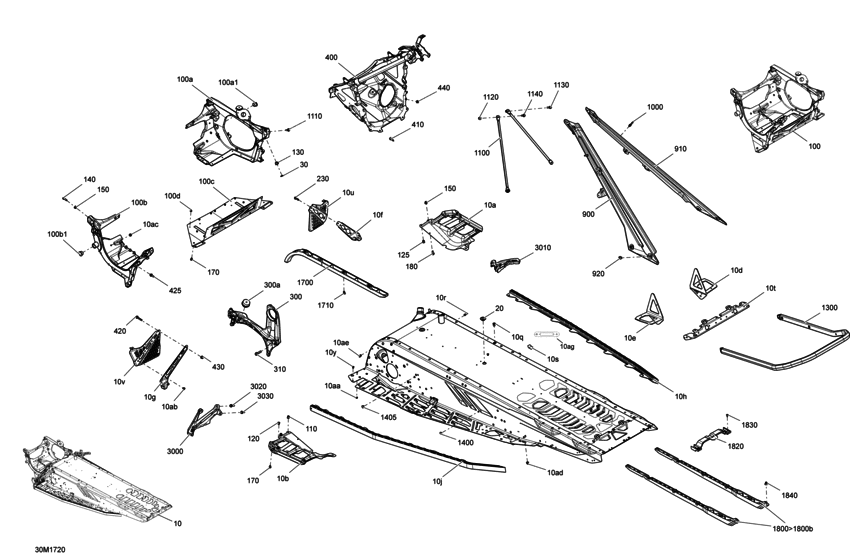

09- Frame - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10>10ag
|
10>10ag
415130142 BLACK FRAME 129 |
415130142 |
US $3,468.02 |
||
|
10a
|
10a
518328455 FOOTREST REINFORCEMENT |
518328455 |
US $21.39 |
||
|
10aa
|
10aa
293150144 Rivet stavex *stavex rivet |
293150144 |
US $21.80 |
||
|
10ab
|
10ab
293150096 Rivet *rivet |
293150096 |
US $21.10 |
||
|
10ac
|
10ac
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
10ad
|
10ad
293150174 Rivet hemlok *hemlok rivet |
293150174 |
US $96.10 |
||
|
10ae
|
10ae
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
10af
|
10af
518328512 WELDED RADIATOR |
518328512 |
US $675.21 |
||
|
10ag
|
10ag
518329480 MEMBER FIXATION PLATE |
518329480 |
US $9.78 |
||
|
10b
|
10b
518328456 FOOTREST REINFORCEMENT |
518328456 |
US $21.39 |
||
|
10d
|
10d
518328449 SUSPENSION BRACKET |
518328449 |
US $18.33 |
||
|
10e
|
10e
518328450 SUSPENSION BRACKET |
518328450 |
US $18.33 |
||
|
10f
|
10f
518329048 RIGHT REINFORCEMENT FOOTREST |
518329048 |
US $18.33 |
||
|
10g
|
10g
518329049 LEFT REINFORCEMENT FOOTREST |
518329049 |
US $18.33 |
||
|
10h
|
10h
518328451 RIGHT ROLLER |
518328451 |
US $170.29 |
||
|
10j
|
10j
518328452 LEFT ROLLER |
518328452 |
US $170.29 |
||
|
10q
|
10q
293450232 Ajout *insert |
293450232 |
US $4.05 |
||
|
10r
|
10r
250300027 Goujon + sertir*clinch stud |
250300027 |
US $2.72 |
||
|
10s
|
10s
210261050 SCREW-FORMING HEX.HD.FL.DIN.7500D |
210261050 |
US $21.90 |
||
|
10t
|
10t
518328990 REAR CAP |
518328990 |
US $19.92 |
||
|
10u
|
10u
518328460 RIGHT FOOTREST |
518328460 |
US $37.71 |
||
|
10v
|
10v
518328463 LEFT FOOTREST |
518328463 |
US $37.71 |
||
|
10y
|
10y
293150203 AVIBULB *AVIBULB |
293150203 |
US $2.01 |
||
|
20
|
20
293730052 BLACK PLUG |
293730052 |
US $12.52 |
||
|
30
|
30
506151252 Rondelle *washer |
506151252 |
US $102.50 |
||
|
70
|
70
250000942 HEX. SCREW M8 X 30 |
250000942 |
US $1.48 |
||
|
80
|
80
250200111 RONDELLE PLATE *FLAT WASHER M8 |
250200111 |
US $10.88 |
||
|
90
|
90
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
100>100d
|
100>100d
518328485 RIVETED MODULE E |
518328485 |
US $673.18 |
||
|
100a1
|
100a1
505073317 LEG CUSHION |
505073317 |
US $6.26 |
||
|
100a>100a1
|
100a>100a1
518328487 RIGHT MEMBER ASSEMBLY |
518328487 |
US $201.93 |
||
|
100b1
|
100b1
505073317 LEG CUSHION |
505073317 |
US $6.26 |
||
|
100b>100b1
|
100b>100b1
518328490 LEFT MEMBER ASSEMBLY |
518328490 |
US $201.93 |
||
|
100c
|
100c
518328486 BOTTOM PLATE |
518328486 |
US $30.57 |
||
|
100d
|
100d
293150203 AVIBULB *AVIBULB |
293150203 |
US $2.01 |
||
|
110
|
110
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
120
|
120
250000712 TORX SCREW M6 X 20 |
250000712 |
US $2.72 |
||
|
125
|
125
293150147 Rivet *rivet |
293150147 |
US $4.22 |
||
|
130
|
130
233281414 Nut-flange elastic din.6926 |
233281414 |
US $18.50 |
||
|
140
|
140
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
150
|
150
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
170
|
170
293450268 Ajout *insert |
293450268 |
US $2.60 |
||
|
180
|
180
207661644 Screw-hex.flange din.6921 |
207661644 |
US $23.75 |
||
|
230
|
230
207562044
Screw-hex.flange din.6921 s.grip
|
207562044 |
— | ||
|
300
|
300
518328693 ASSEMBLY BRACE |
518328693 |
US $308.01 |
||
|
300a
|
300a
512060295 RUBBER MOUNT |
512060295 |
US $58.62 |
||
|
310
|
310
210283040 SCREW-FORMING HEX.HD.FL. DIN.7500D |
210283040 |
US $2.72 |
||
|
400
|
400
518328476 S MODULE |
518328476 |
US $704.07 |
||
| replacement | |||||
|
400
|
400
518332096 Suspension Module |
518332096 |
US $704.07 |
||
|
410
|
410
250000822 SCREW-FORMING HEX.HD.FL. M6 X 16 |
250000822 |
US $2.01 |
||
|
420
|
420
207663544 Screw-hex.flange din.6921 |
207663544 |
US $29.25 |
||
|
425
|
425
XXX
Not Sold
|
XXX |
— | ||
|
430
|
430
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
440
|
440
293150119 Rivet *rivet |
293150119 |
US $28.55 |
||
|
900
|
900
518329077 LEFT MEMBER BLACK |
518329077 |
US $103.99 |
||
|
910
|
910
518329078 RIGHT MEMBER BLACK |
518329078 |
US $103.99 |
||
|
920
|
920
250000887 PAN HEAD TORX SCREW M8 X 12 |
250000887 |
US $2.45 |
||
|
1000
|
1000
250300629 PROTRUDING STUD, M5 X 20 |
250300629 |
US $2.72 |
||
|
1100
|
1100
518328497 UPPER COLUMN |
518328497 |
US $19.92 |
||
|
1110
|
1110
207562044
Screw-hex.flange din.6921 s.grip
|
207562044 |
— | ||
|
1120
|
1120
233261414 Nut-flange elastic din.6926 |
233261414 |
US $18.40 |
||
|
1130
|
1130
207662544 Screw-hex.flange din.6921 |
207662544 |
US $20.50 |
||
|
1140
|
1140
207662044 Screw-hex.flange din.6921 |
207662044 |
US $65 |
||
|
1300
|
1300
518328745 REAR BUMPER |
518328745 |
US $103.99 |
||
|
1400
|
1400
293730047 Dard 8 mm *dart 8 mm |
293730047 |
US $2.06 |
||
|
1405
|
1405
293730060 BLACK DART 10 MM |
293730060 |
US $5.87 |
||
|
1700
|
1700
518328502 FRONT PROTECTOR |
518328502 |
US $16.76 |
||
|
1710
|
1710
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
1800>1800b
|
1800>1800b
520001543 REAR PROTECTOR |
520001543 |
US $7.33 |
||
|
1800a
|
1800a
708000759 STOPPER-RUBBER |
708000759 |
US $5.71 |
||
|
1800b
|
1800b
293830005 Butee *rubber stopper |
293830005 |
US $46.85 |
||
|
1820
|
1820
520001545 SUPPORT |
520001545 |
US $2.04 |
||
|
1830
|
1830
250000577 TORX-TRUSS PT K40 X 12 |
250000577 |
US $2.01 |
||
|
1840
|
1840
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
3000
|
3000
518329132 BLACK TOE-HOLD |
518329132 |
US $20.37 |
||
|
3010
|
3010
518329134 BLACK TOE-HOLD |
518329134 |
US $18.46 |
||
|
3020
|
3020
250000793 SCREW-HEX.FLANGE DIN.6921 NYLON PATCH |
250000793 |
US $2.72 |
||
|
3030
|
3030
207562054 FLANGED HEX. SCREW S.GRIP M6 X 20 |
207562054 |
US $2.72 |
||
