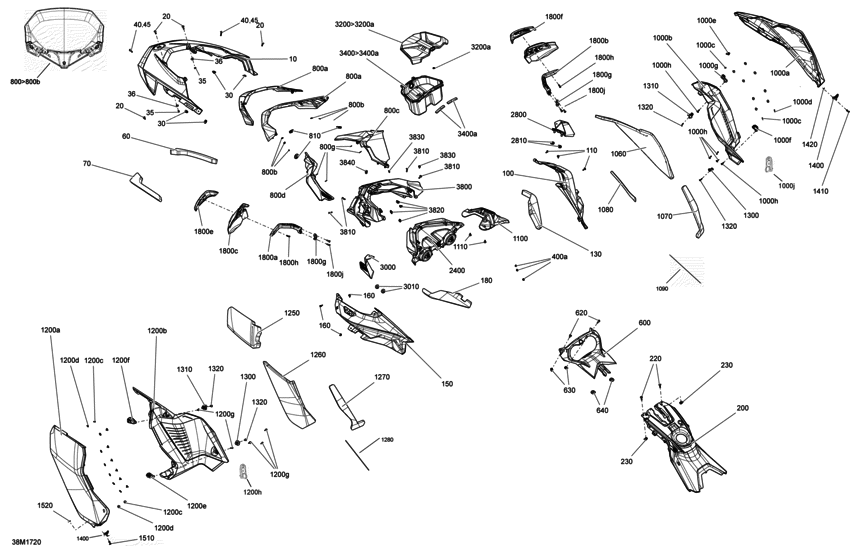

09- Hood - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10
|
10
517305744 HOOD - FRONT |
517305744 |
US $184.59 |
||
|
10
|
10
517306099 HOOD - FRONT |
517306099 |
US $184.59 |
||
|
10
|
10
517306269 HOOD - FRONT |
517306269 |
US $184.59 |
||
|
20
|
20
250000528 TORX-TRUSS M/S NYLON PATCH M5X |
250000528 |
US $13.60 |
||
|
30
|
30
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
35
|
35
233251494 Nut-flange elastic din.6926 |
233251494 |
US $13.60 |
||
|
36
|
36
250200040 Rondelle plate *flat washer |
250200040 |
US $7.29 |
||
|
40
|
40
250000587 TORX SCREW M5 X 26 |
250000587 |
US $5.71 |
||
|
45
|
45
250200166 WASHER |
250200166 |
US $2.72 |
||
|
60
|
60
517305763 MOUSSE CAPOT FOAM |
517305763 |
US $11.08 |
||
|
70
|
70
517305764 FOAM |
517305764 |
US $11.08 |
||
|
100
|
100
517306007 RH HOOD |
517306007 |
US $184.59 |
||
|
100
|
100
517306100 RH HOOD |
517306100 |
US $184.59 |
||
|
100
|
100
517306270 RH HOOD |
517306270 |
US $184.59 |
||
|
110
|
110
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
130
|
130
517306001 FOAM |
517306001 |
US $11.08 |
||
|
150
|
150
517306008 LH HOOD |
517306008 |
US $184.59 |
||
|
150
|
150
517306101 LH HOOD |
517306101 |
US $184.59 |
||
|
150
|
150
517306271 LH HOOD |
517306271 |
US $184.59 |
||
|
160
|
160
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
180
|
180
517306002 FOAM |
517306002 |
US $11.08 |
||
|
200
|
200
517305745 CONSOLE-REAR |
517305745 |
US $184.59 |
||
|
220
|
220
250000587 TORX SCREW M5 X 26 |
250000587 |
US $5.71 |
||
|
230
|
230
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
240
|
240
517304518 CONSOLE NUT |
517304518 |
US $13.45 |
||
|
400a
|
400a
275500241 Bouchon bouton *plug-cap fuel valve |
275500241 |
US $21.75 |
||
|
600
|
600
517305781 INDICATEUR SUPPORT |
517305781 |
US $33.61 |
||
|
620
|
620
250000587 TORX SCREW M5 X 26 |
250000587 |
US $5.71 |
||
|
630
|
630
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
640
|
640
705000321 Washer-oblong |
705000321 |
US $14.52 |
||
|
800>800b
|
800>800b
860201448 LOW WINDSHIELD KIT |
860201448 |
US $159.09 |
||
|
800a
|
800a
517305749 SUPPORT |
517305749 |
US $24.45 |
||
|
800b
|
800b
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
810
|
810
517303756 Rondelle *grommet |
517303756 |
US $5.05 |
||
|
1000a
|
1000a
517305860 RH PANEL |
517305860 |
US $189.69 |
||
|
1000a
|
1000a
517306087 RH PANEL |
517306087 |
US $189.69 |
||
|
1000a
|
1000a
517306272 RH PANEL |
517306272 |
US $189.69 |
||
|
1000b
|
1000b
517305861 RH PANEL TRIM |
517305861 |
US $159.09 |
||
|
1000c
|
1000c
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
1000d
|
1000d
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
1000e
|
1000e
517305109 PLAQUE *PLATE |
517305109 |
US $4.40 |
||
|
1000f
|
1000f
517305773 LATCH REAR RH |
517305773 |
US $16.08 |
||
|
1000g
|
1000g
517305979 LATCH |
517305979 |
US $13.45 |
||
|
1000h
|
1000h
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
1000j
|
1000j
517306311 HOOK - RIGHT |
517306311 |
US $12.75 |
||
|
1060
|
1060
517305767 FOAM |
517305767 |
US $38.71 |
||
|
1070
|
1070
517306116 FOAM |
517306116 |
US $9.96 |
||
|
1080
|
1080
517306262 RUBBER SHEET |
517306262 |
US $16.93 |
||
|
1090
|
1090
517306480 FOAM |
517306480 |
US $11.42 |
||
|
1100
|
1100
517305862 GRILL |
517305862 |
US $26.49 |
||
|
1110
|
1110
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
1200a
|
1200a
517305864 LH PANEL |
517305864 |
US $189.69 |
||
|
1200a
|
1200a
517306096 LH PANEL |
517306096 |
US $189.69 |
||
|
1200a
|
1200a
517306273 LH PANEL |
517306273 |
US $189.69 |
||
|
1200b
|
1200b
517305865 LH PANEL TRIM |
517305865 |
US $159.09 |
||
|
1200c
|
1200c
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
1200d
|
1200d
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
1200e
|
1200e
517305774 LATCH REAR LH |
517305774 |
US $16.08 |
||
|
1200f
|
1200f
517305980 LATCH FRONT LEFT |
517305980 |
US $13.45 |
||
|
1200g
|
1200g
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
1200h
|
1200h
517306312 HOOK - LEFT |
517306312 |
US $12.75 |
||
|
1250
|
1250
517305769 FOAM |
517305769 |
US $17.80 |
||
|
1260
|
1260
517305770 FOAM |
517305770 |
US $22.39 |
||
|
1270
|
1270
517305766 FOAM |
517305766 |
US $13.19 |
||
|
1280
|
1280
517306479 FOAM |
517306479 |
US $11.42 |
||
|
1300
|
1300
517305985 STUD - REAR |
517305985 |
US $16.95 |
||
|
1310
|
1310
517305988 STUD-FRONT |
517305988 |
US $16.83 |
||
|
1320
|
1320
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
1400
|
1400
517306310 LATCH - LEFT |
517306310 |
US $12.68 |
||
|
1400
|
1400
517306309 LATCH - RIGHT |
517306309 |
US $19.84 |
||
|
1410
|
1410
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
1420
|
1420
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
1510
|
1510
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
||
|
1520
|
1520
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
1800a
|
1800a
517305290 LH ARM |
517305290 |
US $27.27 |
||
|
1800b
|
1800b
517305293 RH ARM |
517305293 |
US $27.27 |
||
|
1800c
|
1800c
517305291 LH DEFLECTOR |
517305291 |
US $26.30 |
||
|
1800d
|
1800d
517305294 RH DEFLECTOR |
517305294 |
US $26.30 |
||
|
1800e
|
1800e
517305589 ENJOLIVEUR *CAP |
517305589 |
US $30.57 |
||
|
1800e
|
1800e
517305601 BLACK LH CAP |
517305601 |
US $30.57 |
||
|
1800e
|
1800e
517305930 ENJOLIVEUR *CAP |
517305930 |
US $30.57 |
||
|
1800f
|
1800f
517305588 ENJOLIVEUR *CAP |
517305588 |
US $30.57 |
||
|
1800f
|
1800f
517305602 BLACK RH CAP |
517305602 |
US $30.57 |
||
|
1800f
|
1800f
517305931 ENJOLIVEUR *CAP |
517305931 |
US $30.57 |
||
|
1800g
|
1800g
517305296 BRIDE *BRIDE |
517305296 |
US $6.15 |
||
|
1800h
|
1800h
250000760 TORX-SCREW TRUSS HEAD PT.K50 X 20 |
250000760 |
US $2.72 |
||
|
1800j
|
1800j
250000724 TORX SCREW M5 X 20 |
250000724 |
US $21.80 |
||
|
2400
|
2400
517305752 HEADLAMP |
517305752 |
US $469.37 |
||
|
2400a
|
2400a
415130081 HALOGEN BULB, 60/55 W, 12 V |
415130081 |
US $36.69 |
||
|
2800
|
2800
517305776 DEFLECTOR-AIR RH |
517305776 |
US $28.51 |
||
|
2810
|
2810
517302841 Rondelle *grommet |
517302841 |
US $9.67 |
||
|
3000
|
3000
517305777 DEFLECTOR-AIR LH |
517305777 |
US $28.51 |
||
|
3010
|
3010
517302841 Rondelle *grommet |
517302841 |
US $9.67 |
||
|
3200>3200a
|
3200>3200a
517305871 COVER ASS Y |
517305871 |
US $20.11 |
||
|
3200a
|
3200a
732610072 Nut-push |
732610072 |
US $28.60 |
||
|
3400>3400a
|
3400>3400a
517306058 TRUNK ASSEMBLY |
517306058 |
US $18.33 |
||
|
3400a
|
3400a
517305157 SEAL JOINT |
517305157 |
US $2.18 |
||
|
3800
|
3800
517305746 FAIRING - HEAD-LAMP |
517305746 |
US $71.18 |
||
|
3810
|
3810
250000528 TORX-TRUSS M/S NYLON PATCH M5X |
250000528 |
US $13.60 |
||
|
3820
|
3820
250000079 Extruded panel nut m5 x 0.8 |
250000079 |
US $38.90 |
||
|
3830
|
3830
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
3840
|
3840
293150089
Plastique rivet tuflok
|
293150089 |
— | ||
| replacement | |||||
|
3840
|
3840
293150230 TUFLOK PLASTIC RIVET |
293150230 |
US $1.90 |
||
