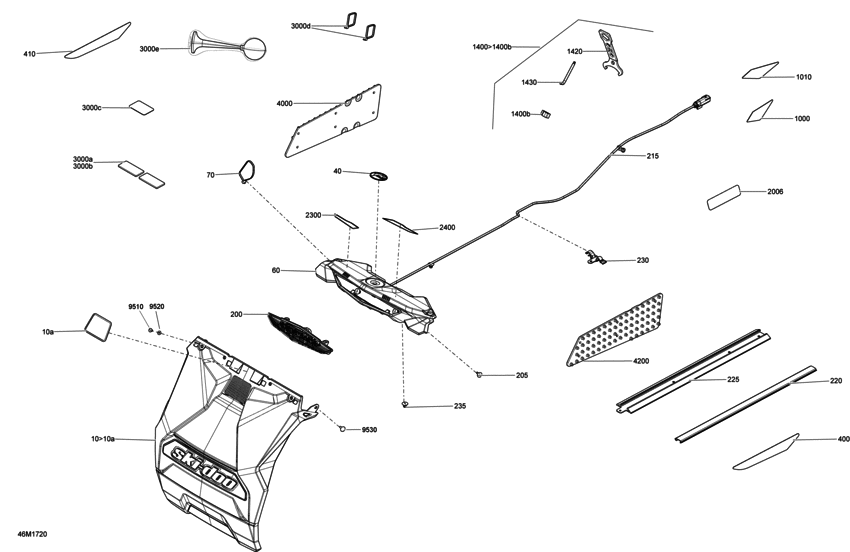

09- Utilities - All Models Diagram Bombardier MX Z
- Year
- 2017
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10>10a
|
10>10a
520001640 SNOW GUARD |
520001640 |
US $128.49 |
||
|
10a
|
10a
516007645 WARNING DECAL, TRACK |
516007645 |
US $0.02 |
||
|
40
|
40
516006887 BRP LOGO, 48 MM |
516006887 |
US $15.27 |
||
|
60
|
60
520001487 LIGHT FAIRING |
520001487 |
US $23.41 |
||
|
70
|
70
293750047 Tie rap 533mm *tie-rap 533mm |
293750047 |
US $54.40 |
||
|
200
|
200
520001143 REAR LIGHT |
520001143 |
US $109.21 |
||
|
205
|
205
250000725 SCREW PLASTITE TYPE K-40 BZN M |
250000725 |
US $9.02 |
||
|
215
|
215
515178264 WIRING HARNESS |
515178264 |
US $21.39 |
||
|
220
|
220
520001719 RADIATOR TRIM |
520001719 |
US $19.92 |
||
|
225
|
225
520001703 WIRE PROTECTOR |
520001703 |
US $16.76 |
||
|
230
|
230
520001722 CAP |
520001722 |
US $8.62 |
||
|
235
|
235
293150104 Pop rivet 3/16 |
293150104 |
US $34 |
||
|
400
|
400
520001491 REAR RIGHT REFLECTOR |
520001491 |
US $10.47 |
||
|
400
|
400
520001698 YELLOW REAR RIGHT REFLECTOR |
520001698 |
US $15.73 |
||
|
410
|
410
520001492 REAR LEFT REFLECTEUR |
520001492 |
US $10.47 |
||
|
410
|
410
520001699 YELLOW REAR LEFT REFLECTOR |
520001699 |
US $15.73 |
||
|
1000
|
1000
520001493 FRONT RIGHT REFLECTOR |
520001493 |
US $7.31 |
||
|
1010
|
1010
520001494 FRONT LEFT REFLECTOR |
520001494 |
US $7.31 |
||
|
1400>1430
|
1400>1430
520001592 TOOLS KIT |
520001592 |
US $54.03 |
||
|
1400a
|
1400a
412500200 Corde demarreur*rope-starter (25 m)) |
412500200 |
US $121.50 |
||
|
1400b
|
1400b
529000060 STARTER GRIP |
529000060 |
US $11 |
||
|
1420
|
1420
XXX
Not Sold
|
XXX |
— | ||
|
1430
|
1430
XXX
Not Sold
|
XXX |
— | ||
|
2006
|
2006
516006804 CE DECAL. |
516006804 |
US $9.13 |
||
|
2300
|
2300
516006891 SAFETY LABEL |
516006891 |
US $0.02 |
||
|
2400
|
2400
516006892 SAFETY LABEL |
516006892 |
US $0.02 |
||
|
3000a
|
3000a
520000271 Reflecteur amb.*reflector-amber |
520000271 |
US $16.76 |
||
|
3000b
|
3000b
415037900 Reflecteur *reflector |
415037900 |
US $18.85 |
||
|
3000c
|
3000c
520000871 REFLECTOR SUPPORT |
520000871 |
US $183.57 |
||
|
3000d
|
3000d
293750018 Tie rap 371mm *tie-rap 371mm |
293750018 |
US $36.50 |
||
|
3000e
|
3000e
549011291 Avertisseur *horn |
549011291 |
US $31.59 |
||
|
4000
|
4000
860200164 Plaque adherenc*grip plate |
860200164 |
US $42.81 |
||
|
4200
|
4200
860200164 Plaque adherenc*grip plate |
860200164 |
US $42.81 |
||
|
9510
|
9510
293150108 Rivet-pop 3/16 *pop rivet 3/16 |
293150108 |
US $1.53 |
||
|
9520
|
9520
517124300 Rondelle *washer |
517124300 |
US $2.70 |
||
|
9530
|
9530
293150100 Rivet-pop 3/16 *pop rivet 3/16 |
293150100 |
US $74 |
